SICK MCS200HW Service Manual

123
8024638/AE00/V1-0/2019-09| SICK S E R V I C E M A N U A L | MCS200HW
Subject to change without notice
REPAIRS 5
4 Loosen the fastening screws of the heating garland:
▸ Cable conduit fastening clip with a 2.5 Allen key.
▸ Thermostatic switch fastening screw with a 2.5 mm Allen key.
▸ Ground fastening screw with a Phillips screwdriver.
5 Remove the heating garland.

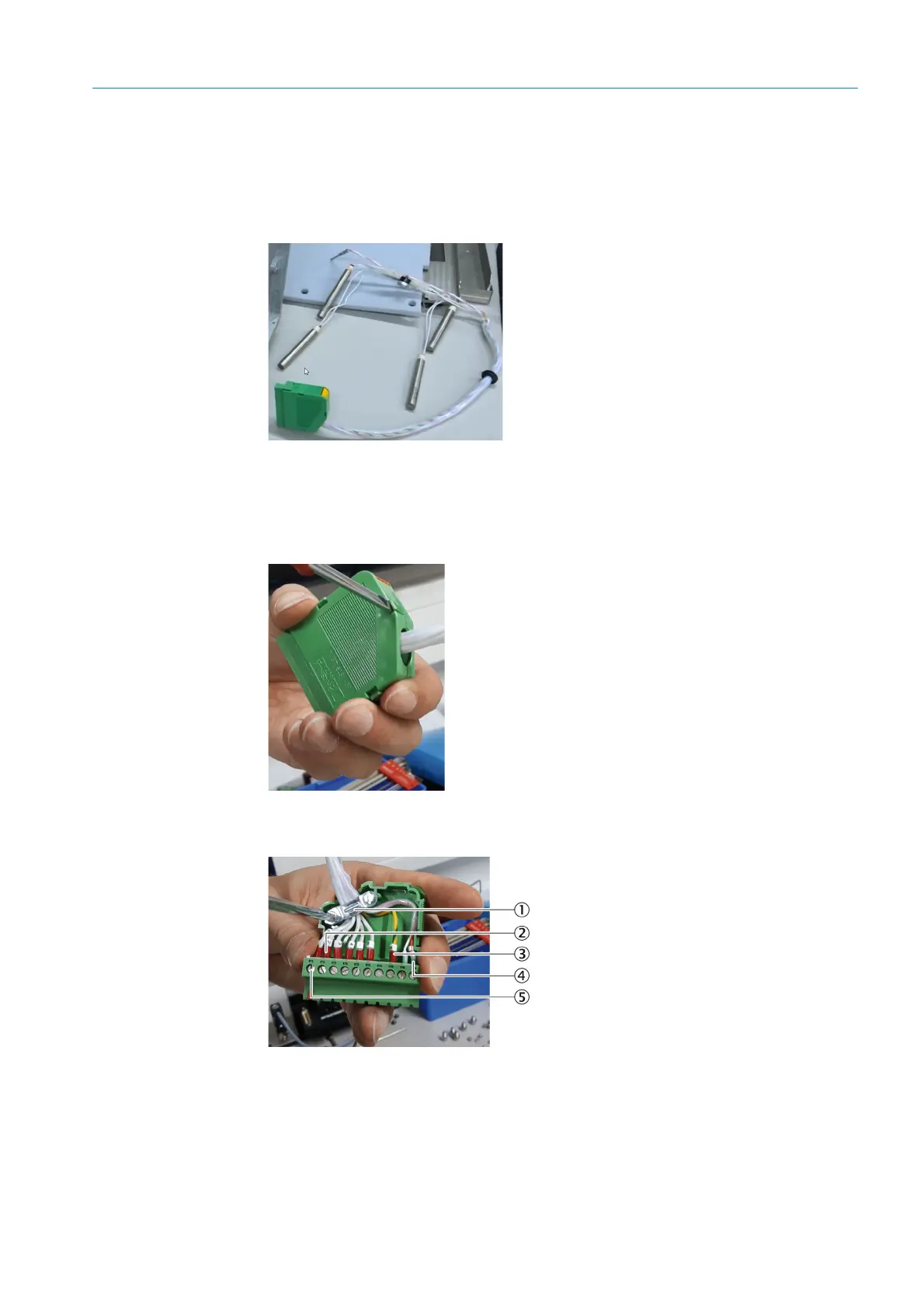

Fig. 191: Heating garland
6 Remove heating cartridges from the heating garland:
1 Open the contact plug:
▸ Carefully lever open the clamps of the contact plug with a slotted screwdriver
(3
pieces).
Fig. 192: Opening the contact plug
▸ Loosen the screws of the fastening clip inside with a slotted screwdriver (2 pieces).
Fig. 193: Contact plug, assignment (example)
1Fastening clip
2 Leads for thermostatic switches (2) and heating cartridges (4)
3Grounding
