5 REPAIRS

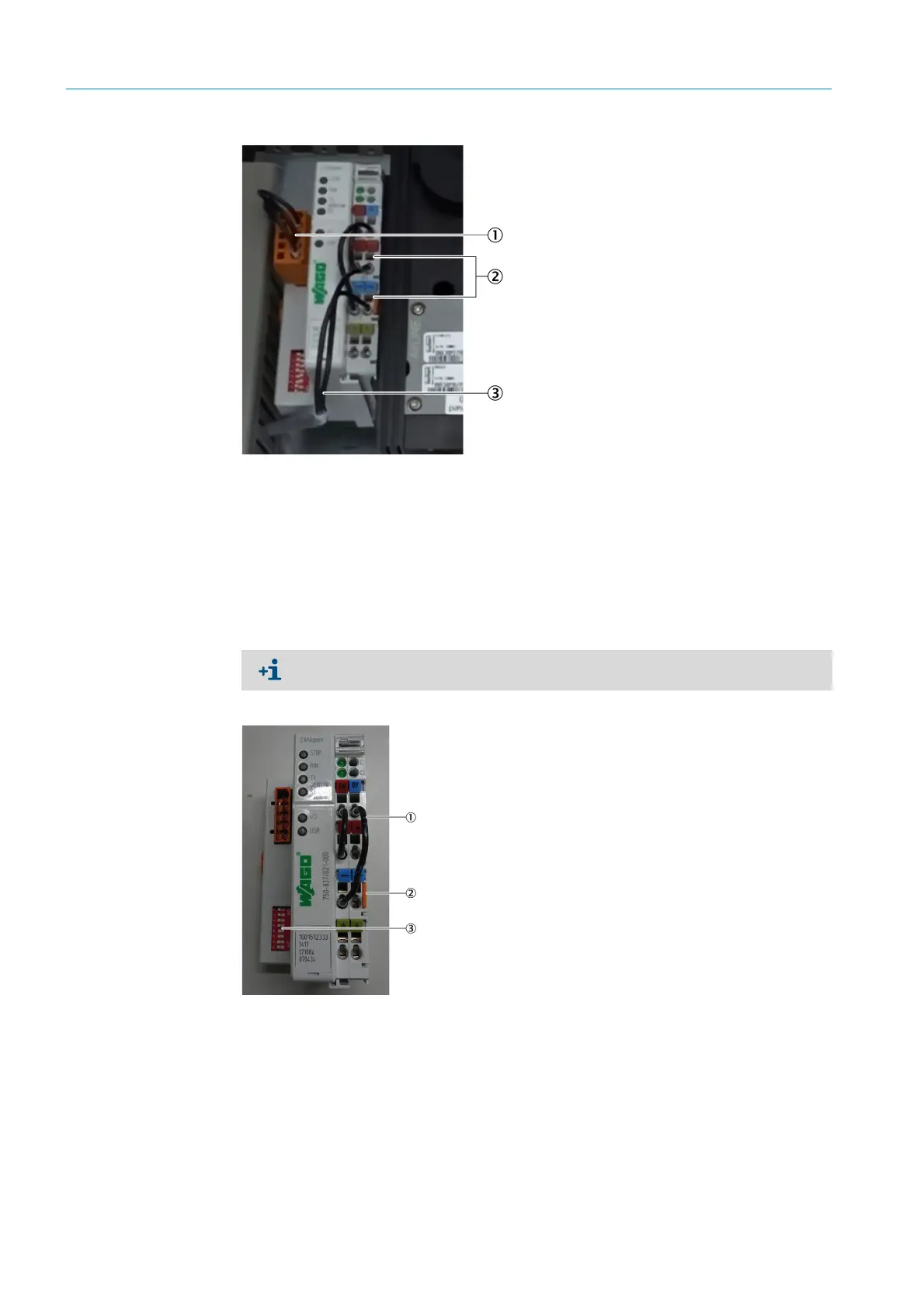

Fig. 67: CAN node
3 Disconnect the power supply:
1 Press with a screwdriver into the opening next to it.
2 Disconnect the cable.
4 Disconnect the leads.
5 Pull the orange lever to pull out the CAN bus.
Fig. 68: CAN node, detail
6 Check the switch on the new CAN node. Use the settings of the old CAN node.
1Bus cable
2Openings
3 Power supply
Document the assignment of the leads at the CAN node before disconnecting, e.g. with
a photo.
1Leads
2Orange lever
3Switch
