SICK MCS200HW Service Manual

64
8024638/AE00/V1-0/2019-09| SICKSERVICE MANUAL | MCS200HW
Subject to change without notice
5 REPAIRS
2 Remove the 24V power supply cover.

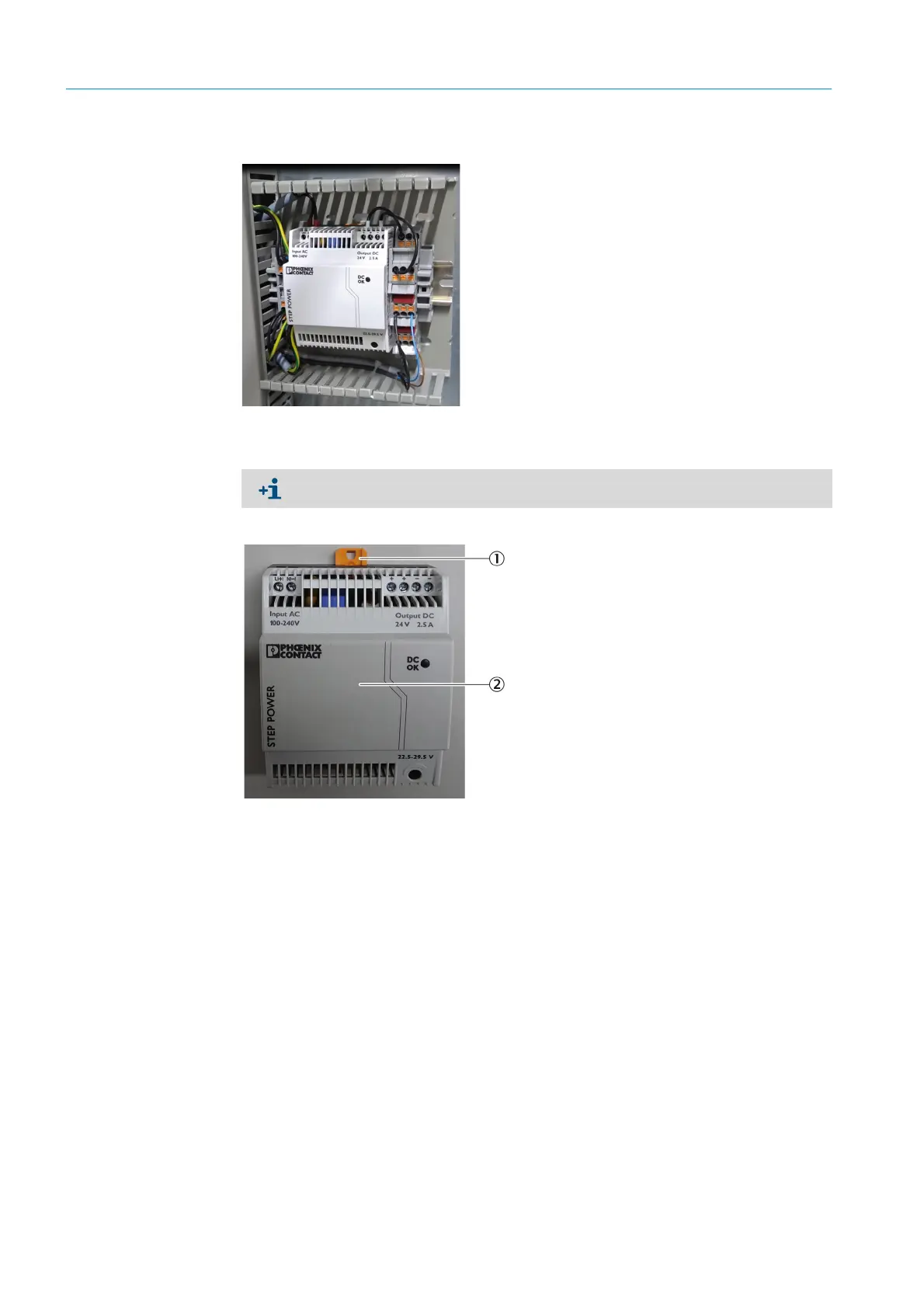

Fig. 80: 24V power supply unit, open
3 Unscrew the leads.
4 Pull out the top and bottom orange brackets.
Fig. 81: 24V power supply unit, removed
5 Remove the 24V power supply unit.
6 Insert and fasten the new power supply unit.
7 Reinsert the leads and screw tight.
8 Close the cover.
9 Connect the MCS200HW power supply.
Document the position of the leads before removing them, e.g. with a photo.
1Orange bracket, top
2 24V power supply unit
