System Components
100 SICAM RTUs, SICAM AK 3 User Manual
Edition 07.2016, DC2-028-2.03
2.4 Protocol Elements
The hardware of the protocol elements, namely serial interface modules (SIM), can be in-
stalled on the basic system element. There protocol element itself have neither a front panel
nor LEDs to display status and functions. Therefore they use the LEDs and front panel of the
basic system elements. The meaning of these LED displays is described there.

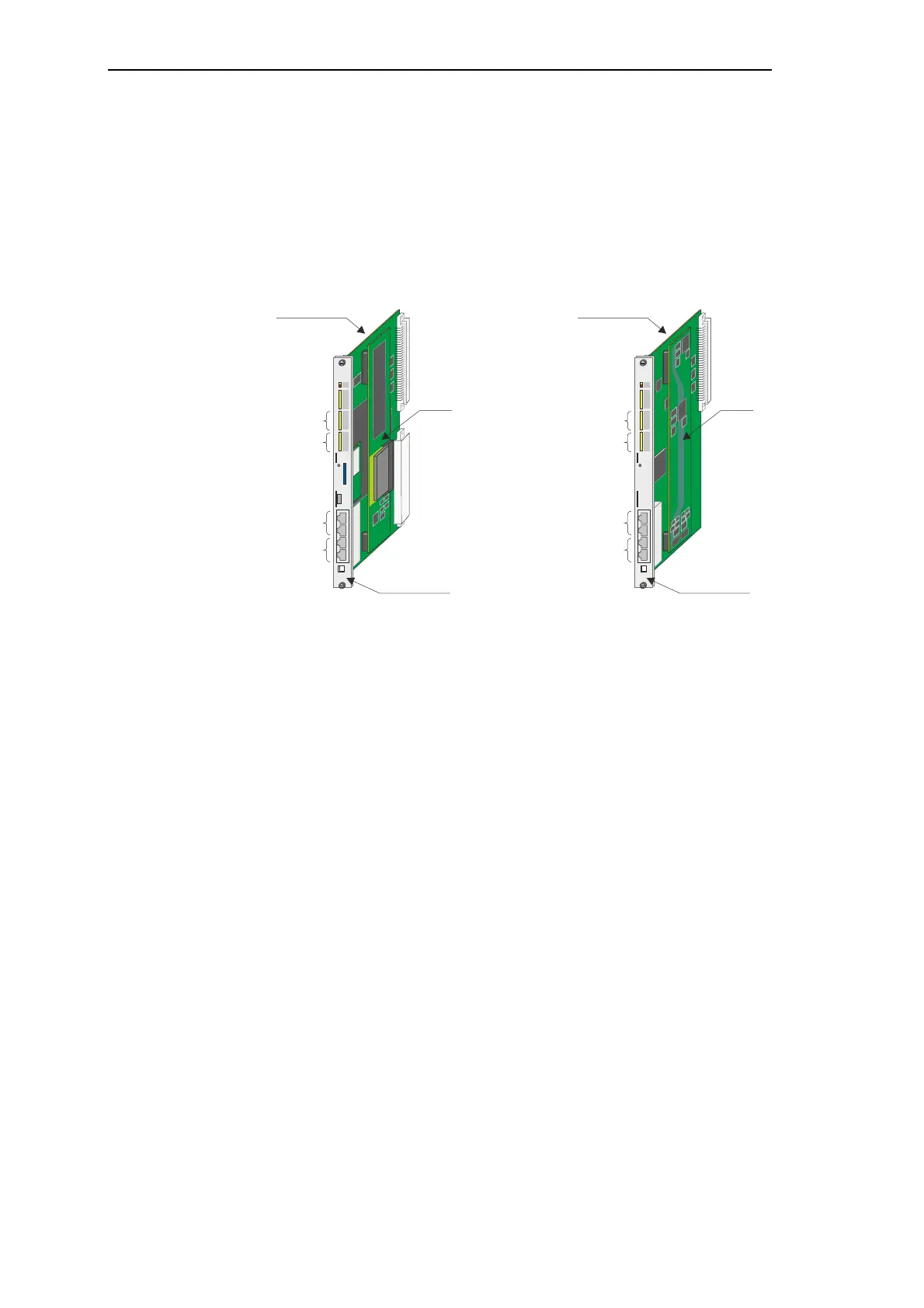

CP-2016
SIM
SIM
LEDs for local PRE
Front panel
CP-2016
LEDs for SIM
Interfaces for local PRE
Interfaces for SIM
Front panel
CP-2019
LEDs for local PRE
LEDs for SIM
Interfaces for local PRE
Interfaces for SIM
