Siemens SICAM RTU User Manual

System Components
SICAM RTUs, SICAM AK 3 User Manual 113
DC2-028-2.03, Edition 07.2016

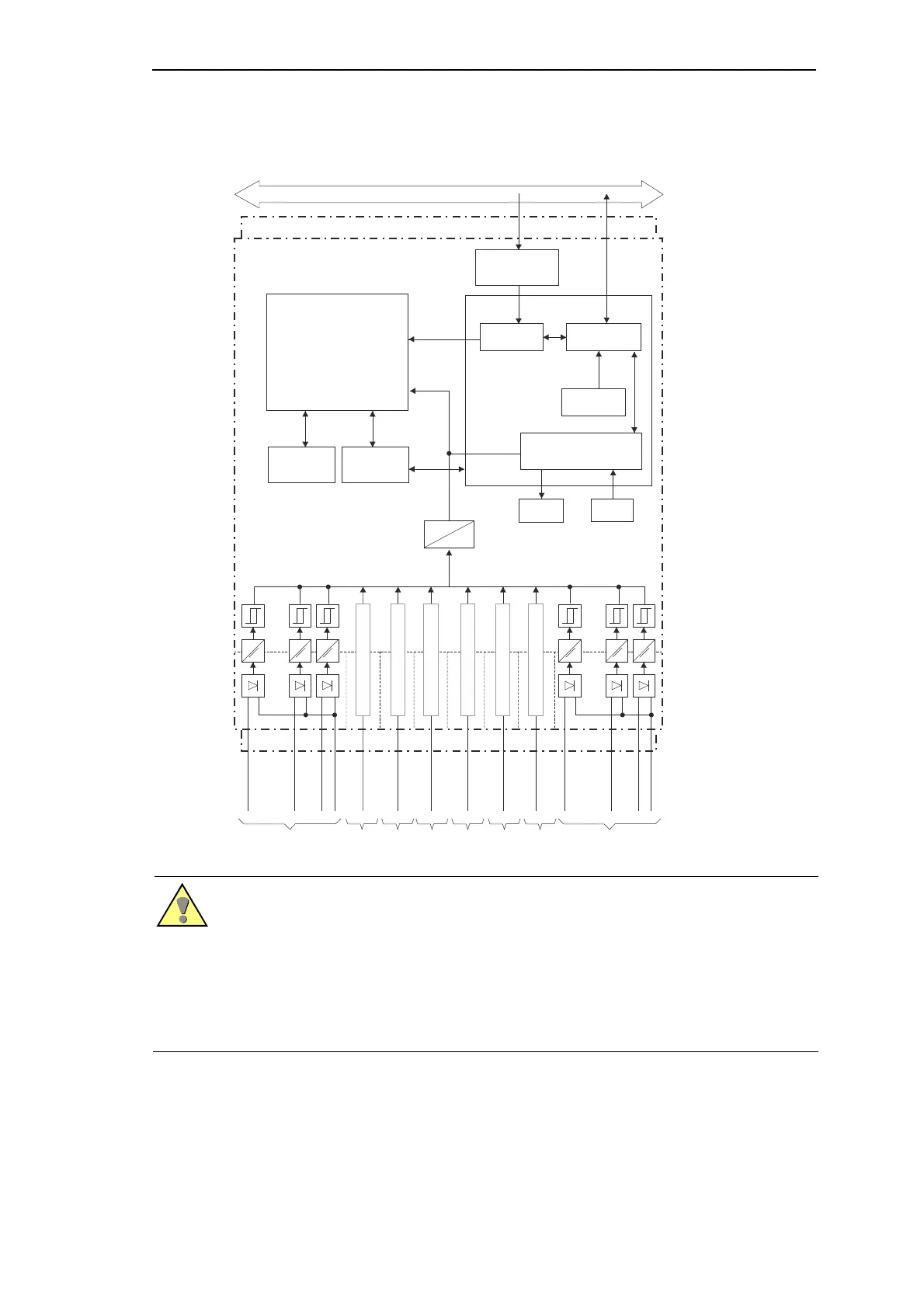

2.5.2.2 Block Diagram
Warning
An insulation plate must be installed left and right of the modules DI-2114 and DI-2115.
One insulation plate is included to these boards. Further can be ordered with following number:
Insulation plate double-Euro format T12-001 / 6MF13010CA010AA0
Insulation plate holder ................... TC2-099 / (4 pieces per insulation plate) 6MF13133CA000AA0
There is no reinforced isolation between the peripheral circuits. Therefore, it is not allowed to protect each
circuit within one board separately using various fuses.
AX peripheral bus
X99
IN_D00
galvanical insulation
Group 0
IN_D07 PM_0 COM_0 IN_D56
Group 7
IN_D63 PM_7 COM_7
Gr. 1
.....
Gr. 6
Gr. 2
Gr. 3
Gr. 4
Gr. 5
..... ..... ..... ..... .....
X100
Blackfin CPU
FPGA
S
Flash
LED
Power Supply
+ Monitor
+Power-up reset
AxPE slave
PBA
Reset
controller
I/O controller
HW
configuration
RESET
P
SDRAM
