Installation
SICAM RTUs, SICAM AK 3 User Manual 37
DC2-028-2.03, Edition 07.2016

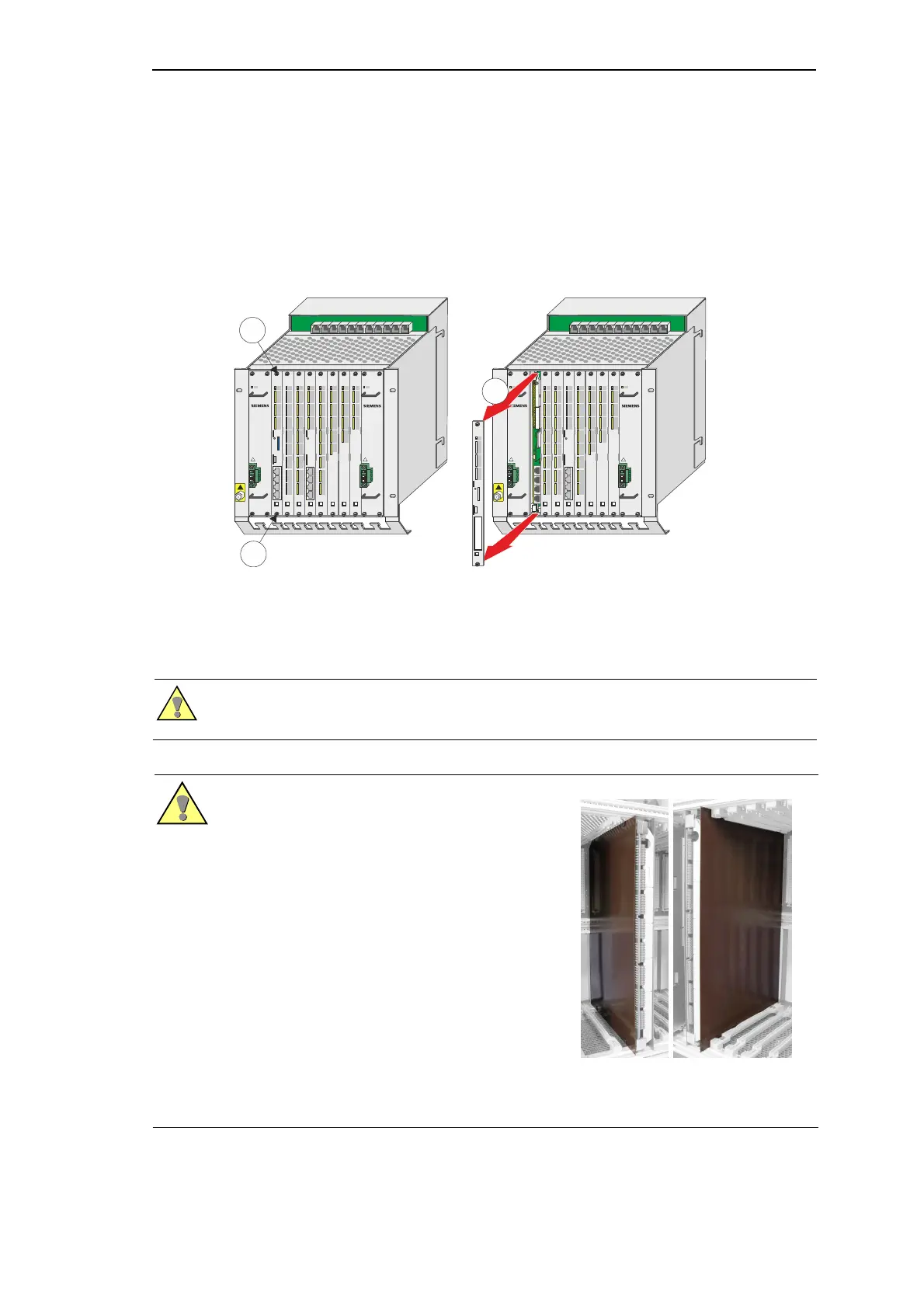

1.3.1.2 Removing Front Panel
Proceed as follows:
• Open the screws • of the front panel which you want to remove.
• Take hold of the front panel at the screws and remove it ‚.
1.3.2 Installation
Caution
Before the installation of a module the peripheral cable (CM-2890) must already be fitted.
Warning
Left and right of the boards DI-2114, DI-2115 and DO-2211
an insulation plate must be installed.
One insulation plate is included to these boards. Further can
be ordered with following number:
Insulation plate, double euro format T12-001
6MF13010CA010AA0
Shielding plate holder.................... TC2-099
(4 pcs. per insulation) 6MF13133CA000AA0
There is no reinforced isolation between the peripheral circuits. Therefore, it is not allowed to protect each
circuit within one board separately using various fuses.
The installation of modules is carried by hand without any tools. Proceed as follows:
SIC AM AK
PS- 26 3x CP-2016 DI-2 110 DI -2 110 CP-2019 DO -22 10 AI- 23 01 AI-2300
SICAM AK
PS - 26 3xDI- 2 110
1
1
SICAM AK
PS-263x
DI- 2110
DI- 2110
CP -2019
DO- 22 10
AI-2301
AI-2300
SIC AM AK
PS -26 3x
DI- 2110
CP -2016
2
