Automation Units and Automation Networks
248 SICAM RTUs, SICAM AK 3 User Manual
Edition 07.2016, DC2-028-2.03

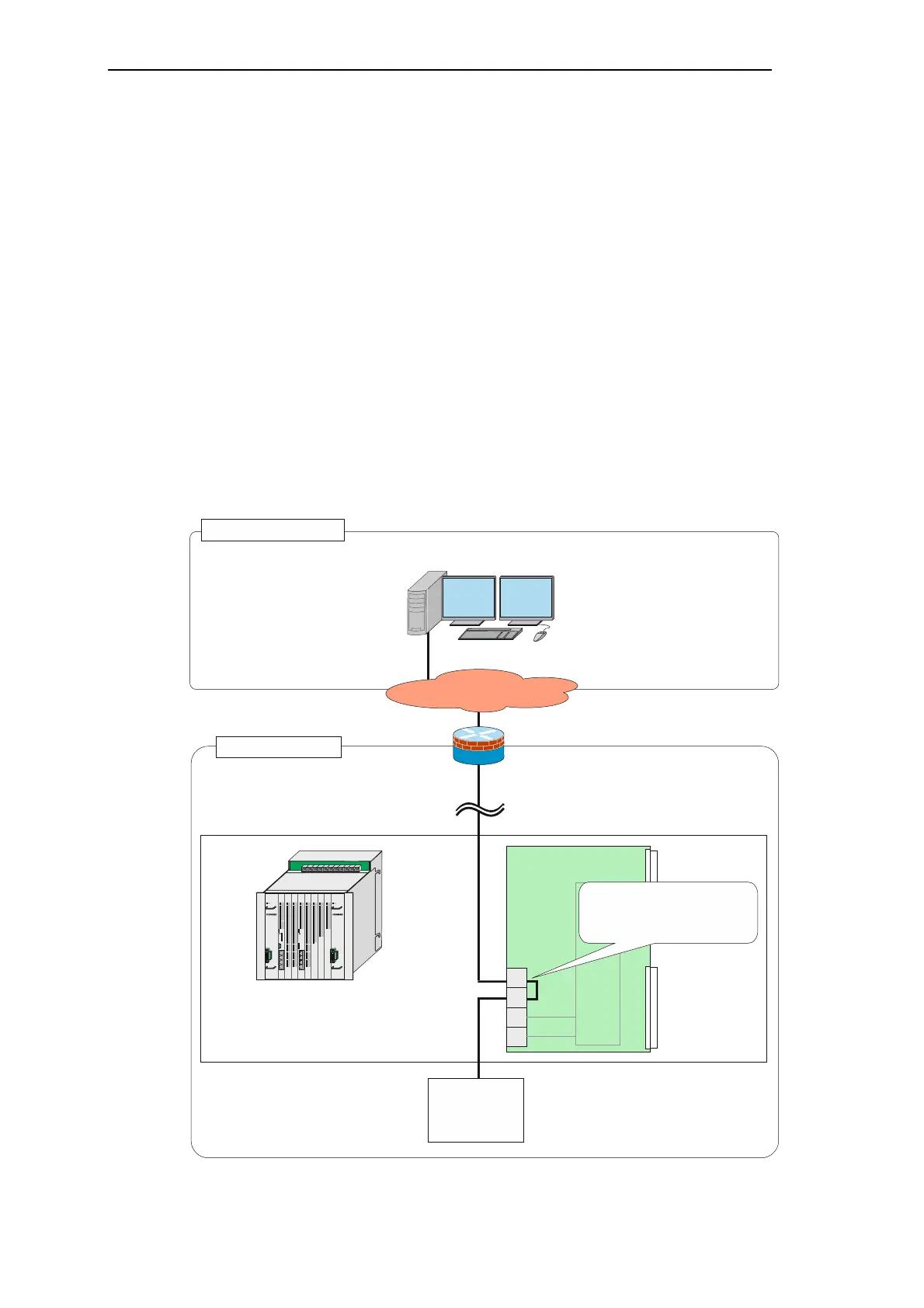

6.2.4 SICAM AK 3 as Telecontrol Substation with integrated Switch for
External System connection
• Communication with the control system via IEC 60870-104
(Ethernet-Interface, X0 or X1, can be set with parameter)
• Communication with the external system via IEC 60870-104
(Ethernet-Interface, X0 or X1, can be set with parameter)
• SICAM AK 3 is used as switch between control system and external system
Features of the Ethernet Ports:
• 1 IP address
• 1 subnet mask
• 1 default router
• Parameter Network settings | IP address | Mode of Ethernet ports
─ 1 IP address (connected ports in switch mode)
Substation Zone
Office Zone
Control Center Zone
Router
SICAM AK 3
SICAM AK SIC AM AK
X3
X2
X1
X0
SM-25xx
Control Center
IP-address: 172.16.0.4
Subnet mask: 255.255.0.0
Default router: 172.16.0.254
PRE0 / ET24
IP-address: 172.16.0.3
Subnet mask: 255.255.0.0
Default router: 172.16.0.254
IP-address: 172.17.0.22
Subnet mask: 255.255.0.0
IP-address: 172.16.0.254
External
device
CP-2016 or CP-2019
