Installation
SICAM RTUs, SICAM AK 3 User Manual 73
DC2-028-2.03, Edition 07.2016

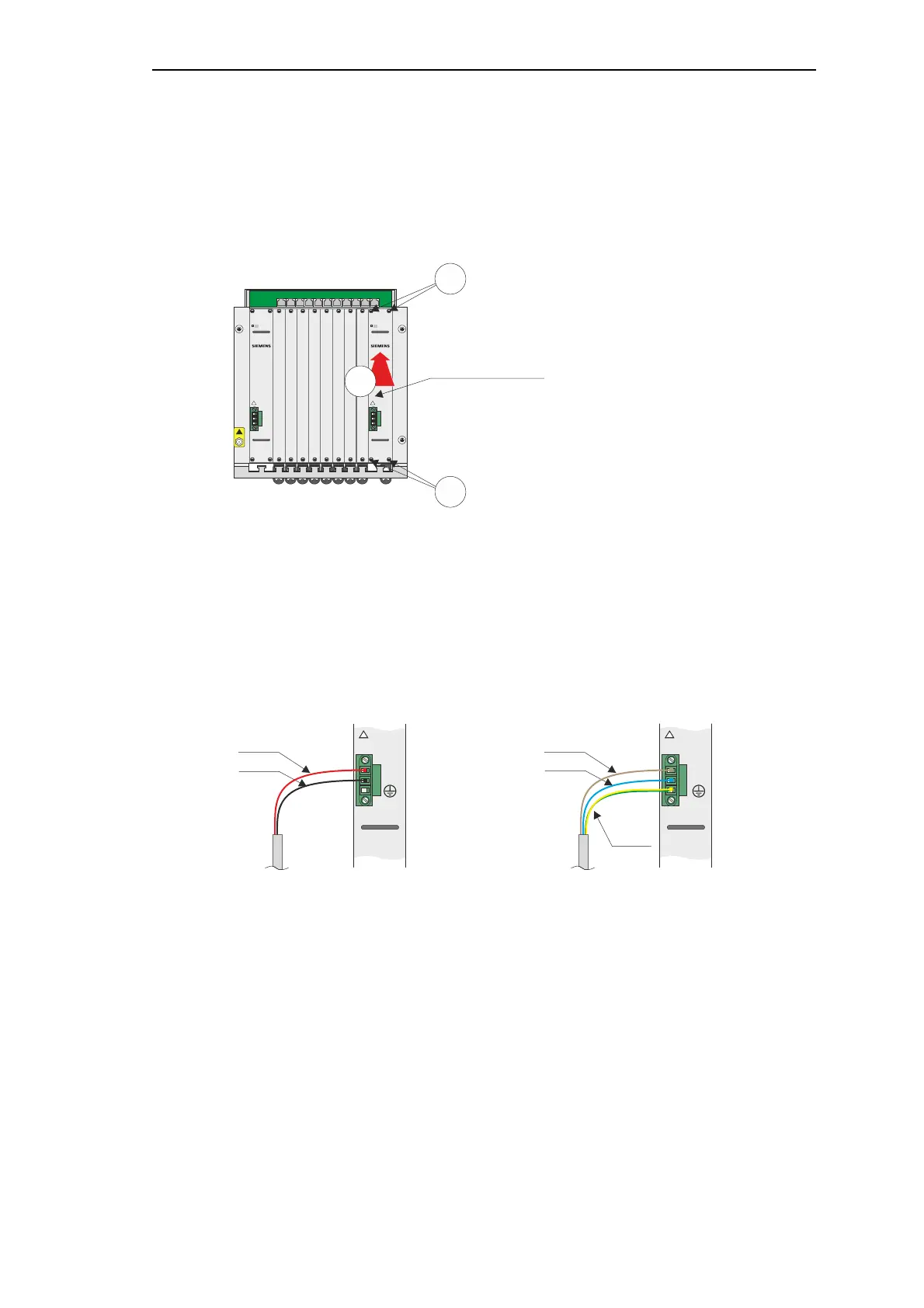

1.7.3.2 Installing Second Power Supply
The second power supply is only for redundancy and not for increasing the power. It is in-
stalled in the right slot. It needs to be pushed into the compartment • and fastened with
screws ‚. Then the wiring can be carried out. Please refer also to section 1.7.4, Wiring of the
Power Supply
1.7.4 Wiring of the Power Supply
The supply can be carried out with single leads of the type H07V-K (2.5) or a cable of the type
H05VV-F3G (2.5).
SICAM AK
PS-263x
SICAM AK
PS-263x
1
nd
+
-
X1
schwarz
Stromversorgung
(24 - 60 VDC)
rot
braun
gelb/
grün
blau
