Automation Units and Automation Networks
238 SICAM RTUs, SICAM AK 3 User Manual
Edition 07.2016, DC2-028-2.03
6.1.1.3 SICAM AK 3 - SICAM TM PE, optically connected

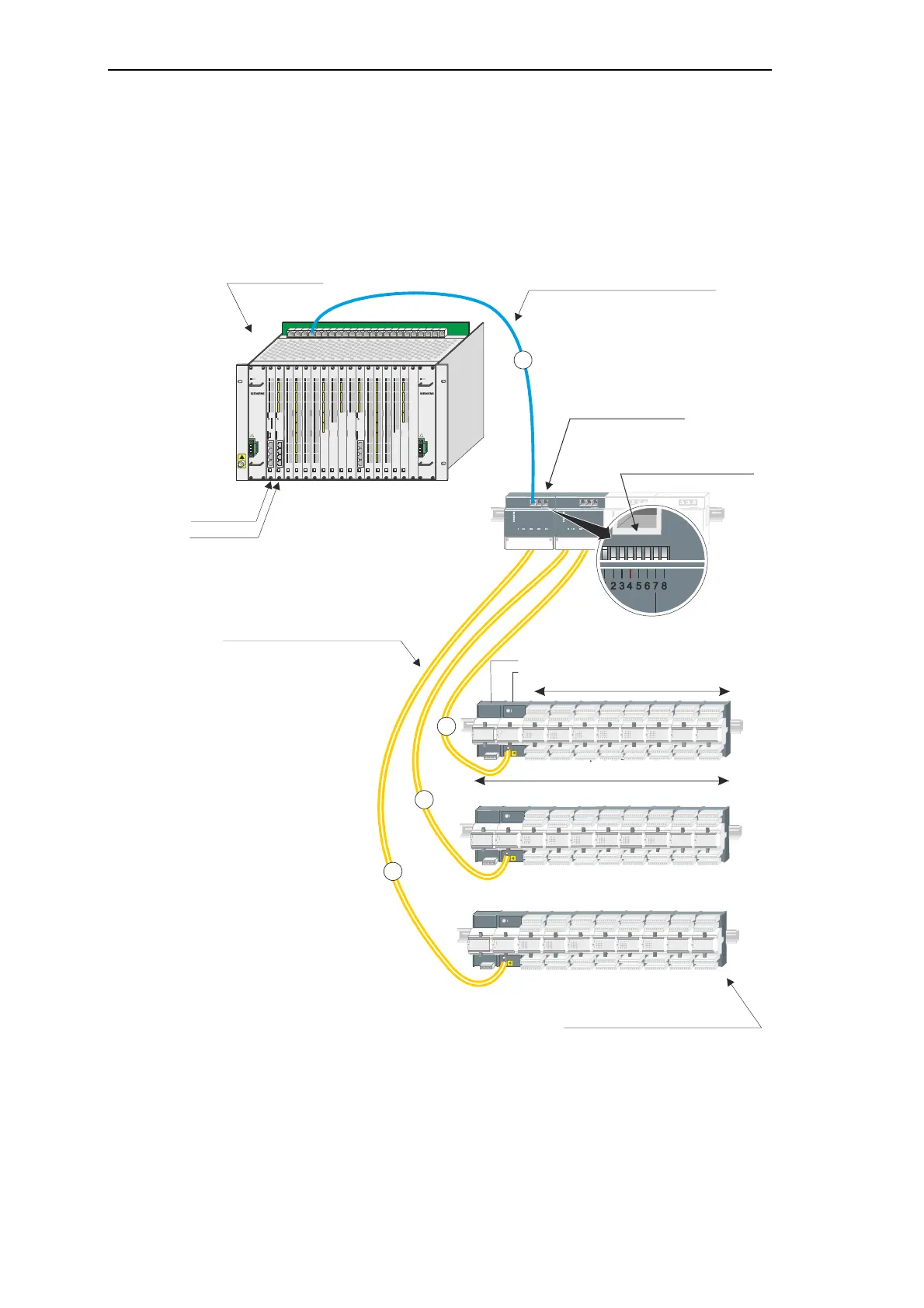

Basic unit SICAM AK 3 to SICAM TM peripheral elements, optically connected
To one basic system element CP-2016/CPCX26 or CP-2019/PCCX26 one bus line with
max. 16 peripheral elements can be connected.
Depending on the slot of the basic system element the socket connector for the electrical
Ax 1703 peripheral bus has to be selected.
(for example: Slot 1 ð socket connector X4/C1-Ax)
In configurations with optical remoted SICAM TM peripheral elements, PE 1000µm-fiber
cables cannot be used!
SICAM AK
PS-263x
SIC AM AK
PS-263x
CP-2016 DI-2110DO-2210 AI-2300CP-2019
AI-2301
DI-2110 DI-2110 DO-2210 AI-2300CP-2019
AI-2301AI-2301
D I- 2110DI-2110 DI-2110
CP-2016
CP-2019
1 peripheral element
1 Peripherieelement
PE-6411
PS-663x
2
2
2
S
I
C
A
M
1
7
0
3
S
I
C
A
M
1
7
0
3
ON
OFF
S1
1
Settings on the
configuration switch S1
Bus Interface Modules
CM-0842
Ax 1703 peripheral bus (optical)
16 Mbps
FO, length up to 200 m
I/O modules (max. 8)
1 peripheral element
Ax 1703 peripheral bus
(electrical)
16 Mbps
patch-cable, length up to 3 m
SICAM AK 3
base unit
SICAM TM peripheral elements
(max. 16)
