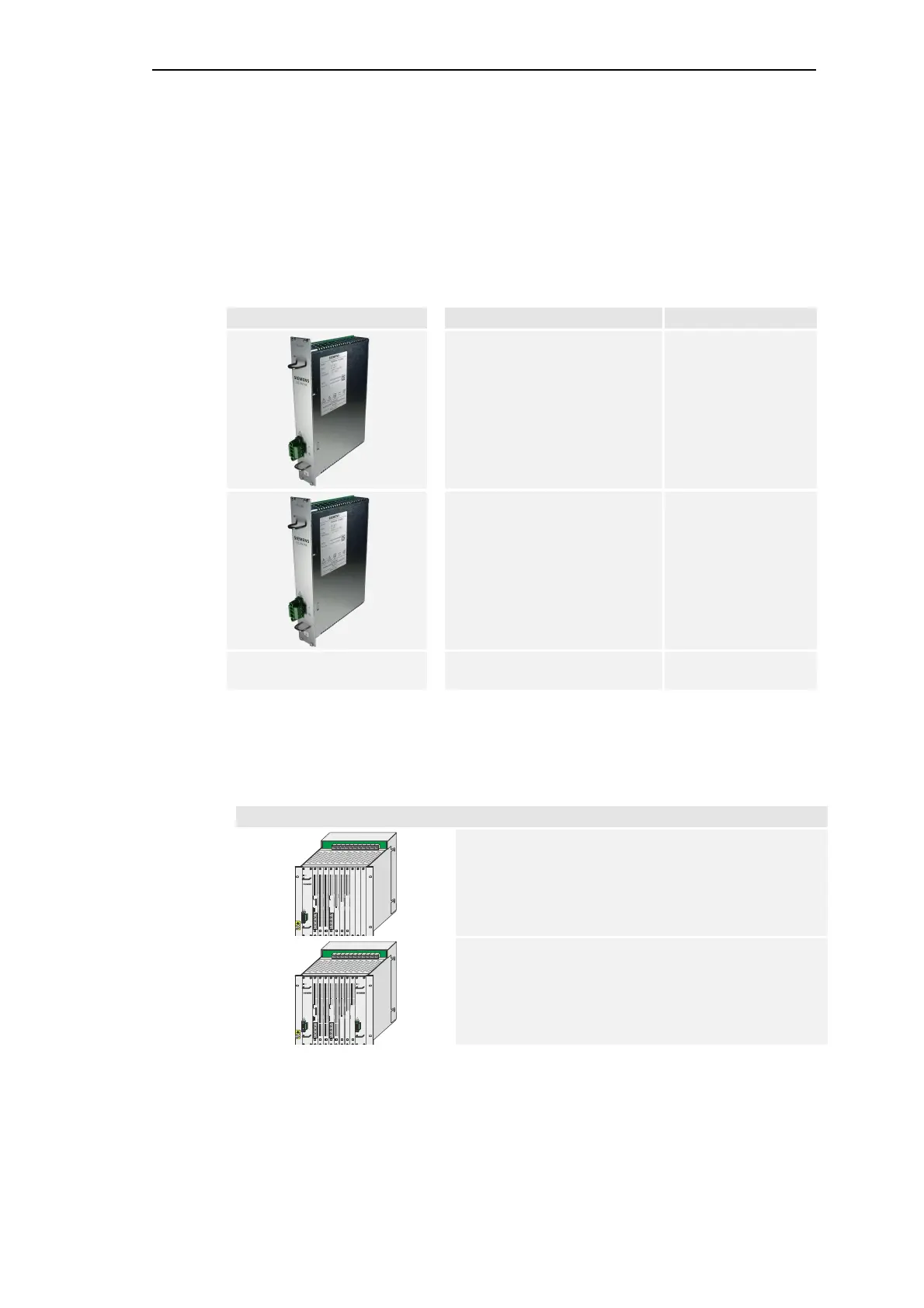

Installation
SICAM RTUs, SICAM AK 3 User Manual 71
DC2-028-2.03, Edition 07.2016
1.7 Power Supply
1.7.1 General
SICAM AK 3 can be supplied with the power supplies PS-2630 and PS-2632. Depending on
requirements a differing number are used.
Designation Item-Number/MLFB
PS-2630 Power supply
24-60 VDC AK 3
GC2-630
6MF11130CG300AA0
PS-2632 Power supply 110-220 VDC,
230 VAC AK 3
GC2-632
6MF11130CG320AA0
(H05 VV-F 3G 2.5 flexible lead) TF5-002
6MF13140FA020AA0
1.7.2 Possible Configurations
Board Rack CM-2844
In the basic configuration the board rack is fitted with one power
supply.
This is installed in the left slot.
A second power supply can be used for redundancy.
This is installed in the right slot.
SICAM AK
PS-263x CP-2016 DI-2110 DI-2110 CP-2019 DO-2210 AI-2301
AI-2300
SICAM AK
PS-263x CP-2016 DI-2110 DI-2110 CP-2019 DO-2210
AI-2301
AI-2300
SICAM AK
PS-263x
DI-2110
