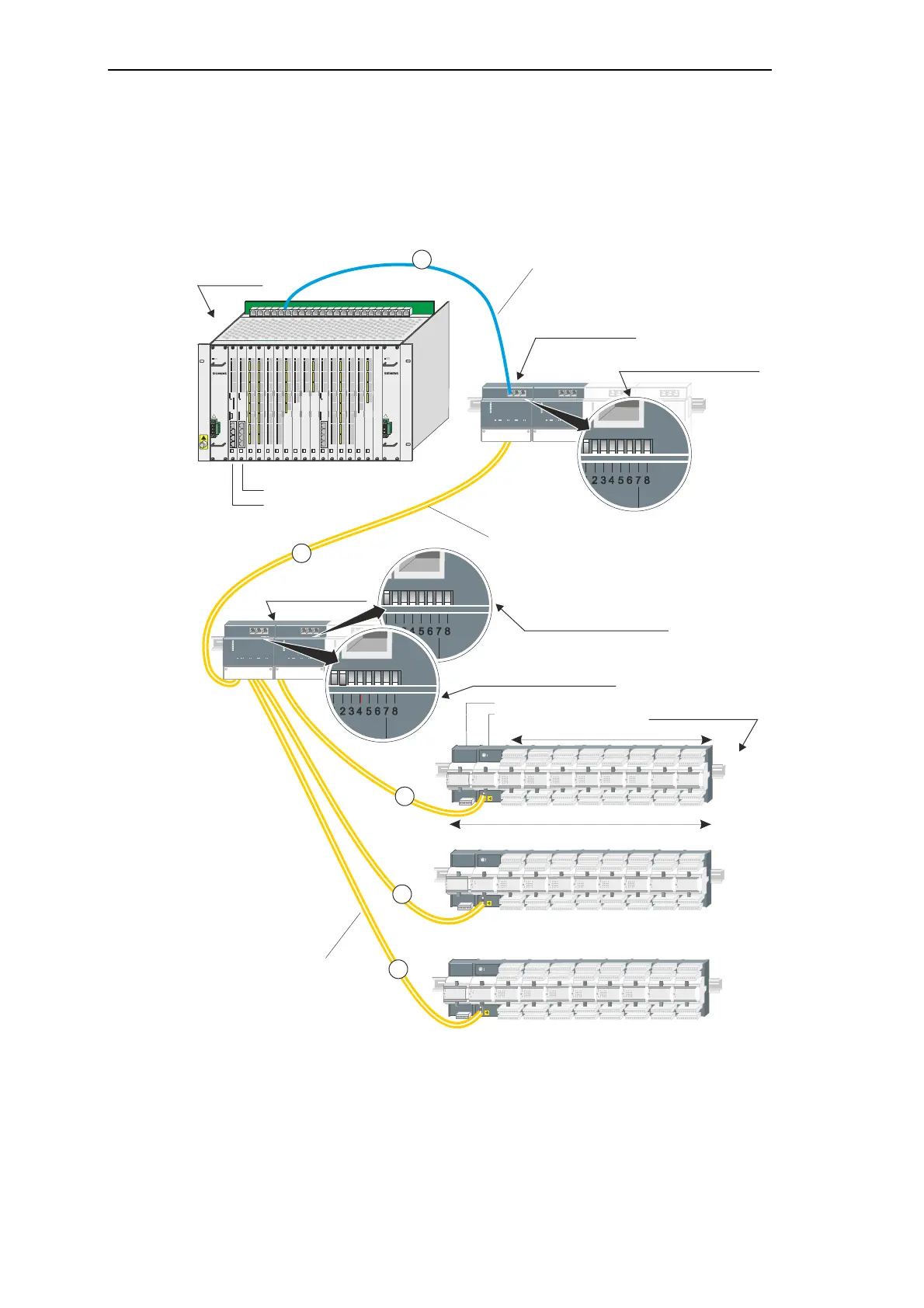

6.1.1.4 SICAM AK 3 - SICAM TM PE, optical, multi-hierarchical
Basic unit SICAM AK 3 to SICAM TM peripheral elements, optically, multi-hierarchical con-
nected
• To one basic system element CP-2016/CPCX26 or CP-2019/PCCX26 one bus line with
max. 16 peripheral elements can be connected.
• Depending on the slot of the basic system element the socket connector for the electrical
Ax 1703 peripheral bus has to be selected.
(for example: Slot 1 ð socket connector X4/C1-Ax)
• In configurations with optical remoted SICAM TM peripheral elements, PE 1000µm-fiber
cables cannot be used!
SICAM AK
PS-263x
SICAM AK
PS-263x
CP-2016 DI-2110DO-2210 AI-2300C P-2019 AI-2301 DI-2110 DI-2110 DO-2210 AI-2300CP-2019 AI-2301AI-2301 DI-2110DI-2110 DI-2110
CP-2016
CP-2019
PE-6411
PS-663x
2
2
2
2
S
I
C
A
M
1
7
0
3
S
I
C
A
M
1
7
0
3
ON
OFF
S1
1
SI C AM
1703
SI C AM
1703
ON
OFF
S1
ON
OFF
S1
Bus Interface Modules
CM-0842
Ax 1703 Peripheral bus (electrical)
16 Mbps
patch-cable, length up to 3 m
I/O modules (max. 8)
Settings A on the
configuration switch S1
Ax 1703 peripheral bus (optical)
16 Mbps
FO, length up to 200 m
1 peripheral element
peripheral elements
TM 1703 ACP
(max. 16)
SICAM AK 3
base unit
Settings A on the
configuration switch S1
Settings B on the
configuration switch S1
Ax 1703 peripheral bus
(optical)
16 Mbps
FO, length up to 200 m
Bus Interface Modules
CM-0842
