Automation Units and Automation Networks
236 SICAM RTUs, SICAM AK 3 User Manual
Edition 07.2016, DC2-028-2.03
6.1 Configuration of Automation Units
6.1.1 SICAM AK3 Basic Unit with Peripheral Elements
6.1.1.1 SICAM AK 3, local PE

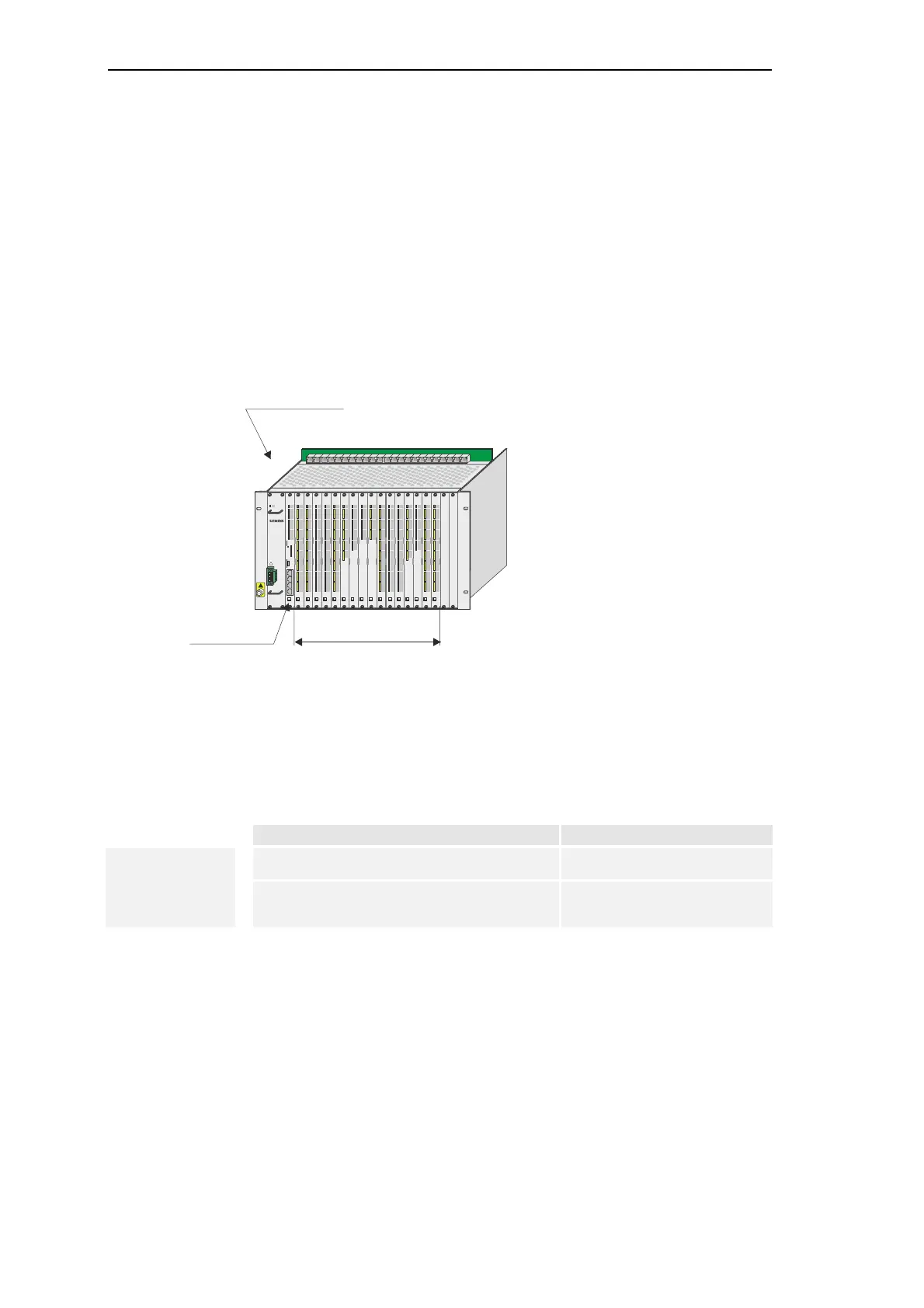

Local peripheral elements in an SICAM AK 3 base unit
• To one basic system element CP-2016/CPCX26 or CP-2019/PCCX26 one bus line with
max. 16 peripheral elements can be connected.
• The Ax-PE bus can be driven by one of the CPUs (M-CPU, C1 -C16 CPU).
Default: M-CPU
Necessary modules and cables
Designation
Item-Number/MLFB
Basic unit
SICAM AK 3
CP-2016
Master control element CP-2016/CPCX26
BC2-016 / 6MF10130CA160AA0
CP-2019
Processing and communication element CP-
2019/PCCX26
BC2-019 / 6MF10132CA100AA0
CP-2016
SICAM AK
PS-263x
CP-2016 DI-2110 DO-2210 AI-2300 A I-2301
DI-2110
DI-2110
base unit
