System Components
SICAM RTUs, SICAM AK 3 User Manual 147
DC2-028-2.03, Edition 07.2016
2.7 Submodules
2.7.1 Glue Serial Number on Front Panel
The serial number of each submodule in-
stalled on a peripheral element must be
glued on the front panel of the carrier mod-
ule. The label with the serial number is part
of the submodule.

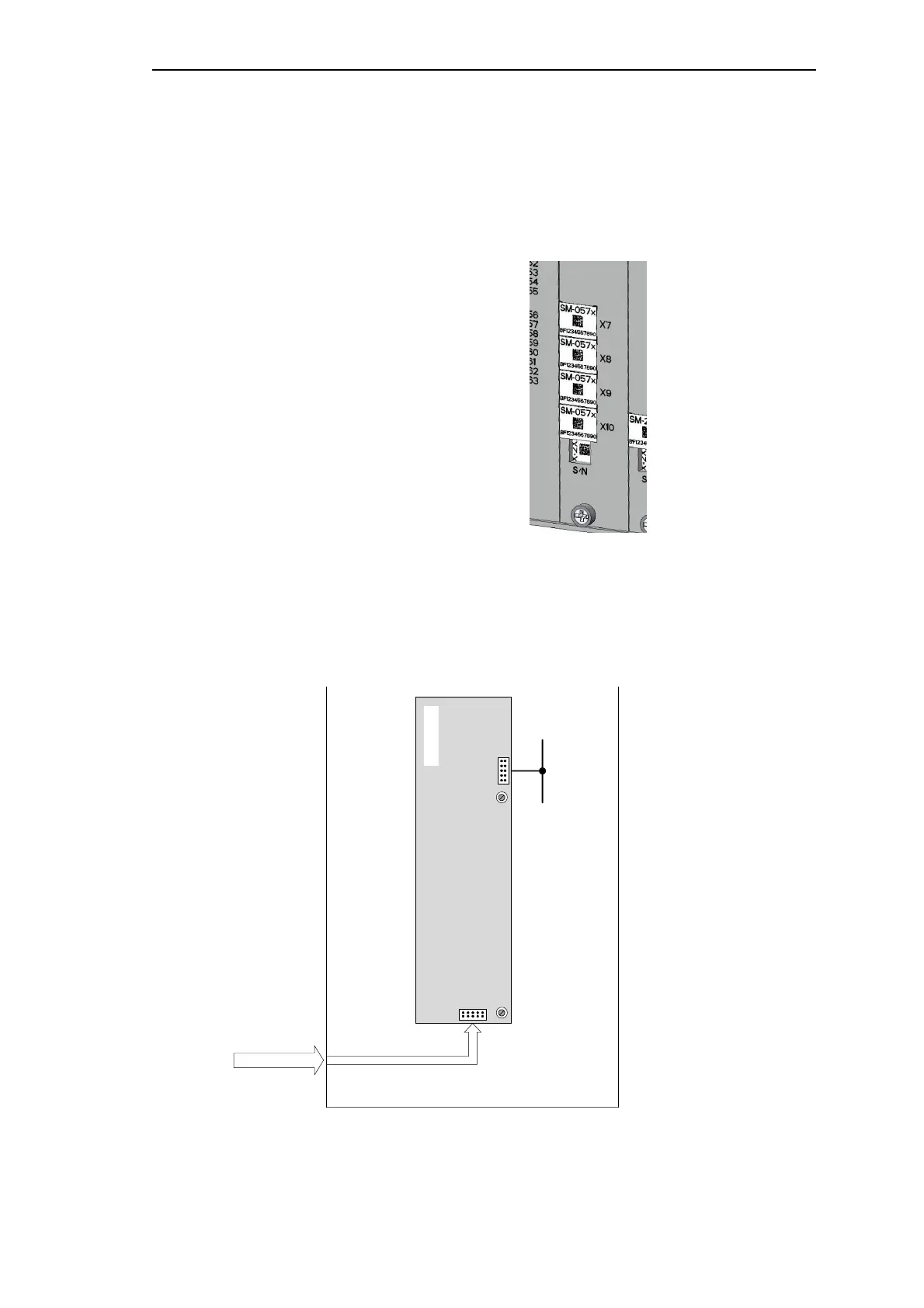

The label must be glued as shown in this
example.
2.7.2 SM-0570
The SM-0570 submodule (analog input extension 2x ±20 mA) provides two analog inputs.
carrier module
internal
interface
SM-0570
2 analog inputs
