2.1 Power Supply
2.1.1 PS-2630, PS-2632
The voltage is supplied on the front side of the housing
The voltage output (5 V) is galvanically insulated and protected against continued short circuit,
and is monitored on failure.
The power supplies can be connected in parallel to increase the operation reliability (redun-
dancy).

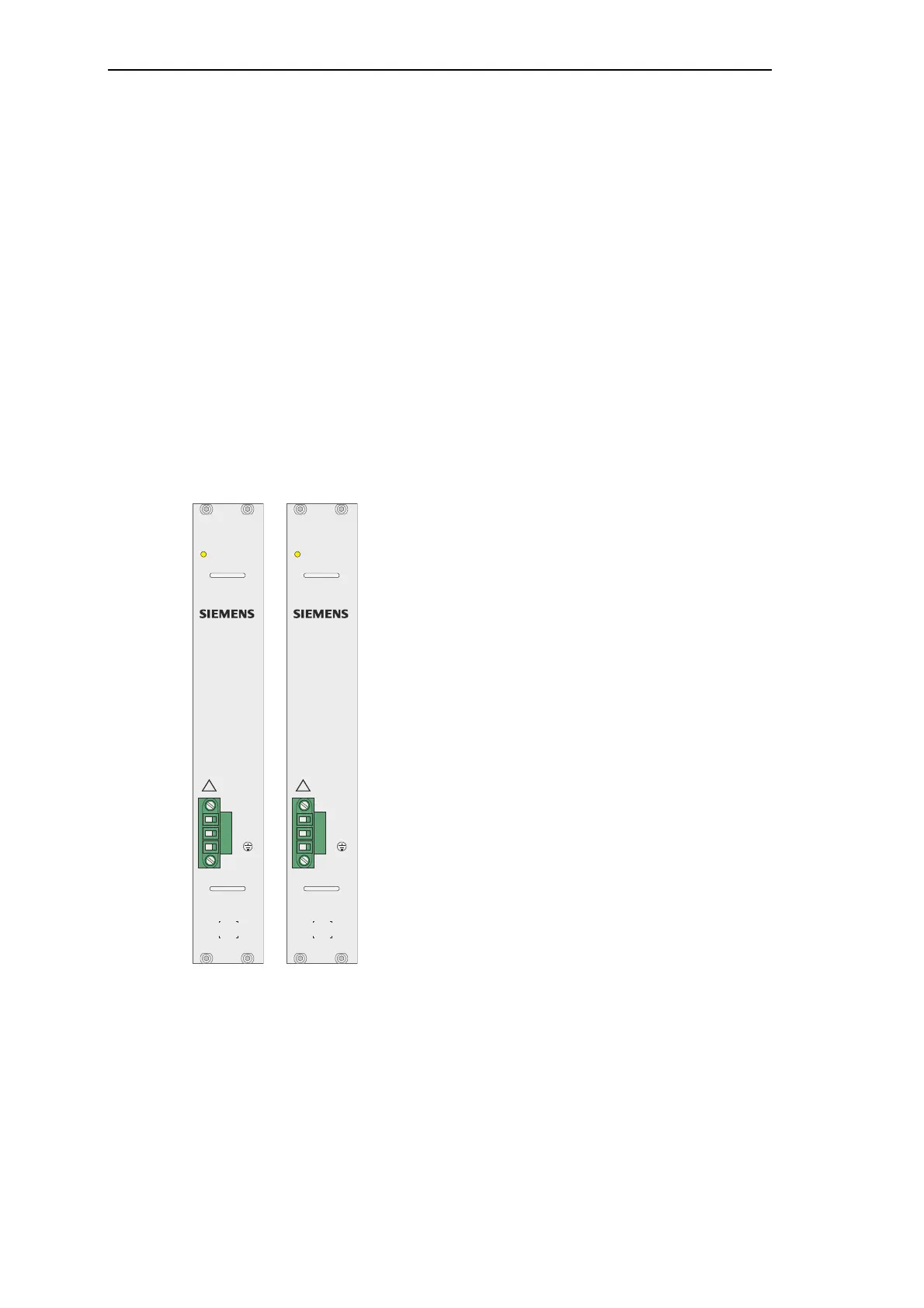

2.1.1.1 Front View
PS-2630 PS-2632
SICAM AK
PS-2630
RY
X1
+
!
-
S/N
SICAM AK
PS-2632
RY
X1
L/+
!
N/-
S/N
