Installation
36 SICAM RTUs, SICAM AK 3 User Manual
Edition 07.2016, DC2-028-2.03
1.3 Installation and Removal of Modules
Warning
The activities described in this section presume that the grounding connection between SICAM AK 3 and
cabinet or rack has been properly carried out and that these are earthed.
1.3.1 Preparations

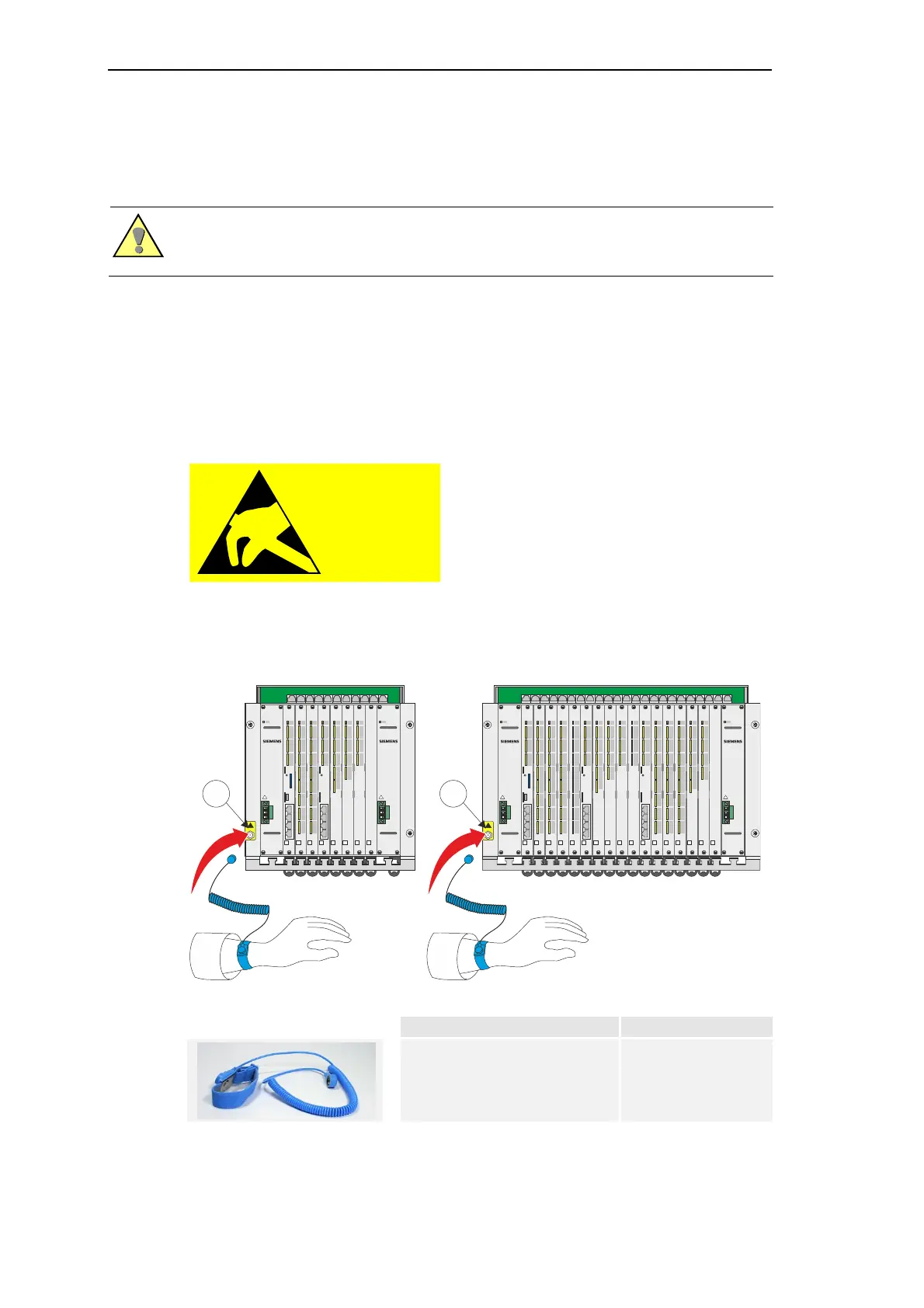

1.3.1.1 Connect and put on Grounding Strap
The grounding strap can be connected directly to the board rack. The connection point is lo-
cated on the left side panel of the board rack .
Designation Item-Number/MLFB
Grounding Strap TF3-133
6MF13140DB330AA0
ACHTUNG
HANDHABUNGS-
VORSCHRIFTEN
BEACHTEN
ELEKTROSTATISCH
GEFÄHRDETE
BAUELEMENTE
SICAM AK
PS-263x
SICAM AK
PS-263x
DI-2110
CP-2016
CP-2019
AI-2301
AI-2300
DO-2210
DI -2 110
DI- 211 0
DI-2110
AI-2300
DI-2110
DI -2 110
DI-2110
CP-2019
AI-2301
DO-2210
SICAM AK
PS-263x
SICAM AK
PS-263xDI -2 110CP-2016 CP-2019 AI-2301 AI-2300DO- 22 10DI -2 110
CM-2844
CM-2846
1 1
