Prepare Engineering
172 SICAM RTUs, SICAM AK 3 User Manual
Edition 07.2016, DC2-028-2.03
3.2.2 Logical Connection

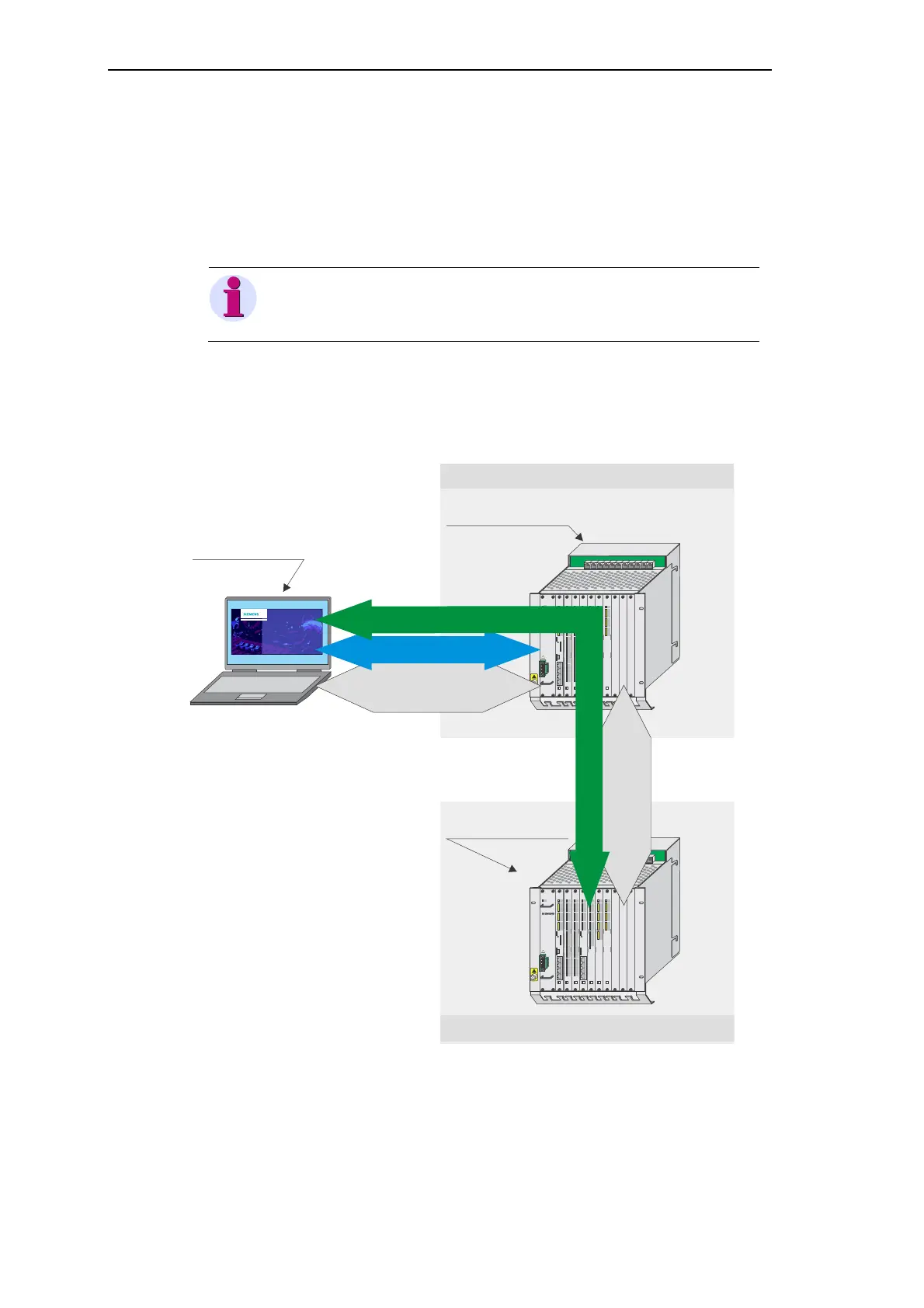

For engineering there must be a logical connection to that automation unit, which is subject of
the engineering task. The both following cases are differentiated:
Connection with a local automation unit (that one, to which a physical connection exists)
Note
A first initialization of the automation unit is only possible in this way.
Connection with a remote automation unit that one, which can be accessed via a local au-
tomation unit; thereby, a continuous remote communication according to IEC 60870-5-101
or -104 is required)
SI CAM AK
PS- 26 3x
CP- 20 16
D I-2 110
D I-2 110
C P-2 019
DO -2210
AI- 23 01
AI- 23 00
SI CAM AK
PS- 26 3x
CP- 20 16
D I-2 110
D I-2 110
C P-2 019
DO -2210
AI- 23 01
AI- 23 00
TOOLBOX I I
Revision:
License Pak:
Version 5 | Siemens AG
TOOLBOX II
SICAM
SICAM AK 3 oder
andere SICAM RTUs
remote automation unit
remote AU engineering
local AU engineering
remote AU engineering
automation network
(IEC 60870-5-101/104)
physical connection
SICAM
Ax 1703 platform
AK 3 or
local automation unit
