System Components
126 SICAM RTUs, SICAM AK 3 User Manual
Edition 07.2016, DC2-028-2.03

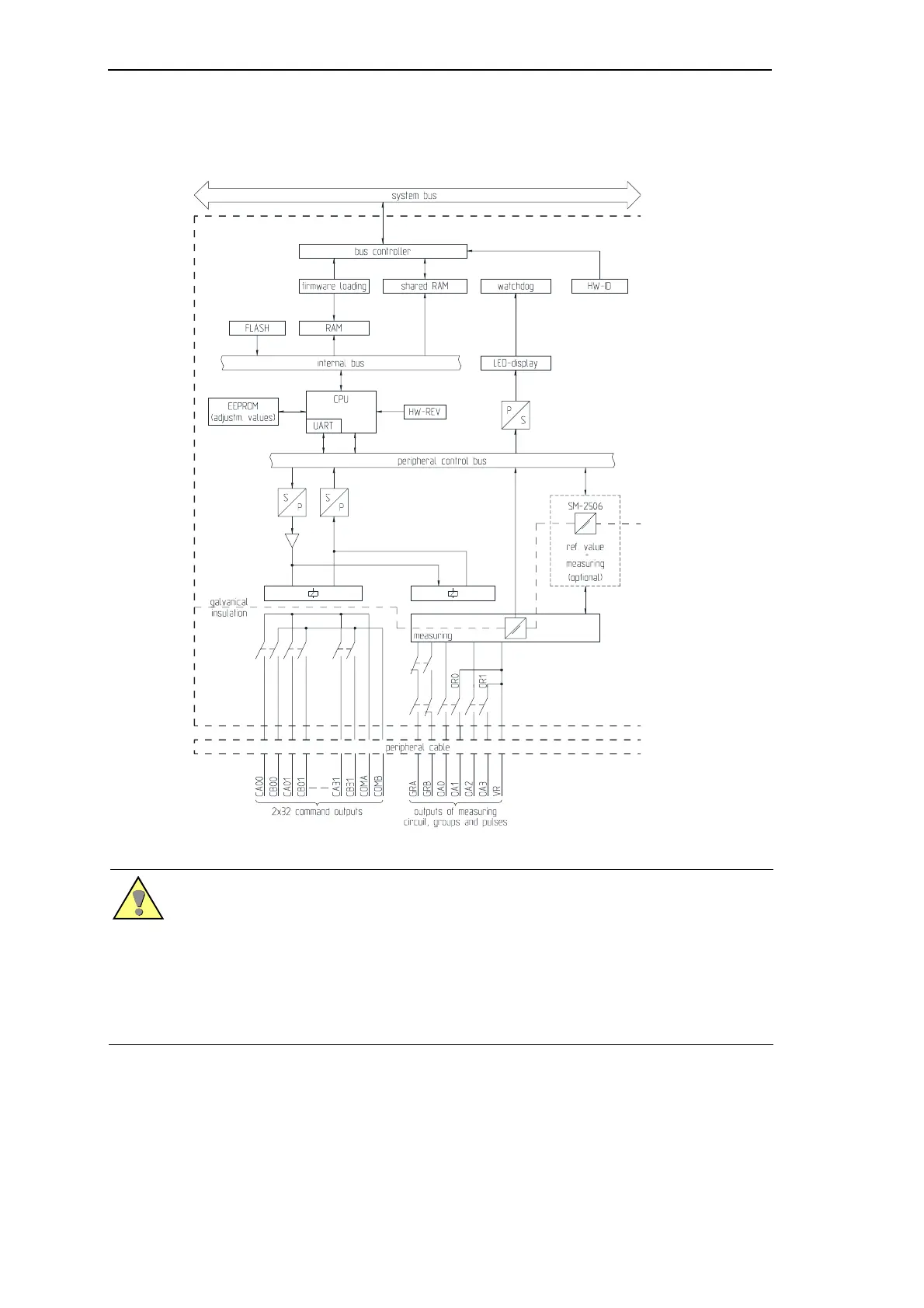

2.5.4.2 Block Diagram
Warning
An insulation plate must be installed left and right of the module DO-2111.
One insulation plate is included to this board. Further can be ordered with following number:
Insulation plate double-Euro format T12-001 / 6MF13010CA010AA0
Insulation plate holder ................... TC2-099 / (4 pieces per insulation plate) 6MF13133CA000AA0
There is no reinforced isolation between the peripheral circuits. Therefore, it is not allowed to protect each
circuit within one board separately using various fuses.
