1.5 Wiring for the Reception of Time Signals
1.5.1 DCF77 Receiver

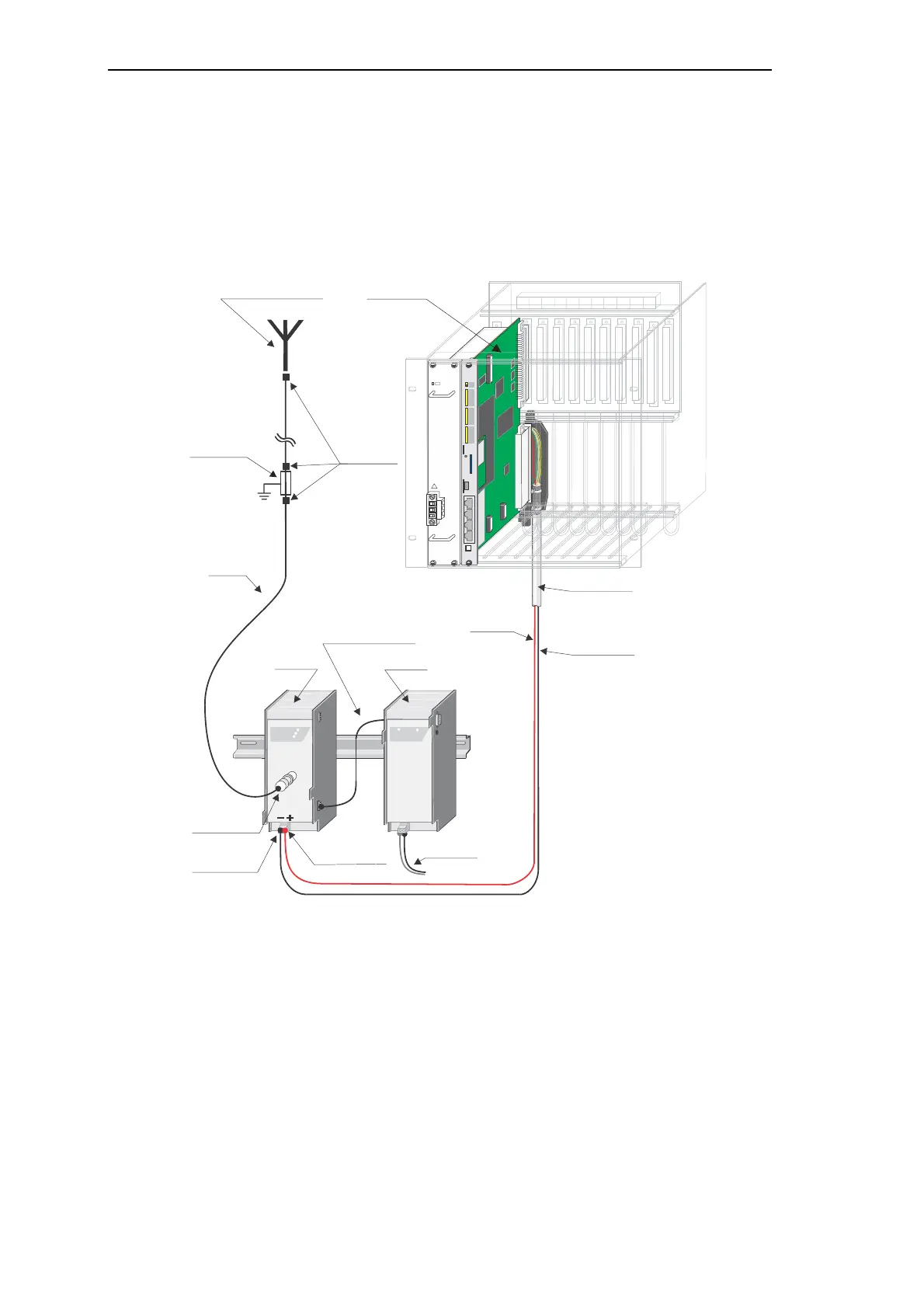

On the DCF77 receiver there is a 2-pole screw terminal (X11 SYNC) available over which the
minute pulse or a serial time signal, adjustable via jumper, can be transmitted.
4
3
2
1
SICAM AK
PS-263x
CP-2016
CM-2890
PS-4620
24-60VDC
DCF77
RG58
OUT SYNC0+
X3:2
OUT SYNC0-
X3:1
CP-2016
DCF77 rod antenna
Supply cable
TA4-051
BNC
connector
RG58
Lightning
protection
N connector
SYNC_GND
X100:a4
bk/whbu
(or
SYNC_GND
X100:c4
bu/whye)
SYNC1+
X100:a2
ye/whbu
(or
SYNC2+
X100:c2
gn/whbu)
