Installation
38 SICAM RTUs, SICAM AK 3 User Manual
Edition 07.2016, DC2-028-2.03
• Connect/put on grounding strap and remove front panel

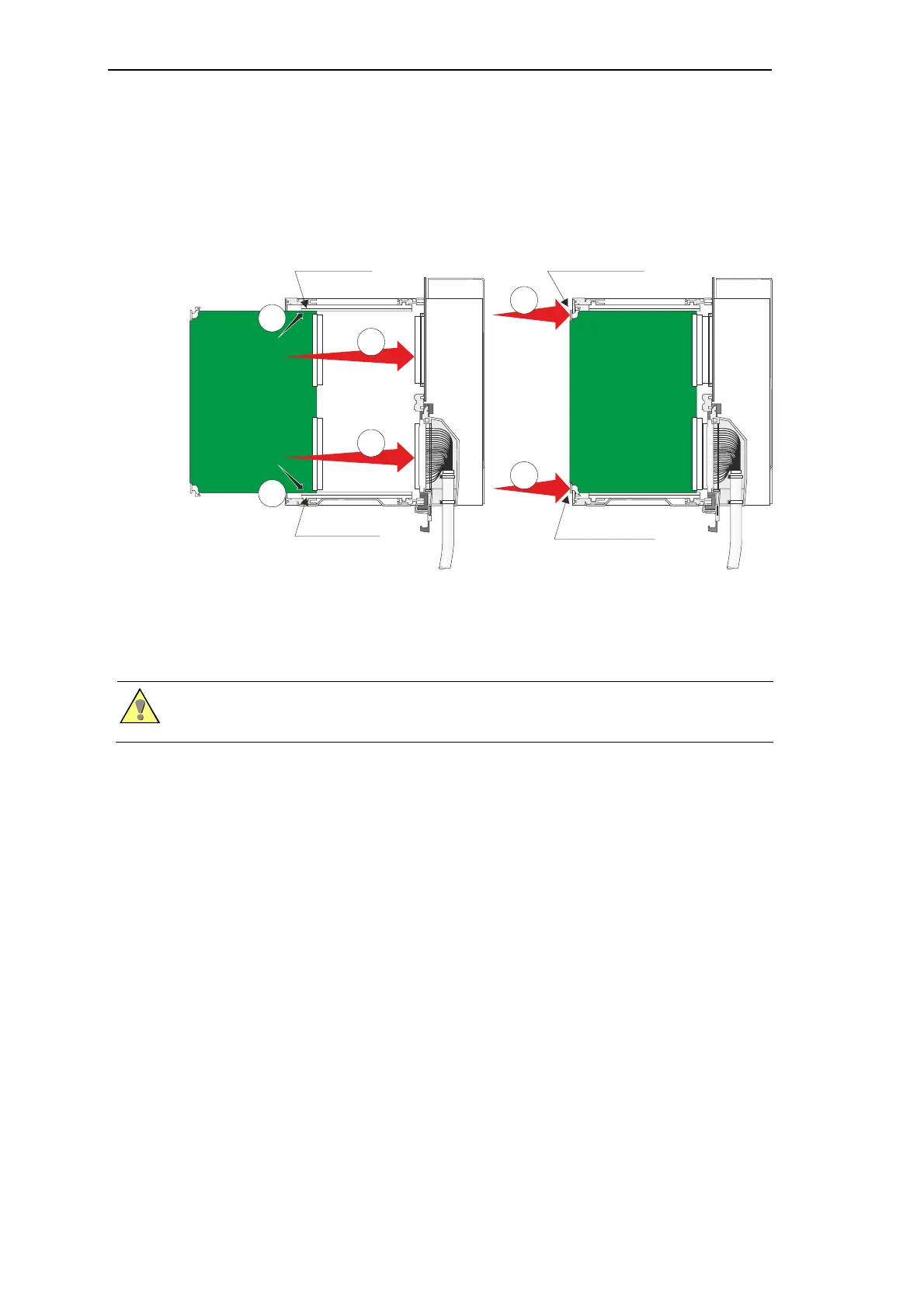

• Place the module in the guide bracket of the desired slot • and push it carefully up to the
connectors located at the bottom ‚.
• Then apply the same pressure at both unlocking blocks ƒ in order to connect the module
with backplane (and peripheral cable).
1.3.3 Removal
Caution
When removing the master control element, all the non-autonomous modules fail (processing and com-
munication element, peripheral element).
For the removal of a module, you will need the unlocking tool TA2-105. This is included in the
scope of supply of every board rack and must be inserted in the bracket provided on the board
rack during installation.
Proceed as follows:
• Connect/put on grounding strap and remove front panel
• Position the unlocking tool between module and profile rail •
• Loosen the plug-in connector by pushing the unlocking clip upwards ‚, or downwards ‚.
• Grasp the module at the unlocking blocks and withdraw it from the board rack ƒ
2
1
1
2
