System Components
90 SICAM RTUs, SICAM AK 3 User Manual
Edition 07.2016, DC2-028-2.03
2.2 Basic System Elements
2.2.1 CP-2016/CPCX26
2.2.1.1 Front Panel

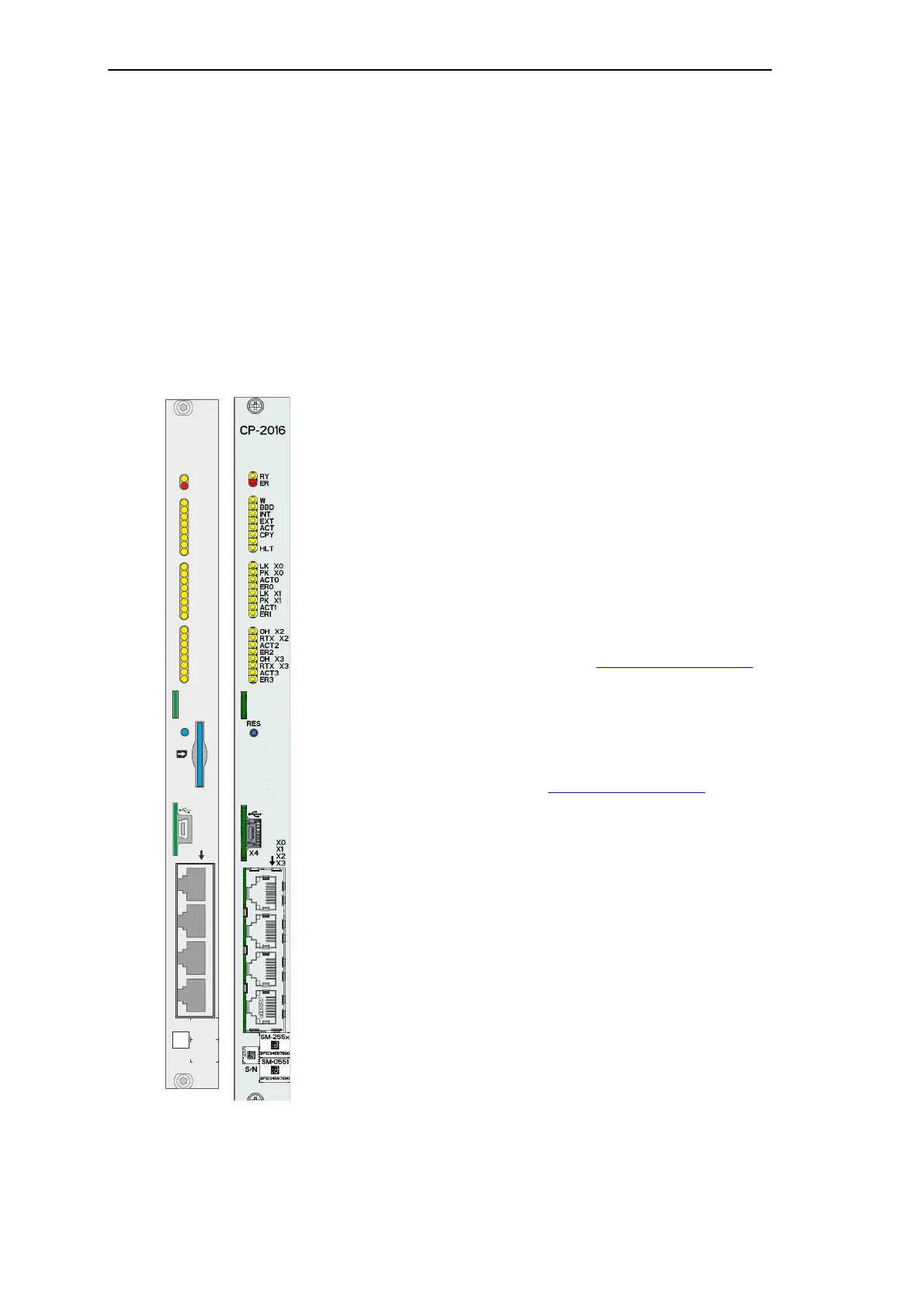

CP-2016 Front panel
CP-2016 AK3
Security
RY: Board ready
ER: Error
W: Warning
BBD: Module failure
INT: Internal error
EXT: External error
ACT: CPU active
CPY: Parameter safety operation / Firmware is loaded
HLT: FW shut down / Board shut down
LK X0: \
PK X0: |
ACT0: |
ER0: \ LED display for protocol element 0 and 1
LK X1: / Meaning see chapter „Service“, section “Operation And Display Elements
PK X1: |
ACT1: |
ER1: /
OH X2: \
RTX X2: |
ACT2: |
ER2: \ LED display for protocol element 2 and 3
OH X3: / meaning dependent on the installed protocol element
RTX X3: | see chapter „Service“, section “Operation And Display Elements
ACT3: |
ER3: /
RES: Reset
SD: SD-Card (SD-Card in front panel CP-2016 AK3 Security not visible)
X4: USB interface
X0: Interface protocol element 0
X1: Interface protocol element 1
X2: Interface protocol element 2
X3: Interface protocol element 3
S/N: Serial number
SI2: Position for label with serial number of protocol element 2
SI3: Position for label with serial number of protocol element 3
CP-2016
RY
S/N
ER
W
BBD
INT
EXT
ACT
CPY
H LT
LK X0
PK X0
ACT0
ER0
LK X1
PK X1
ACT1
ER1
RES
SD
X4
X0
X1
X2
X3
SI3
SI2
OH X2
RTX X2
ACT2
ER2
OH X3
RTX X3
ACT3
ER3
