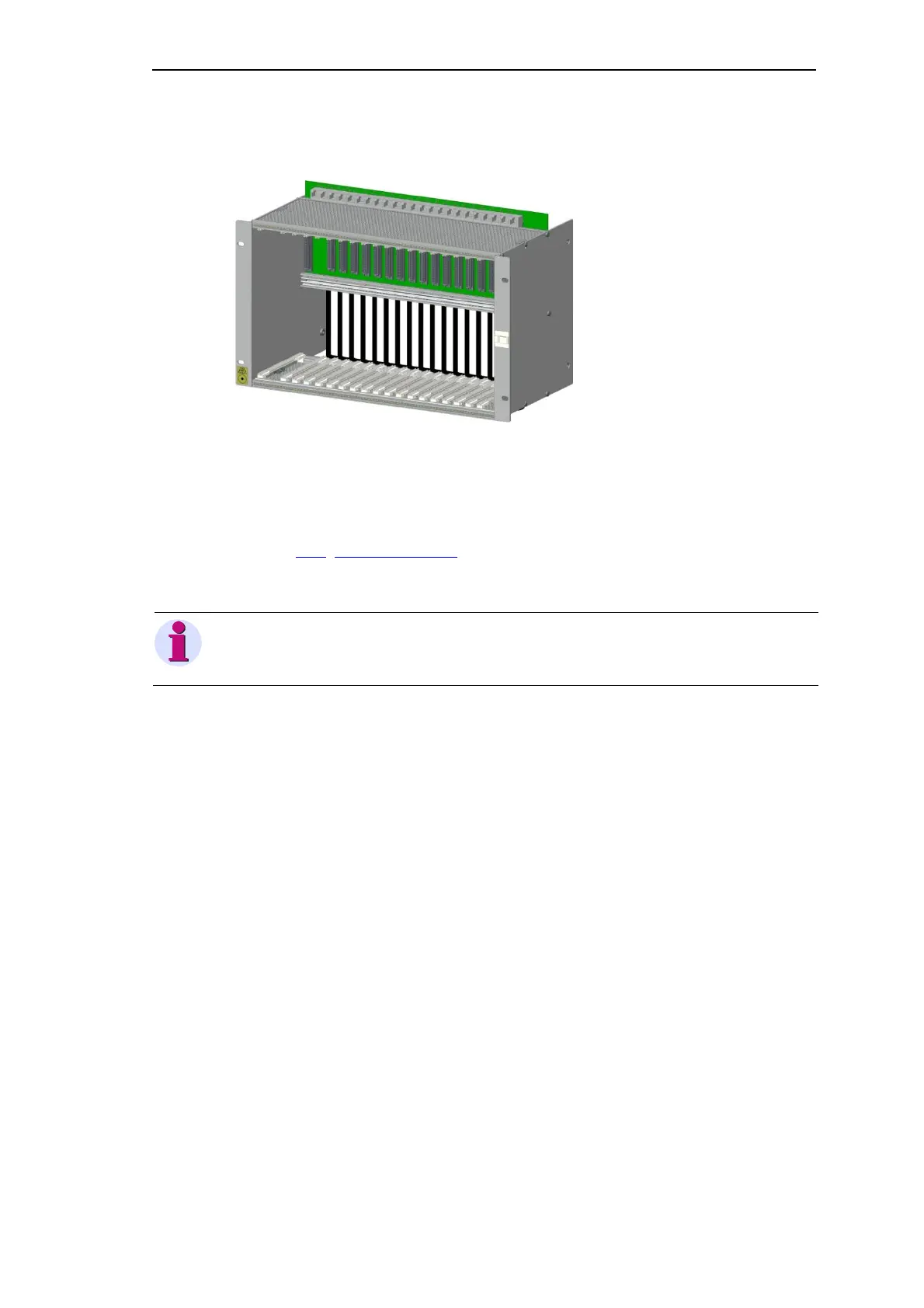

1.1.5 CM-2847 Migration Board Rack, 17 Slot
The migration board rack CM-2847 has 17 slots for modules and 2 slots for power supplies in
double-Europe format. It serves for the equipment of basic modules and peripheral modules.
The board rack is designed for 19“ (swing-) frame installation.
In section 1.2.2, Space Requirement you can find information on the dimensions.
Further information can be found in the SICAM AK 3 System Description.
Hint
This board rack was primarily designed for the combined use with the SICAM AK basic system element
CP-2017/PCCX25 in SICAM AK 3. It enables the installation of the connection board CM-2838, which is
required by the basic system element CP-2017/PCCX25.
