3.2 Connect Engineering PC with a Target System
For the transmission of engineering data to a system SICAM AK 3 the engineering PC must
be connected with the target system, and a SD card must be equipped on the master control
element.
3.2.1 Physical Connection
The following connection options are available:
• Directly via the USB interface on the master control element
• Remote operation, LAN/WAN via Ethernet (TCP/IP)
3.2.1.1 Directly via the USB Interface

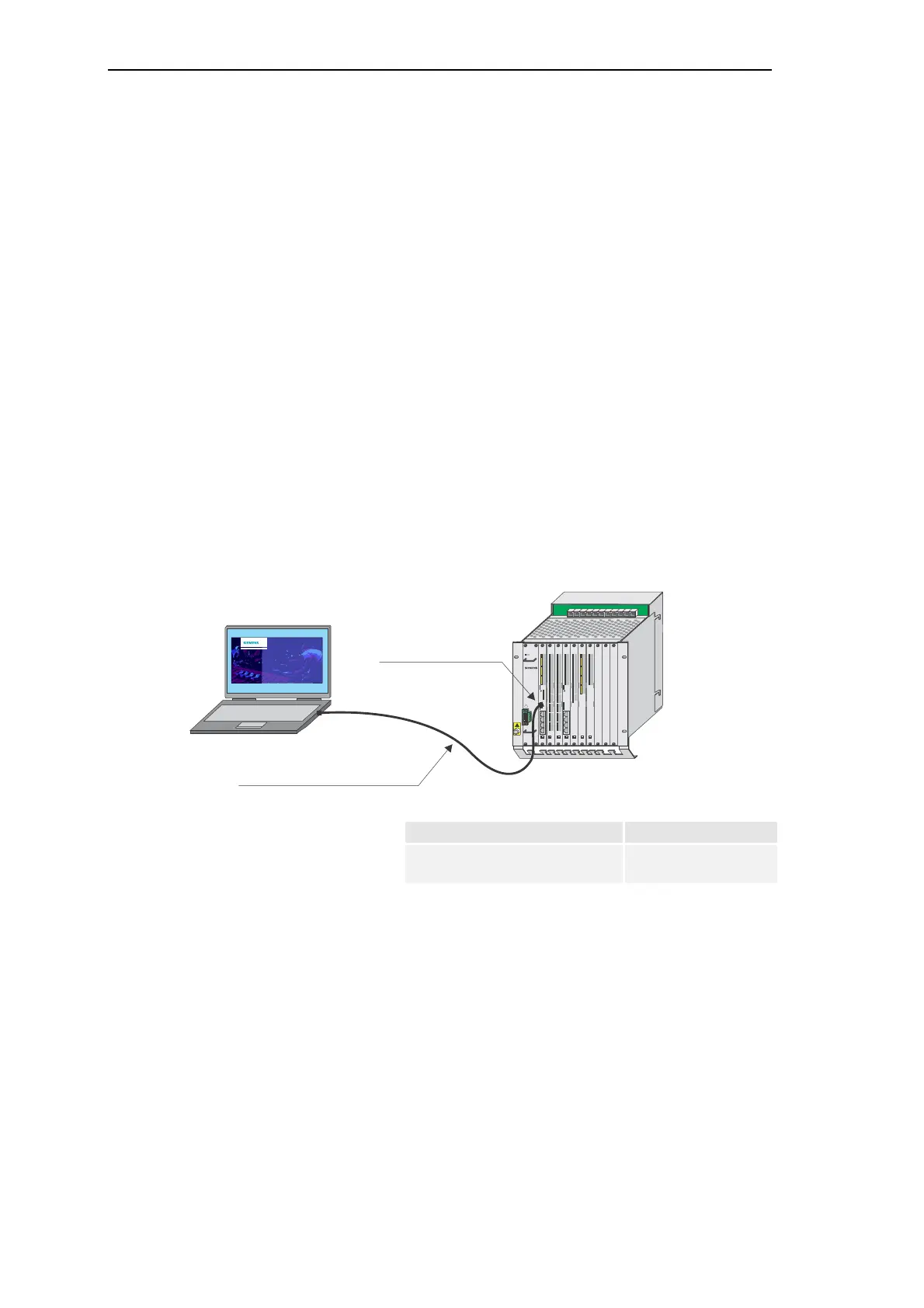

SICAM TOOLBOX II PC and SICAM AK 3 are connected direct via the USB cable.
Designation Item-Number/MLFB
CM-0825 TC0-825
6MF13130AJ250AA0
SICAM AK
PS-263x
CP-2016
DI-2110
DI-2110
CP-2019
DO-2210
AI -23 01
AI -23 00
SICAM TOOLBOX II
SICAM AK 3
TOOLBOX II
Revision:
License Pa k:
Version 5 | Siemens AG
CM-0825 USB connection cable
USB interface (X4)
