2.7.5 SM-0574
The SM-0574 submodule (count pulse input extension 2x 24…60 VDC) provides 2 pulse in-
puts (can be used as 2 counter inputs or 1 counter input plus 1 control input) in order to drive
up to 2 counters (pulse counting). It is used for modular extension of peripheral modules.

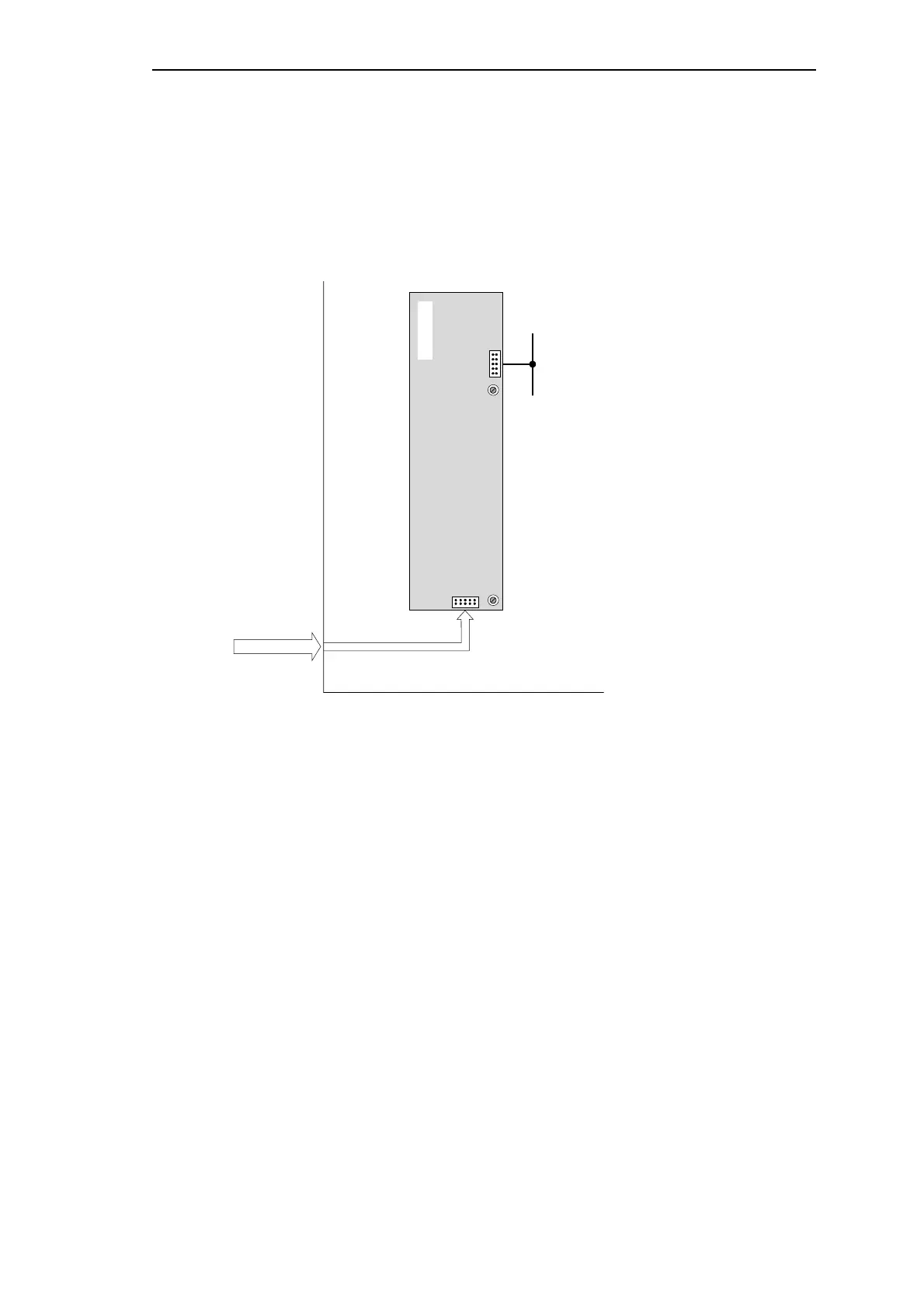

carrier module
internal
interface
SM-0574
2 pulse inputs
*)
*)
2 counter inputs or
1 counter input + 1 control input
