6.2.1 SICAM AK 3 „Stand-alone“ Telecontrol Station
The communication to the process takes place with local peripherals or serial communications
protocols (e.g.: MODBUS, …)
The local ethernet ports on CP-2016 or CP-2019 are not used in this application and thus
must be deactivated for security reasons.
The required parameter can be set on the BSE under Netzwork settings | IP
adresses
• Mode of Ethernet ports =1 IP address (connected ports in switch mode)
• Own IP address = 0.0.0.0
• Subnet mask = 0.0.0.0

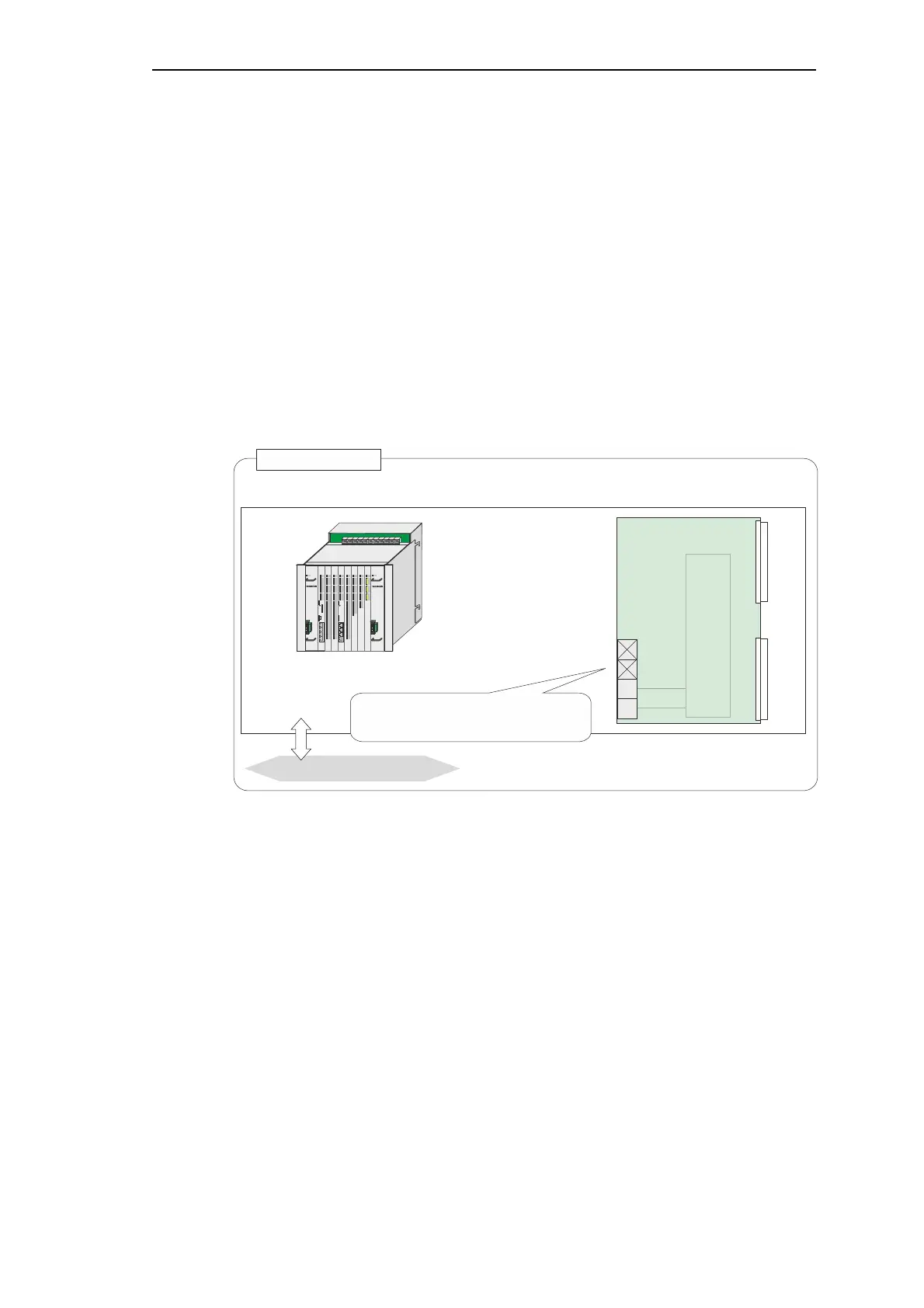

Automation Zone
SICAM AK 3
SICAM AK
SI CAM AK
X3
X2
X1
X0
S
M
-
2
5
x
x
Process
CP-2016 or CP-2019
Netzwork settings| IP addresses
Own IP address ..........
....................
0.0.0.0
0.0.0.0 Subnet mask
