Automation Units and Automation Networks
SICAM RTUs, SICAM AK 3 User Manual 249
DC2-028-2.03, Edition 07.2016

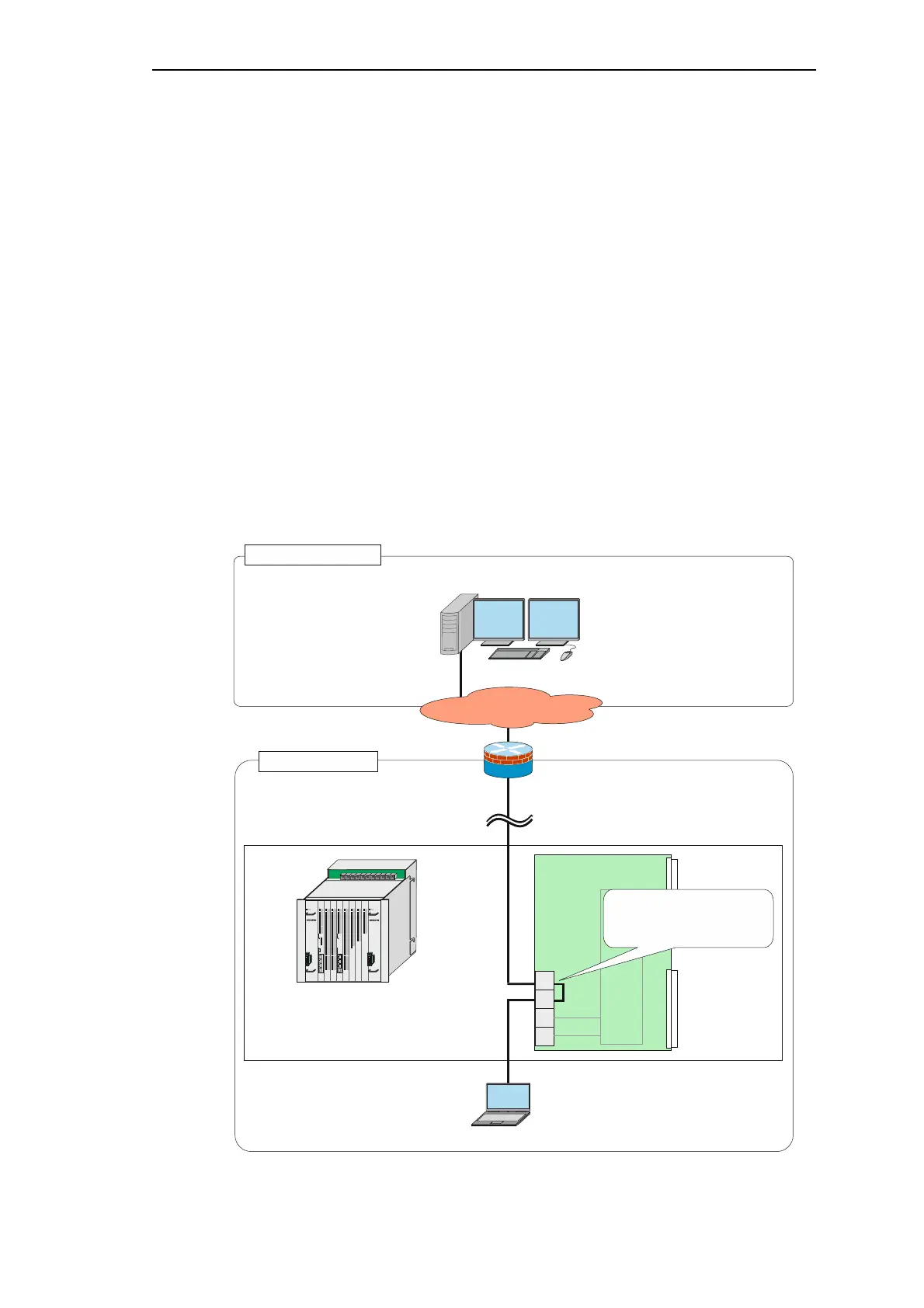

6.2.5 SICAM AK 3 as Telecontrol Substation with integrated Switch for
SICAM TOOLBOX II connection
Communication with the control system via IEC 60870-104
(Ethernet-Interface, X0 or X1, can be set with parameter)
Communication with SICAM TOOLBOX II via http/https
(Ethernet-Interface, X0 or X1, can be set with parameter)
SICAM AK 3 is used as switch between control system and SICAM TOOLBOX II
By means of SICAM TOOLBOX II, which is connected via the integrated switch, it is pos-
sible to reach the local SICAM AK 3 and further SICAM RTUs components via the „Control
Center Zone“. It depends on the network configuration which can be reached.
Features of the Ethernet Ports:
1 IP address
1 subnet mask
1 default router
Parameter Network settings | IP address | Mode of Ethernet ports
1 IP address (connected ports in switch mode)
Substation Zone
Office Zone
Control Center Zone
Router
SICAM AK 3
SICAM AK SICAM AK
X3
X2
X1
X0
SM-25xx
SIC AM
TOOLBOX II
Control Center
IP-address: 172.16.0.4
Subnet mask: 255.255.0.0
Default router: 172.16.0.254
PRE0 / ET24
IP-address: 172.16.0.3
Subnet mask: 255.255.0.0
Default router: 172.16.0.254
IP-address: 172.17.0.22
Subnet mask: 255.255.0.0
IP-address: 172.16.0.254
CP-2016 or CP-2019
