Installation
40 SICAM RTUs, SICAM AK 3 User Manual
Edition 07.2016, DC2-028-2.03
1.4 Setup of external Communication Connections
1.4.1 General
In SICAM AK 3 each BSE supplies up to 4 communication interfaces. While 2 of these are fix
integrated LAN-Interfaces, the others can be expanded with corresponding modules for follow-
ing kind of communication:
Serial Communication
LAN Communication (Ethernet TCP/IP)
Field Bus Communication
For this it is necessary to expand the respective BSE with a serial interface module (SIM) (see
following section) and then to connect with the external communication device (Modem) (see
section 1.4.5; Communication Cabling).
Note
The following sections show how to built up communication connections with the SICAM AK 3 basic sys-
tem elements CP-2016 and CP-2019.
For examples, how to built up these communication connections with a SICAM AK basic system element
CP-2017 in a SICAM AK 3 migration board rack (CM-2847), look into the SICAM AK User Manual
(DC2-016-2). This particularly concerns the use of the CM-2838 connection board and the corresponding
patch plugs.

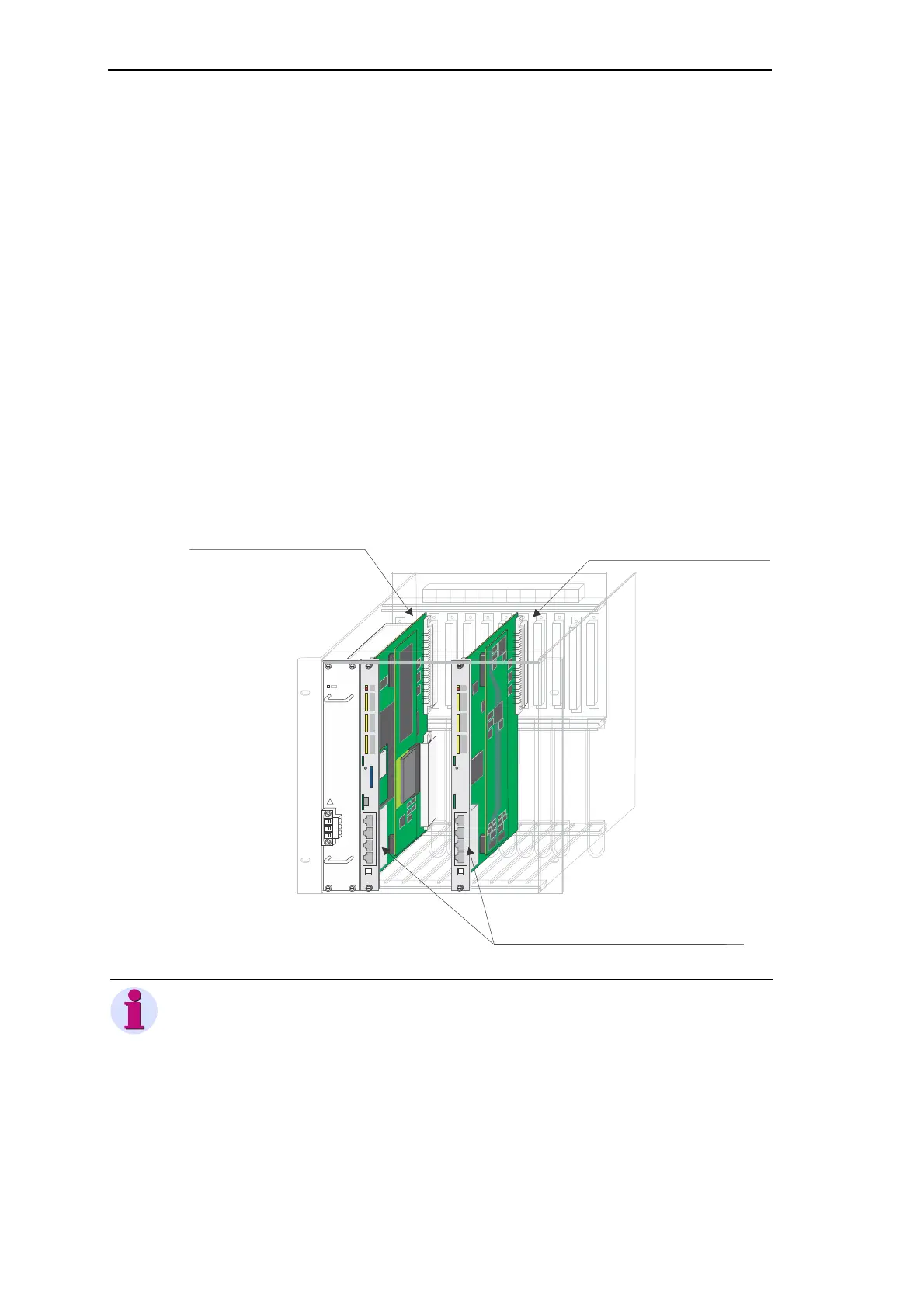

SICAM AK
PS-263x
C P- 20 19
CP-2016
CP-2016 Central processor
with serial interface module
CP-2019 processing- and
communication element with
serial interface module
4 RJ45 Communication interface
(2 x LAN fix integrated; 2 x freely assignable)
