Siemens SICAM RTU - Wiring Watchdog and Error; General

Installation
70 SICAM RTUs, SICAM AK 3 User Manual
Edition 07.2016, DC2-028-2.03
1.6 Wiring Watchdog and Error
1.6.1 General
The relay contacts (open- and closed contact) of watchdog and error are available on the pe-
ripheral cable CM-2890.

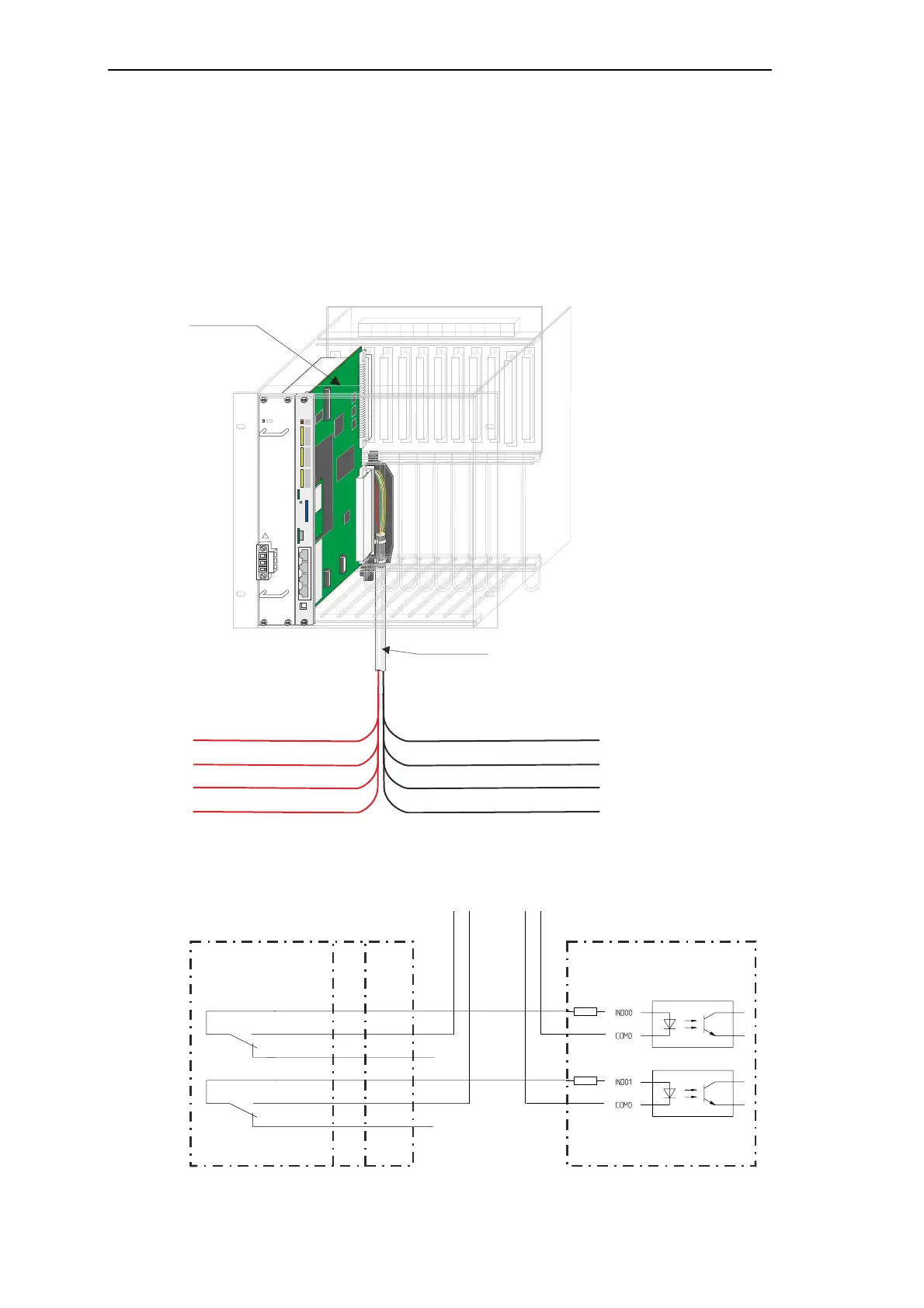

Example (Circuitry for External Alarm Annunciation System)
SICAM AK
PS-263x CP-20 16
CM-2890
CP-2016
bk/rdye= ER_NO X100:a24
gn/rdgn = ER_COM X100:a26
bu/rdgn = ER_NC X100:c24
bn/rdgn = ER_COM X100:c26
gn/whbk = WD_NO X100:a16
bu/rdbu= WD_COM X100:a18
bn/whbk = WD_NC X100:c16
ye/rdbu = WD_COM X100:c18
CP-2016
+24 VDC
X100
CM-2890
0 VDC
WD_COM a:18 bu/rdbu
WD_NO a:16 gn/whbk
WD_NC c:16 bn/whbk
ER_COM a:26 gn/rdgn
ER_NO a:24 bk/rdye
ER_NC c:24 bu/rdgn
