Installation
60 SICAM RTUs, SICAM AK 3 User Manual
Edition 07.2016, DC2-028-2.03
1.4.5.2 LAN Communication (Ethernet TCP/IP)
Designation Item-Number/MLFB
Patch cable Cat.5 (4x2) 1 m
AWG26/7
2 m
3 m
5 m
10 m
(for cabinet-internal wirings)
T41-255
6MF13040BC550AA0
T41-251
6MF13040BC510AA0
T41-252
6MF13040BC520AA0
T41-253
6MF13040BC530AA0
T41-254
6MF13040BC540AA0
Patch cable Cat.5 (4x2x0,5) 1,5 m
AWG24
3 m
5 m
(for cabinet-external wirings)
TF5-200
6MF13140FC000AA0
TF5-201
6MF13140FC010AA0
TF5-202
6MF13140FC020AA0
Details for connections over 10 m can be taken from document: Configuration Automation
Units and Automation Networks, Appendix A, section “Electrical Connection, Cable longer
than 10 m”.
CP-2016
CP-2019

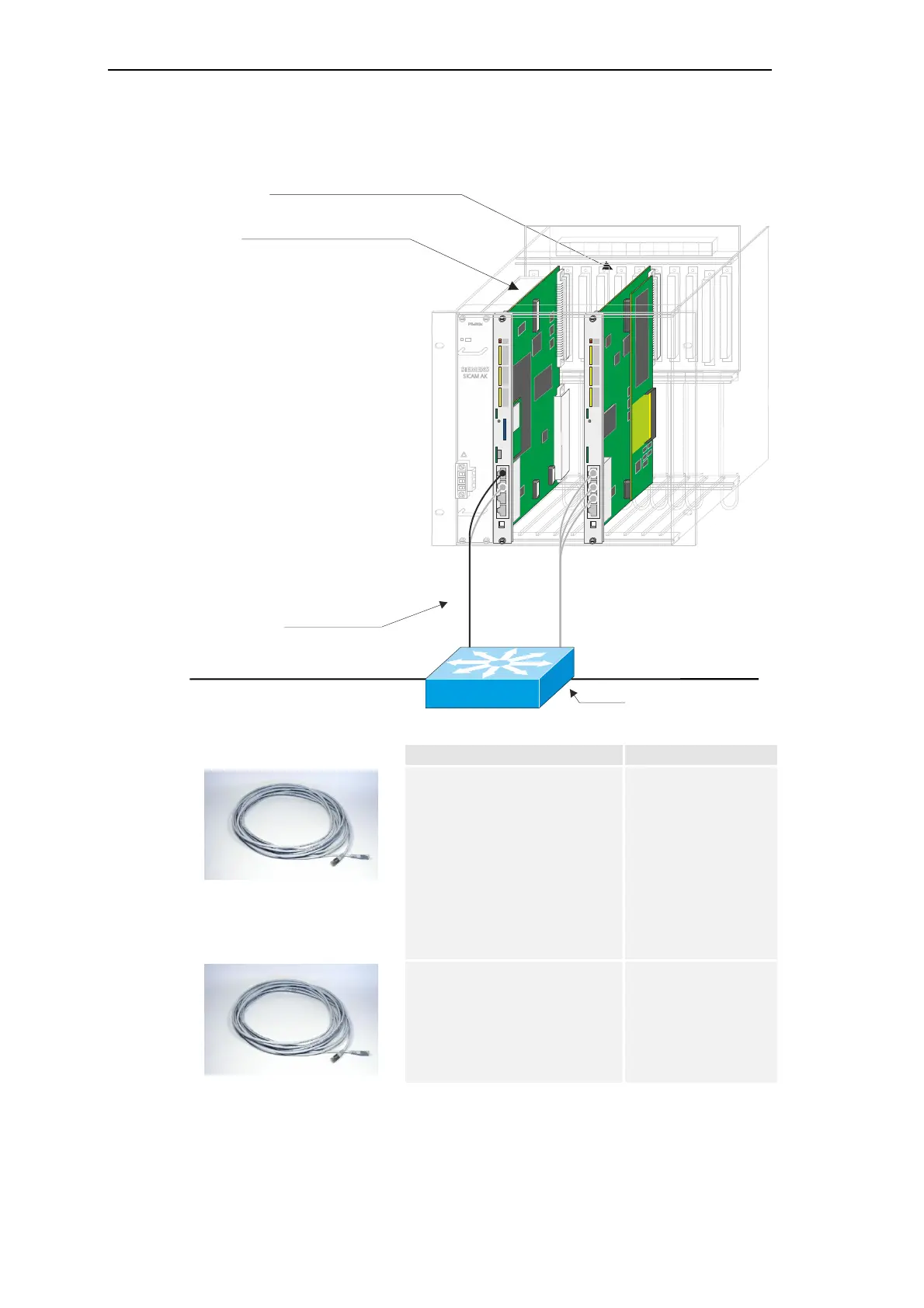

Patch cable
CP-2016
CP-2019 with SM-2558
Switch
Ethernet
TCP/IP 60870-5-104
X0
X1
X2
X3
X0
X1
X2
X3
