Siemens SICAM RTU User Manual

Installation
66 SICAM RTUs, SICAM AK 3 User Manual
Edition 07.2016, DC2-028-2.03
1.5.2 GPS Satellite Receiver
The GPS164 satellite receiver offers a minute pulse and a serial time signal. The settings are
made with software GPSMON32. This software is delivered with the GPS164 receiver.

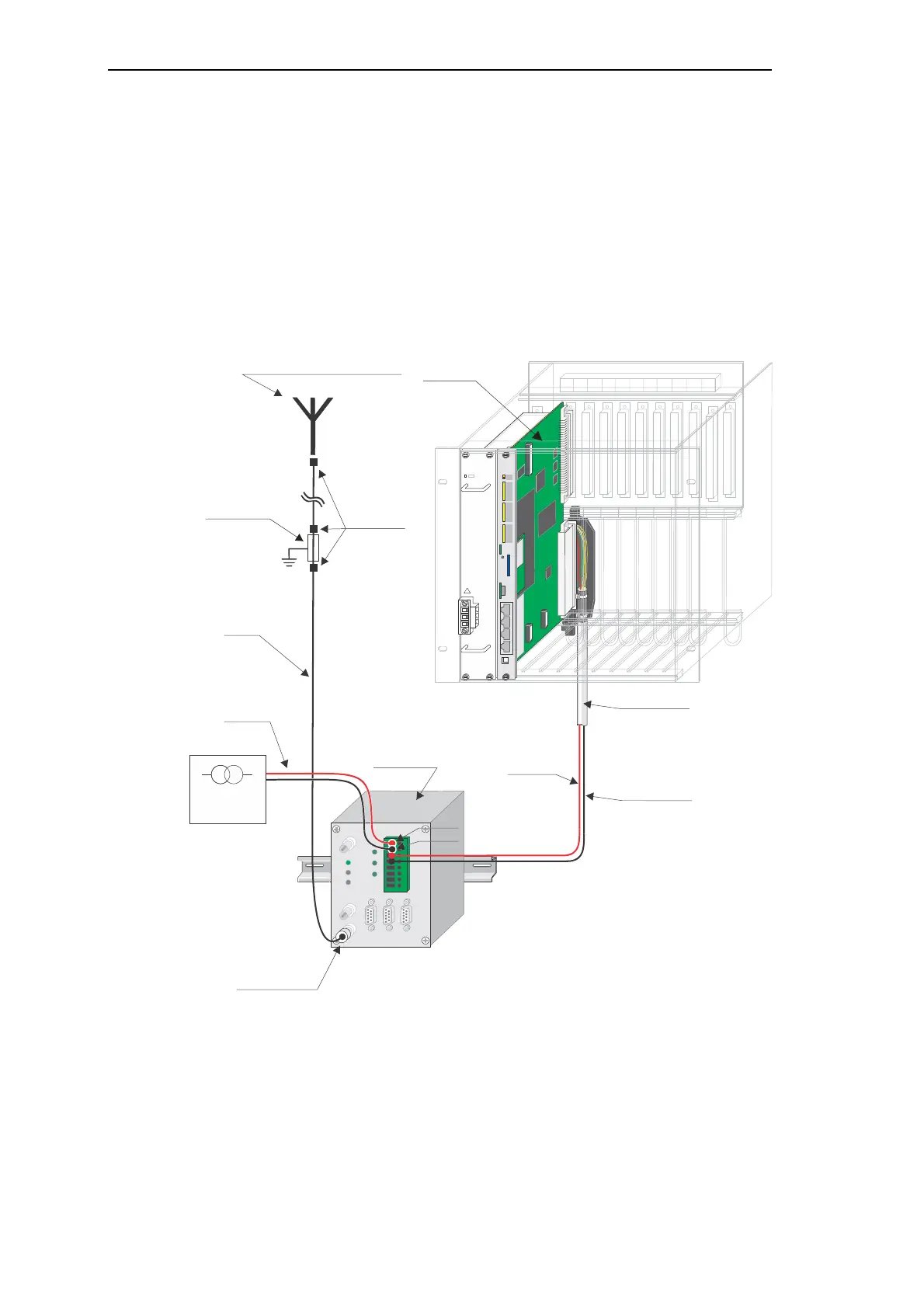

1.5.2.1 Wiring for the Receipt of the Minute Pulse
The minute pulse is supplied on the screw terminal on the front panel of the GPS164 receiver.
Accessories see SICAM AK 3 System Description.
4
3
2
1
4
SICAM AK
PS- 263x
CP-2016
CM-2890
CP-2016
RG58
24 VDC
Ub-
Ub+
Lightning
protection
N connector
BNC
connector
RG58
GPS164
receiver
GPS167 antenna/converter
Power
Supply
SYNC_GND
X100:a4
bk/whbu
(or
SYNC_GND
X100:c4
bu/whye)
SYNC1+
X100:a2
ye/whbu
(or
SYNC2+
X100:c2
gn/whbu)
