System Components
SICAM RTUs, SICAM AK 3 User Manual 165
DC2-028-2.03, Edition 07.2016
Note
Fiber optics, by means of those the connection between bus interfaces and peripheral elements is set up,
must be between 20 and 200 m long.
Patch cables, by means of those the connection between basic system element and bus interfaces or
peripheral elements is set up, may be maximum 3 m long each.
The DIN rails of all CM-0842 must have the same ground potential.

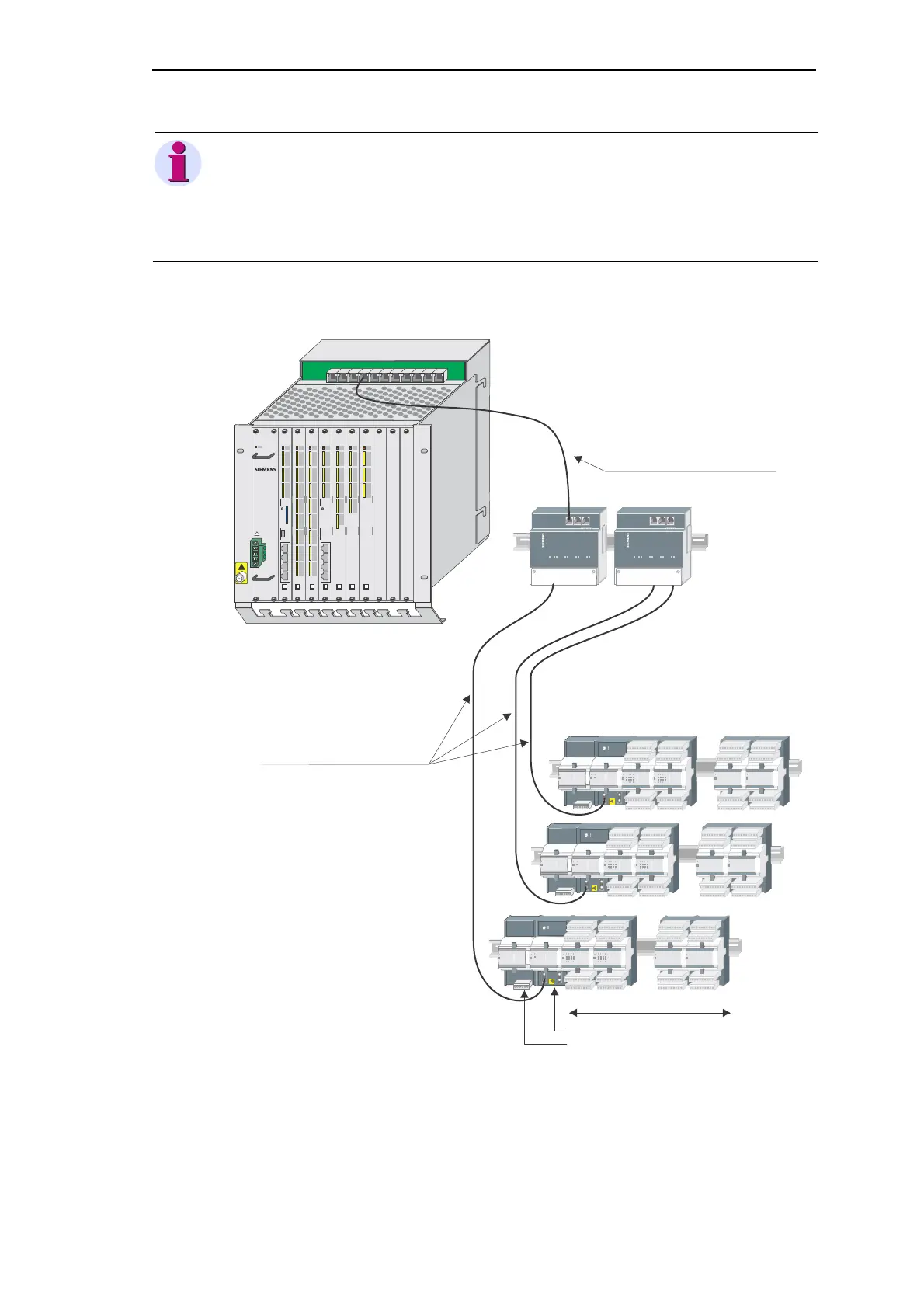

16 Peripheral Elements, optically connected
SICAM AK
PS-263x CP-201 6 DI-2110 D I-2110 C P-2019 D O-221 0 AI-23 01 A I-23 00
..........
Ax 1703 peripheral bus (electrical)
16 Mbps
patch cable, length up to 3 m
Ax 1703 peripheral bus (optical)
16 Mbps, optical fibre,
length up to 200 m
max. 8 I/O-modules
CM-0842
1 . . . 4
PE-6411,12
1
15
