Installation
SICAM RTUs, SICAM AK 3 User Manual 31
DC2-028-2.03, Edition 07.2016

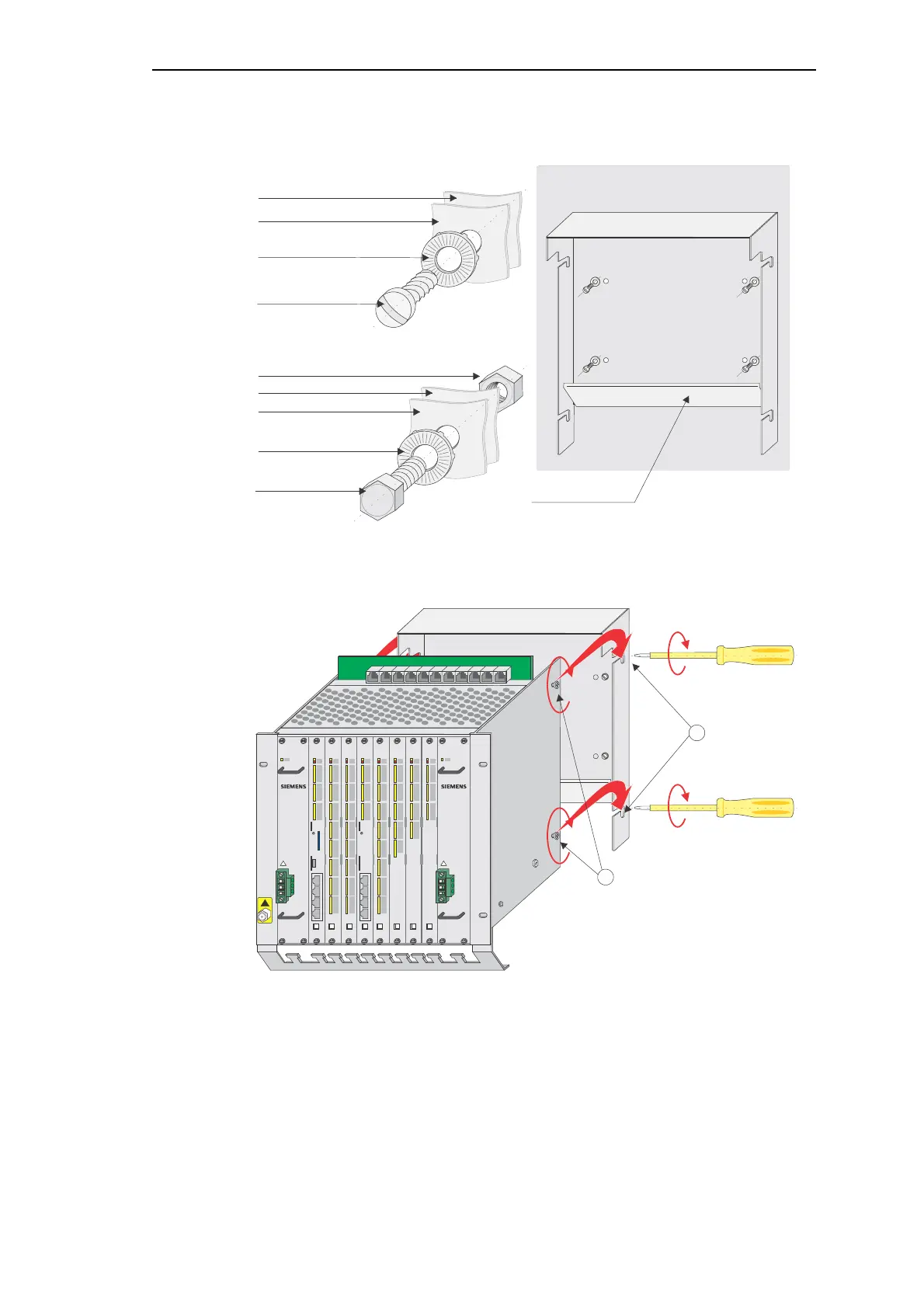

• fasten the wall bracket
• Screw the supplied screws (M6x12) half way into the board rack j, hang the board rack in
the wall bracket and tighten the fastening screws k.
TC2-087
Mounting with conventional screws
Mounting with self-tapping screws
Self-tapping screw
(DIN7500 5x12)
Contact washer
Rear cover
Cabinet rear panel
Screw M5x12 or 16
(DIN933 or DIN84)
Nut M5
Cabinet rear panel
Contact washer
Rear cover
Cabinet rear panel
SICAM AK
PS-263x
CP-2016
DI-2110 D I-2110
CP-2019
DO-2210 AI-2301 AI-2300
SICAM AK
PS-263xDI-2110
