Siemens SICAM RTU User Manual

Installation
SICAM RTUs, SICAM AK 3 User Manual 33
DC2-028-2.03, Edition 07.2016

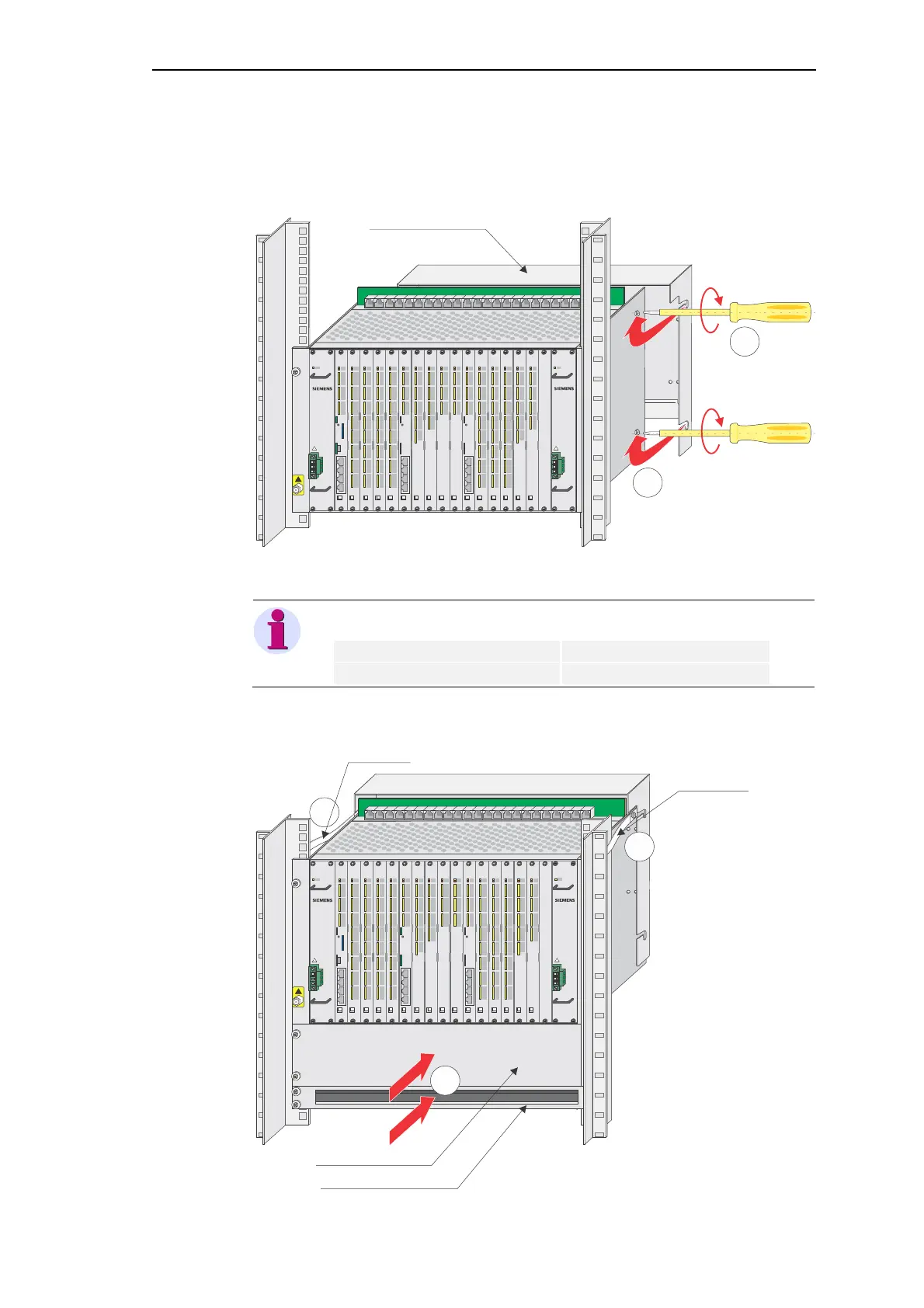

• To mount the optional wall bracket you have to screw the supplied screws (M6x12) half
way into the board rack, hang the wall bracket on the board rack „ and tighten the fas-
tening screws ….
• Attach the earthing straps to the cabinet/frame †
Note
The earthing straps are not part of the board rack. They have to be ordered separately..
EMC earthing strap 140/10/4,5-6,5 TF3-033 / 6MF13140DA330AA1
EMC earthing strap 300/16/6,5-8,5 TF3-031 / 6MF13140DA310AA1
• Tighten front cover and cable entry panel ‡
4
5
SICAM AK
PS-263x
SICAM AK
PS-263x
CP-2016 DI-2110 DO -2210 A I-2300 CP-2019 AI-2301 DI-2110 DI-2110 DO-2210 AI-2300CP-2019 AI-2301AI-2301 DI- 2110DI-2110 DI-2110
Wall bracket
TC2-011
SICAM AK
PS-263x
SICAM AK
PS-263x
CP-2016 DI-2110 DO-2210 AI-2300 CP-2019 AI-2301 DI-2110 DI-2110 DO-2210
AI-2300
CP-2019
AI-2301
AI-2301 DI-2110DI-2110
DI-2110
9
9
7
Cable entry panel
Earthing
strap
Front panel TF3-161
Earthing
strap
