Installation
SICAM RTUs, SICAM AK 3 User Manual 57
DC2-028-2.03, Edition 07.2016

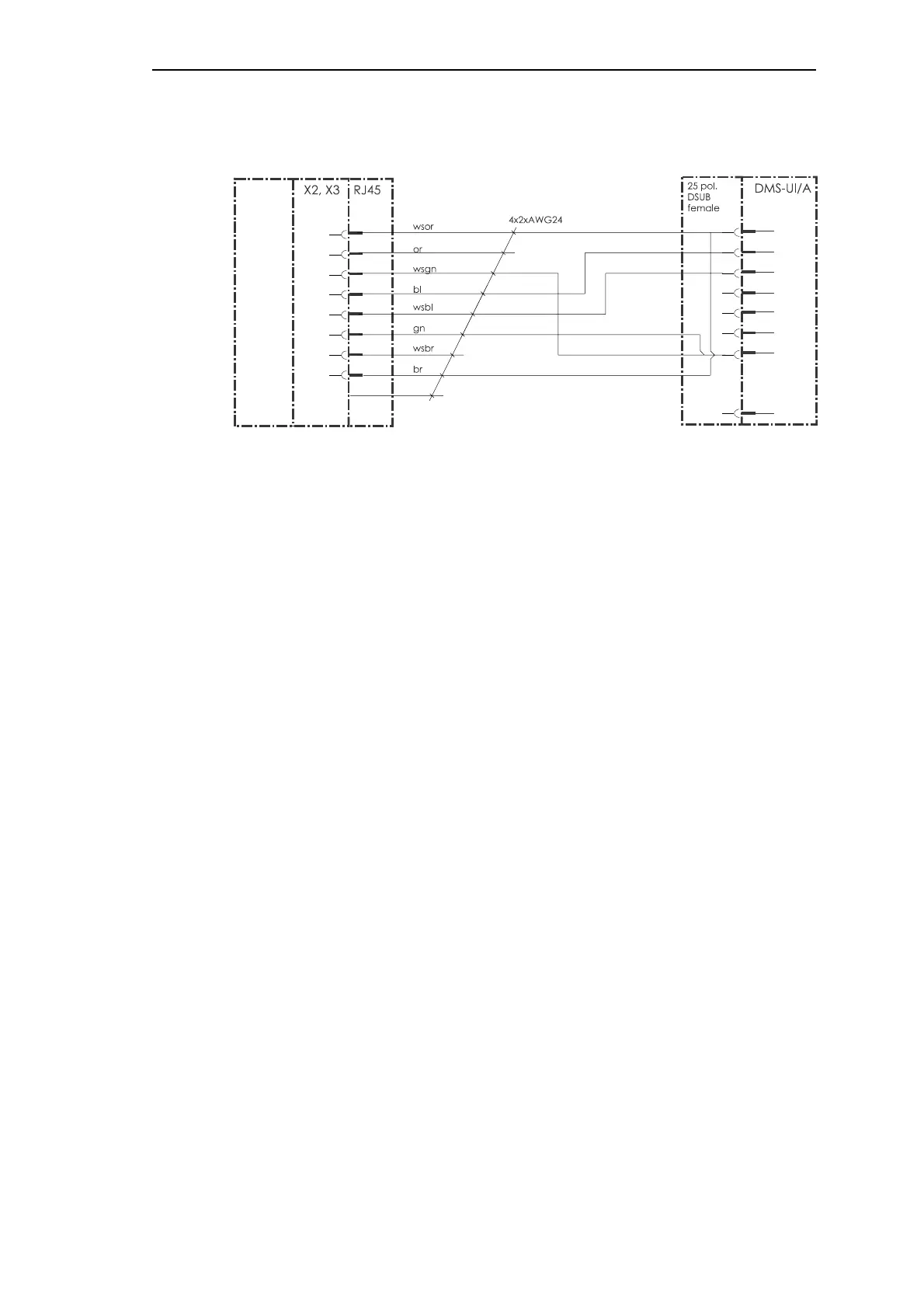

Cable Circuitry Connection Board – DMS
1
CTS
2
3
4
5
6
7
8
RTS
DSR
TXD
RXD
GND
DCD
DTR
CP-2016
CP-2019
1
2
3
4
5
6
7
25
TXD
RXD
GND
.
.
.
.
.
.
Screen
