Parameterizing the Mobile Panel
5.8 General settings
Mobile Panels 2nd Generation
118 Operating Instructions, 09/2018, A5E33876626-AC
5.8.10 Displaying information about the Mobile Panel
You can use this function to display device-specific information. You will need this
information when contacting Technical Support
(https://support.industry.siemens.com/cs/ww/en/
).
Requirement
The Control Panel is open.
Procedure

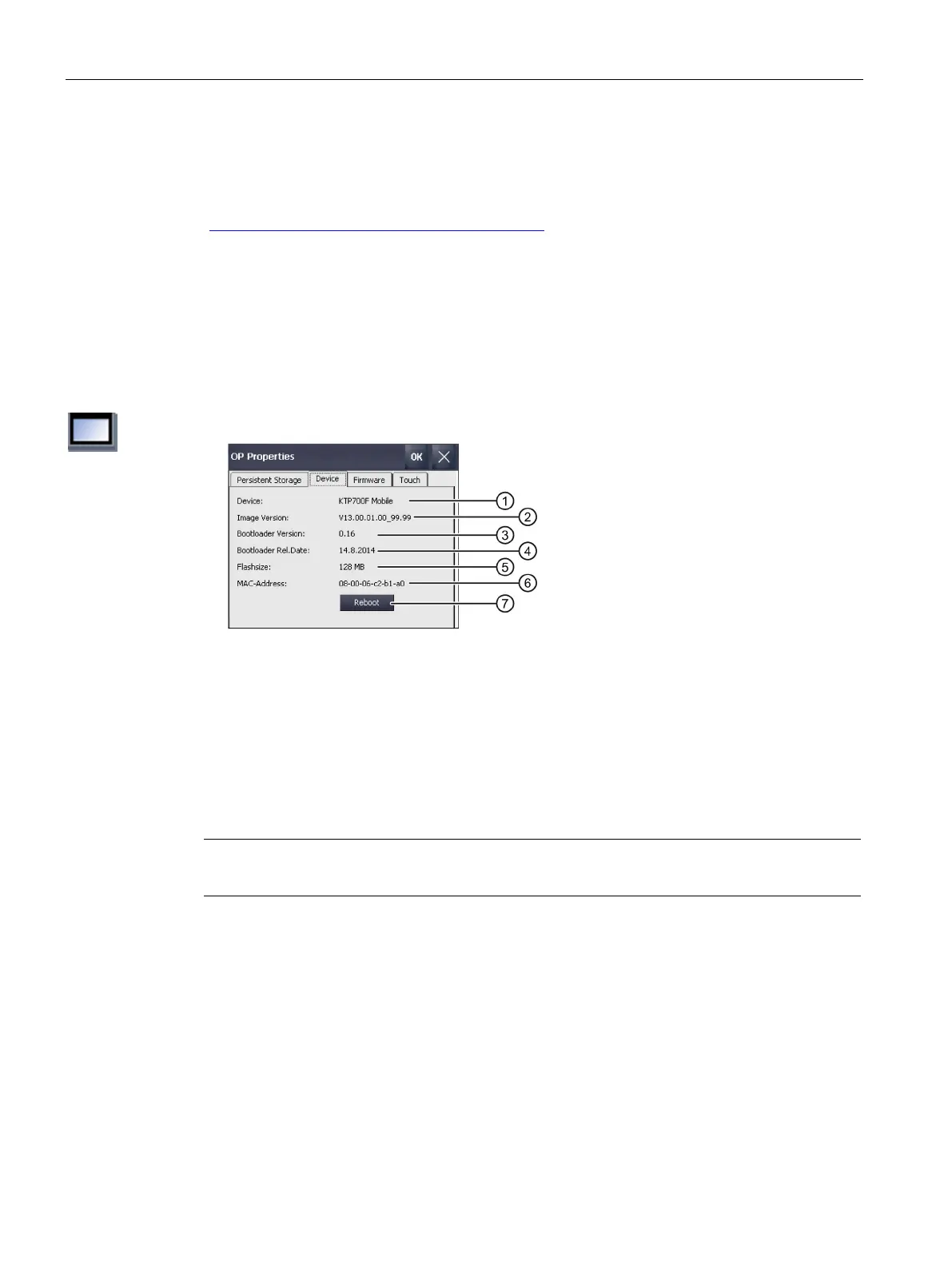

1. Open the "OP Properties" dialog using the "OP" icon.
2. Change to the "Device" tab.
①
HMI device name
②
Version of the HMI device image
③
Version of the bootloader
④
Bootloader release date
⑤
Size of the internal flash memory in which the HMI device image and project are stored
⑥
MAC address 1 of the HMI device
⑦
See "Restarting the HMI device (Page 101)."
Device-specific information is displayed.
Note
The size of the flash memory does not correspond to the available memory for a project.
5.8.11 Display firmware
You can use this function to obtain information about the firmware on the HMI device. You
will need this information when contacting Technical Support (Page 268).
Requirement
The Control Panel is open.

Siemens SIMATIC HMI series Specifications

General

Series	SIMATIC HMI
Category	Control Panel
Display Type	TFT LCD
Touch Screen	Yes (resistive or capacitive, depending on model)
Processor	Varies by model (e.g., ARM-based processors)
Storage	Varies by model (e.g., Flash memory, microSD card slot)
Communication Interfaces	Ethernet, USB
Protection Class	IP65 (front panel), depending on model
Operating Temperature	0 to 50°C, -20 to 60°C
Power Supply	24 V DC
Memory	128 MB, 256 MB
