Siemens SIMATIC HMI series User Manual

Parameterizing the Mobile Panel
5.9 Changing Internet settings
Mobile Panels 2nd Generation
Operating Instructions, 09/2018, A5E33876626-AC
121
6. If you want to use a proxy server, select the "Use a proxy server" check box.
Specify the address and port of the proxy server. Only the start of the addresses is
required. Separate the addresses with a semicolon.

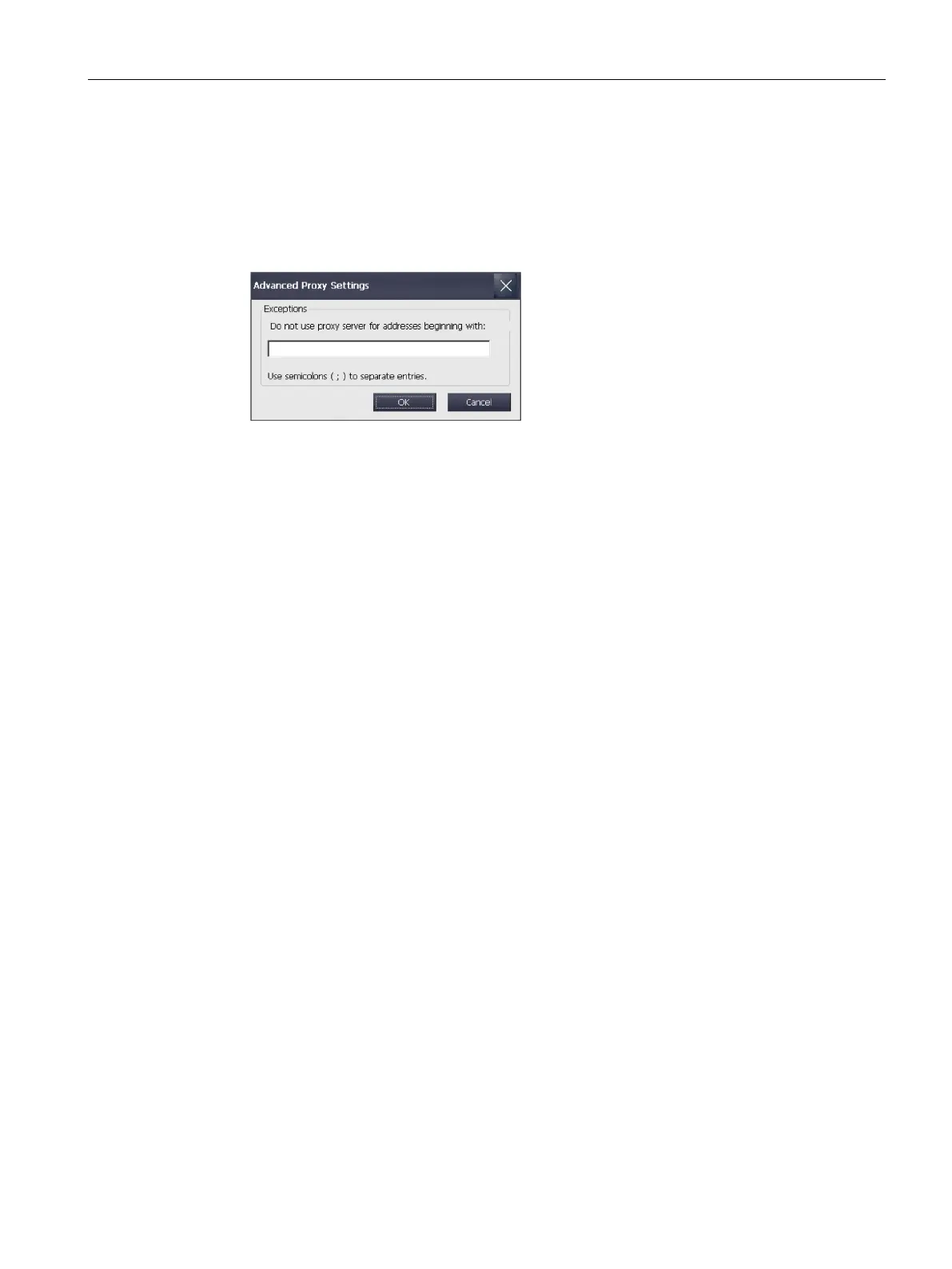

7. In order to prevent using the proxy server for certain addresses, press "Advanced".
The following dialog appears:
In the text box, enter the addresses for which the proxy server should not be used.
Only the start of the addresses is required. Separate the addresses with a semicolon.
Confirm your entries with "OK" or close the dialog with "Cancel".
8. To use a local address, select the "Bypass for local address" check box.
9. Confirm your entries.
The dialog closes.
The parameters for the LAN connection have been assigned.
5.9.3
Changing Internet security settings
A cookie typically contains information about websites visited; the Internet browser saves
this information automatically when you surf the Internet. You can restrict cookies on a tab
under "Internet Options".
Requirement
● The Control Panel is open.
● Your system administrator has provided the necessary information for the setting.

Siemens SIMATIC HMI series Specifications

General

Series	SIMATIC HMI
Category	Control Panel
Display Type	TFT LCD
Touch Screen	Yes (resistive or capacitive, depending on model)
Processor	Varies by model (e.g., ARM-based processors)
Storage	Varies by model (e.g., Flash memory, microSD card slot)
Communication Interfaces	Ethernet, USB
Protection Class	IP65 (front panel), depending on model
Operating Temperature	0 to 50°C, -20 to 60°C
Power Supply	24 V DC
Memory	128 MB, 256 MB
