Siemens SIMATIC HMI series User Manual

Parameterizing the Mobile Panel
5.13 Configuring network operation
Mobile Panels 2nd Generation
Operating Instructions, 09/2018, A5E33876626-AC
133

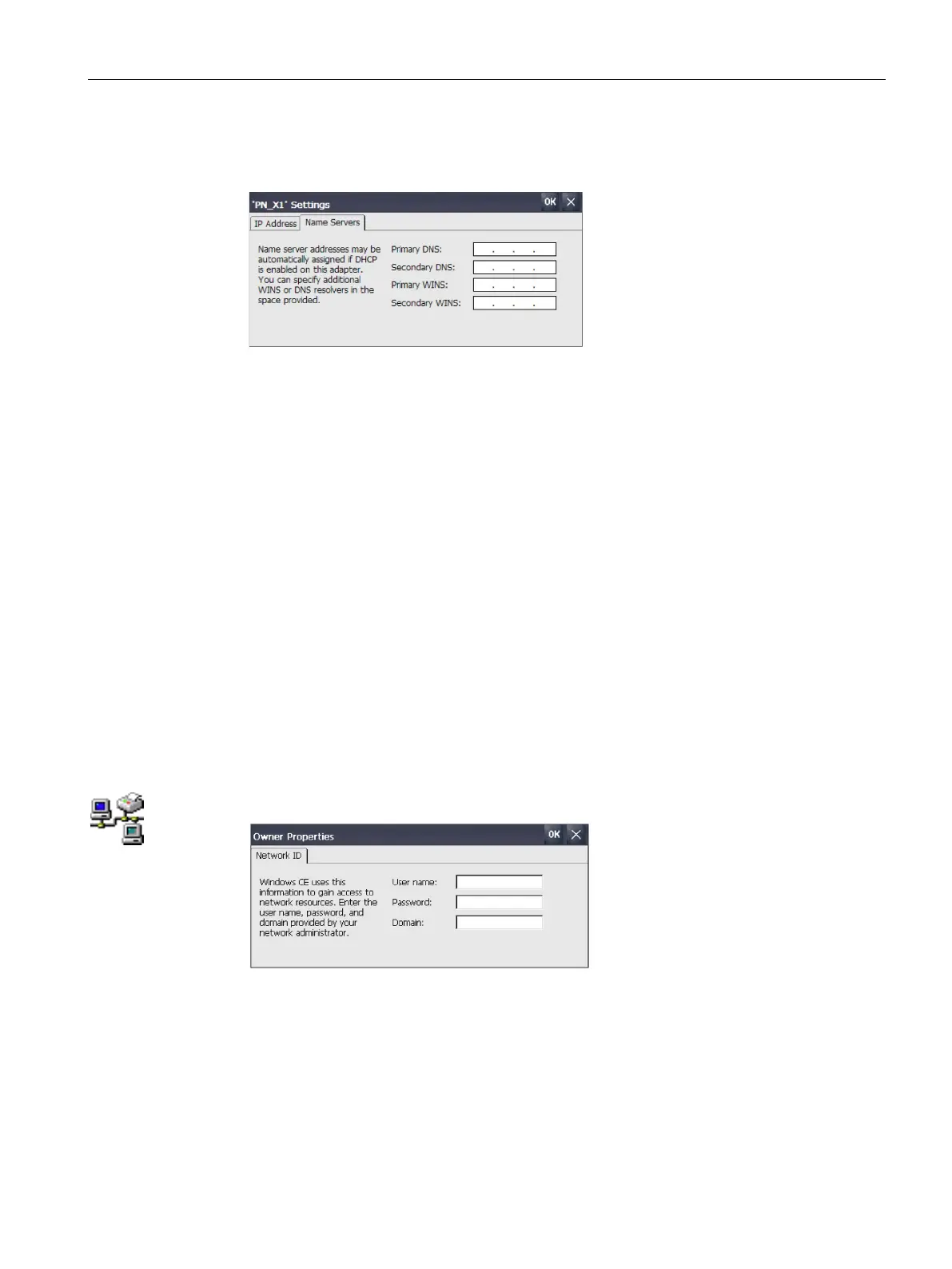

5. If a name server is used in the local network, open the "Name Servers" tab.
The following dialog appears:
6. Enter the respective addresses in the text boxes.
7. Confirm your entries.
The dialog closes.
8. Close the "Network&Dial-Up Connections" window.
The Control Panel is displayed.
The HMI device is addressed in the local network.
5.13.4 Specifying the logon data
Use this function to enter the information for logging onto local networks.
Requirement
● The Control Panel is open.
● Your system administrator has provided you with the necessary information.
Procedure
1. Open the "Network ID" dialog using the "Network ID" icon.
2. Enter your user name in the "User name" text box.
3. Enter your password in the "Password" text box.
4. Enter the name of your assigned domain in the "Domain" text box.
5. Confirm your entries with "OK".
The dialog closes.
The logon data has now been set.

Siemens SIMATIC HMI series Specifications

General

Series	SIMATIC HMI
Category	Control Panel
Display Type	TFT LCD
Touch Screen	Yes (resistive or capacitive, depending on model)
Processor	Varies by model (e.g., ARM-based processors)
Storage	Varies by model (e.g., Flash memory, microSD card slot)
Communication Interfaces	Ethernet, USB
Protection Class	IP65 (front panel), depending on model
Operating Temperature	0 to 50°C, -20 to 60°C
Power Supply	24 V DC
Memory	128 MB, 256 MB
