Technical specifications
11.9 Interface description for Mobile Panel
Mobile Panels 2nd Generation
Operating Instructions, 09/2018, A5E33876626-AC
243

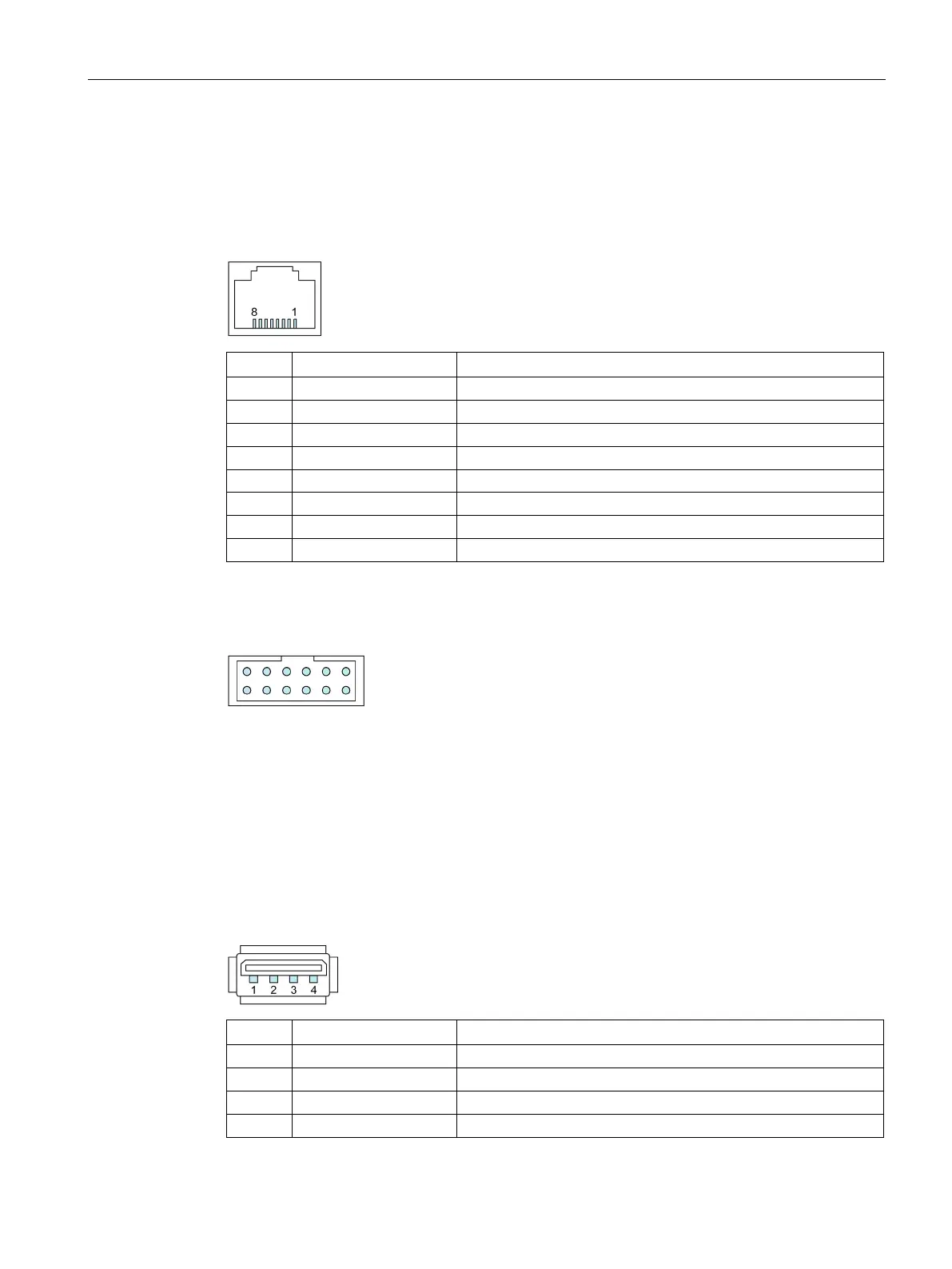

11.9
Interface description for Mobile Panel
11.9.1
Internal interface X1P1
PROFINET (LAN), RJ45 socket
Pin
Name
Meaning
1
Tx+
Data output +
2
Tx–
Data output -
3
Rx+
Data input +
4
NC
Not assigned
5
NC
Not assigned
6
Rx–
Data input -
7 NC Not assigned
8
NC
Not assigned
11.9.2
Internal interface X80
12-pin post connector
The post connector has connections for:
● Power supply
● STOP circle
● Enable circuit
● Signals for transmitting the box ID
11.9.3
External interface X61
USB Type A
Pin
Name
Meaning
1
VBUS
+5 V, fused
2
D-
Data channel, bidirectional
3
D+
Data channel, bidirectional
4
GND
Ground
