Installing system components
3.6 Connecting the connection box
Mobile Panels 2nd Generation
60 Operating Instructions, 09/2018, A5E33876626-AC
Connect the connection box in the following sequence:
1. Functional grounding
2. Power supply
3. Control via PROFINET (LAN)
4. Other Ethernet devices, such as an additional connection box
Opening and closing connection box standard and connection box advanced
The connection boxes standard and advanced must be opened for connecting and setting
the box ID. To avoid damage to the connection box, read the information in the section
"General safety instructions (Page 31)" about working in and on electrical systems and about
ESD.
● The connection box is de-energized.
● Torque screwdriver with T10 insert
Screw glands M16x1.5 for cable diameters 5 to 10 mm

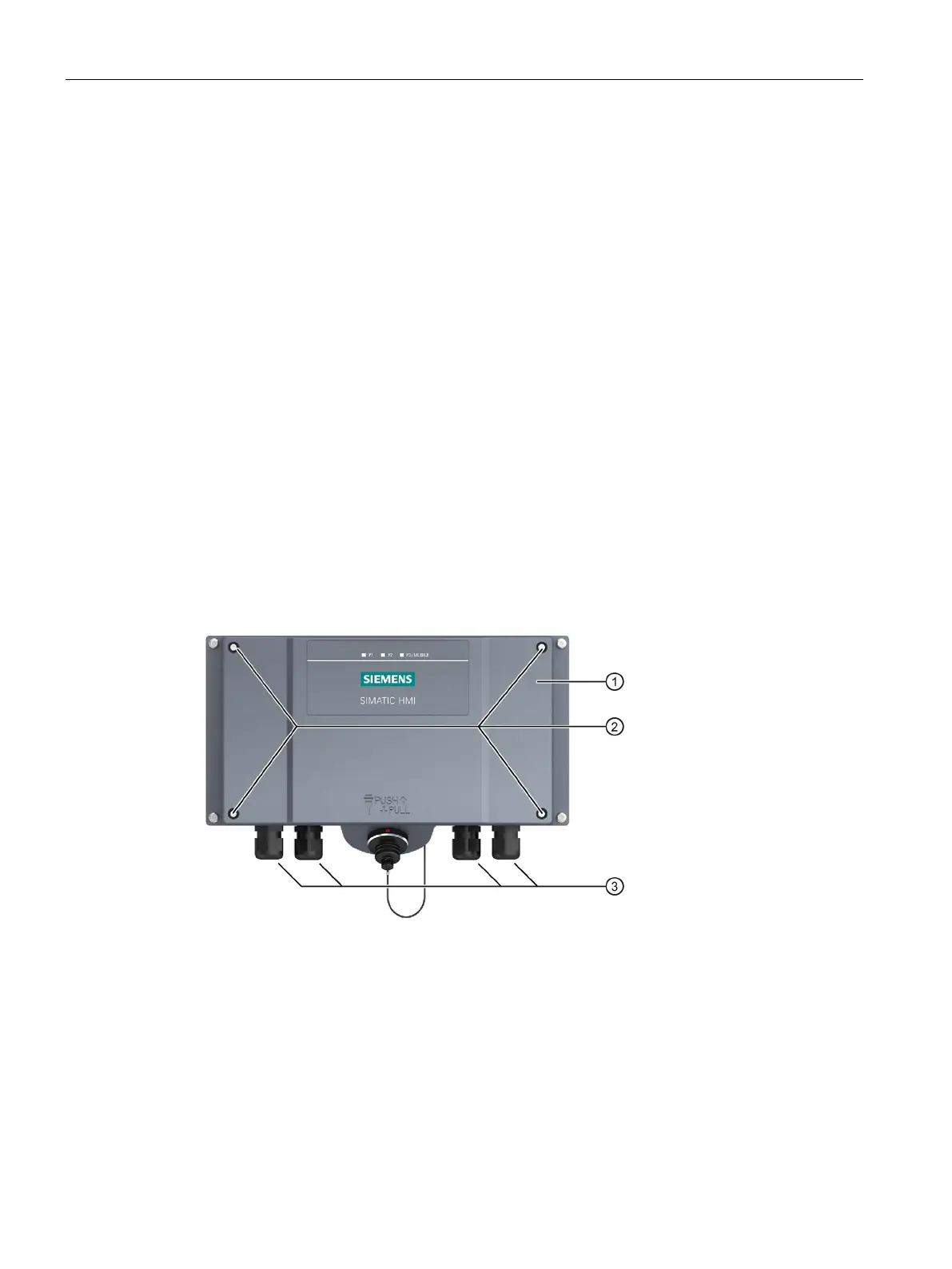

1. Loosen the 4 screws ②.
2. Lift the cover
① carefully, because the seal may stick to the lid and can be pulled out.
3. Remove the screws and the cover.
