Siemens SIMATIC HMI series User Manual

Configuring the Mobile Panel
6.1 Configuration in WinCC
Mobile Panels 2nd Generation
Operating Instructions, 09/2018, A5E33876626-AC
169
6.1.2
Adding the Mobile Panel to the project
Requirement
● A project is open.
● A controller has been added to the project.
● Subnet and IP address of the controller are configured.
Procedure

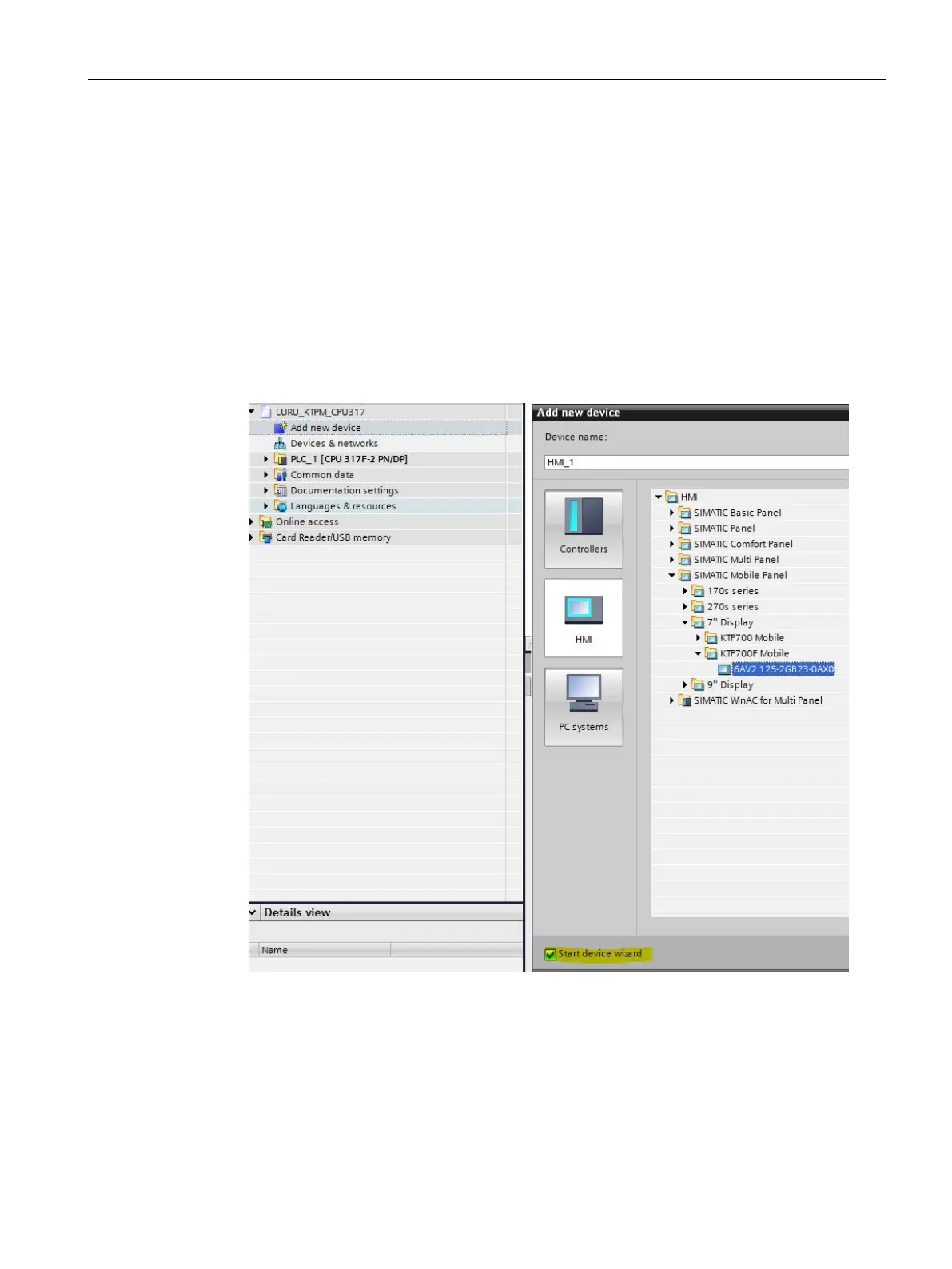

1. Double-click "Add new device" in the project tree.
2. In the "Add new device" dialog, click "HMI".

Siemens SIMATIC HMI series Specifications

General

Series	SIMATIC HMI
Category	Control Panel
Display Type	TFT LCD
Touch Screen	Yes (resistive or capacitive, depending on model)
Processor	Varies by model (e.g., ARM-based processors)
Storage	Varies by model (e.g., Flash memory, microSD card slot)
Communication Interfaces	Ethernet, USB
Protection Class	IP65 (front panel), depending on model
Operating Temperature	0 to 50°C, -20 to 60°C
Power Supply	24 V DC
Memory	128 MB, 256 MB
