Installing system components
3.5 Connecting the Mobile Panel
Mobile Panels 2nd Generation
54 Operating Instructions, 09/2018, A5E33876626-AC
3.5.4
Connecting a Configuring PC
You can transfer the following data between the HMI device and a configuration PC:
● Project
● HMI device image
● Additional project data
Procedure
1. Connect the configuration PC to an Ethernet network.
2. Connect the Mobile Panel to a connection box which is connected to the configuration PC
via the Ethernet network.

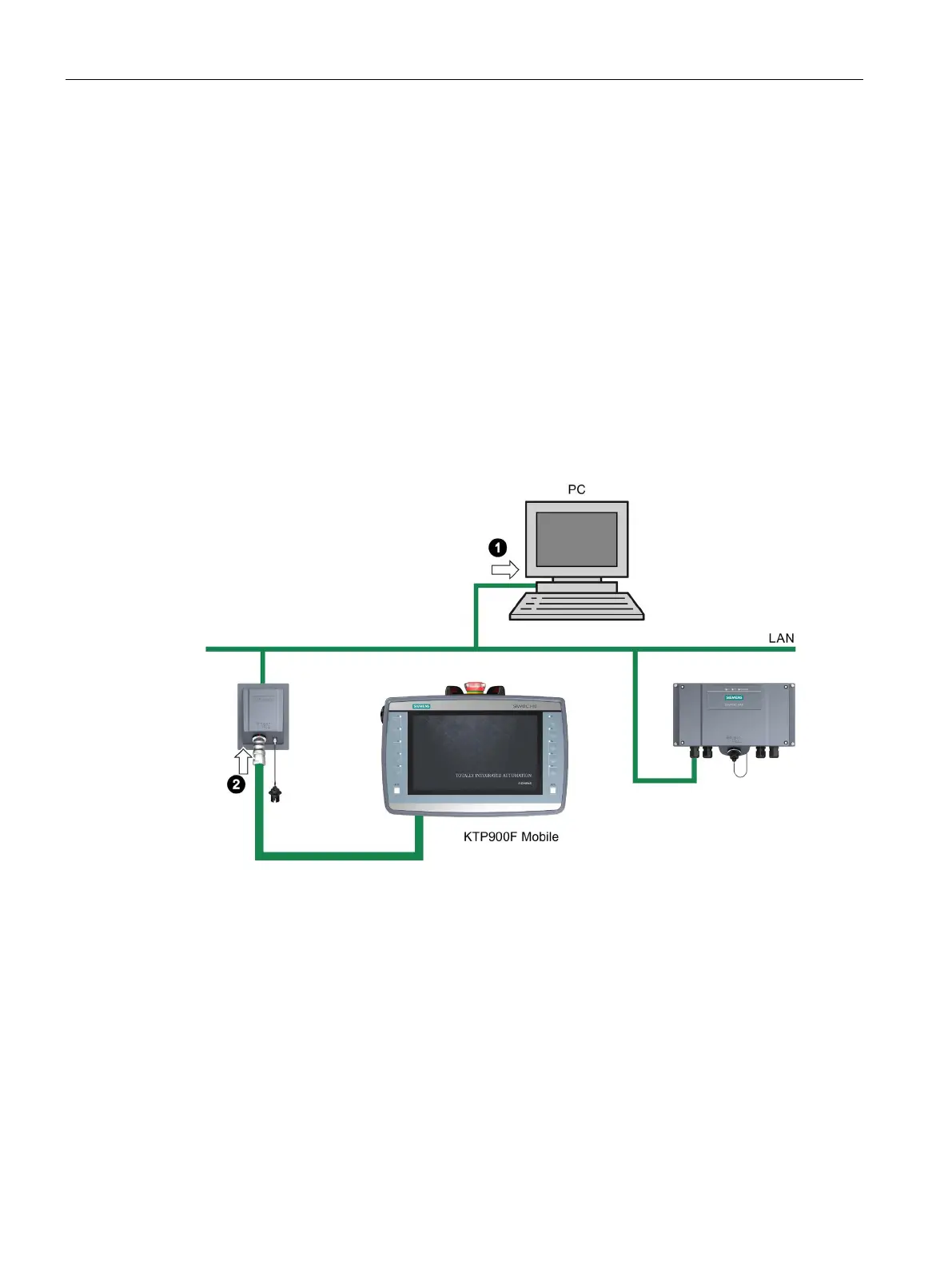

The figure below shows an example of how to connect a KTP900F Mobile to a
connection box compact.
Section "Transferring a project with WinCC (Page 191)" describes how to transfer a project
from the configuration PC to the Mobile Panel.

Siemens SIMATIC HMI series Specifications

General

Series	SIMATIC HMI
Category	Control Panel
Display Type	TFT LCD
Touch Screen	Yes (resistive or capacitive, depending on model)
Processor	Varies by model (e.g., ARM-based processors)
Storage	Varies by model (e.g., Flash memory, microSD card slot)
Communication Interfaces	Ethernet, USB
Protection Class	IP65 (front panel), depending on model
Operating Temperature	0 to 50°C, -20 to 60°C
Power Supply	24 V DC
Memory	128 MB, 256 MB
