Siemens SIMATIC HMI series User Manual

Mobile Panels 2nd Generation
Operating Instructions, 09/2018, A5E33876626-AC
77
Handling the Mobile Panel
4
4.1
Holding the Mobile Panel and attaching it to the wall-mounting
bracket
Holding the HMI device

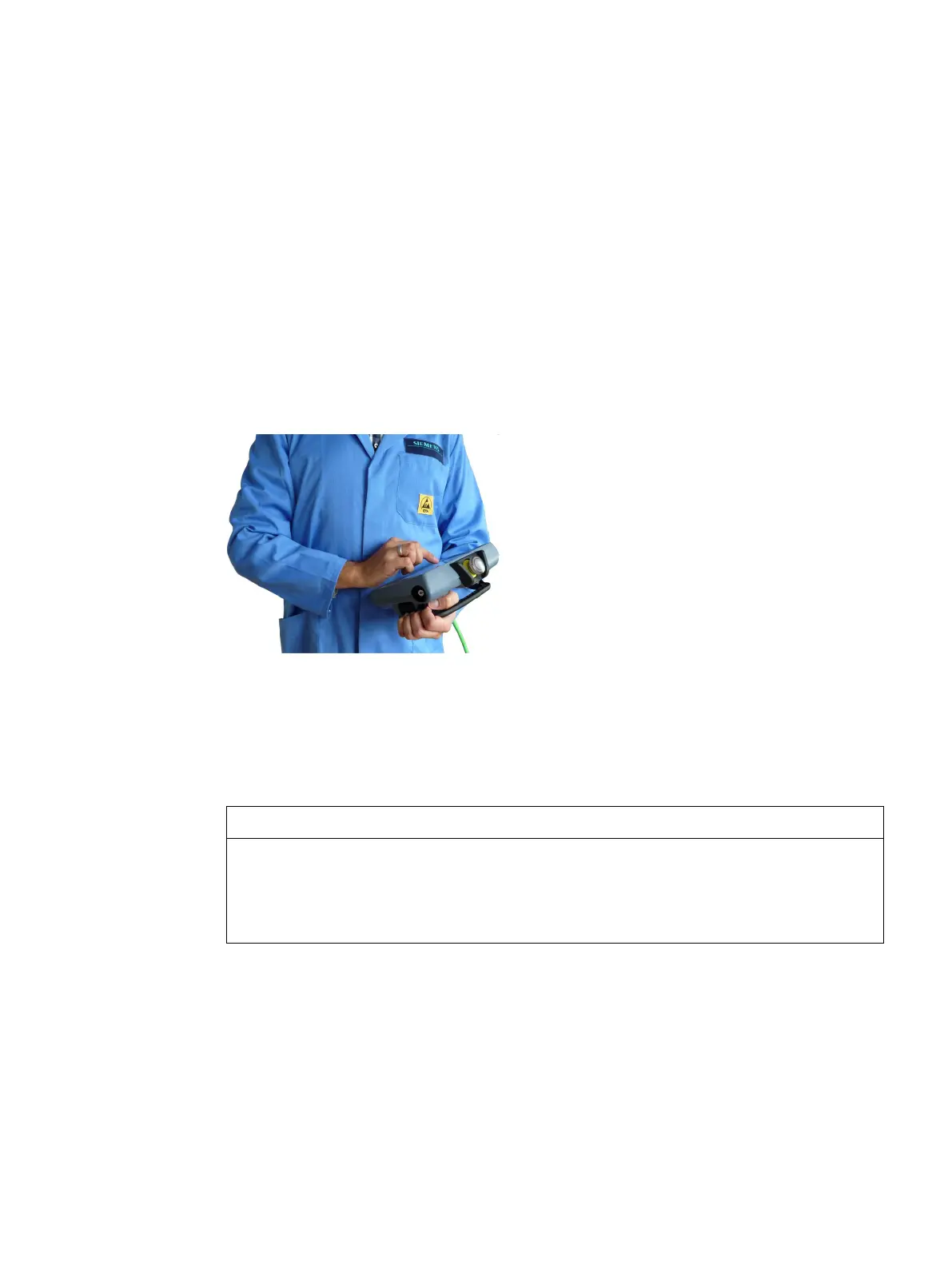

The figure below shows you how to hold the Mobile Panel on your forearm (here: KTP900F
Mobile).
When holding the Mobile Panel as shown, you can, for example, perform movements in the
fail-safe automation system during setup mode.
The HMI device is easy to operate when held on the forearm as shown. With your free hand,
you can operate all operator controls on the front of the device and the emergency stop /
stop button. You can activate the enabling button with the hand holding the HMI device. The
enabling button is optimally accessible.
NOTICE
Holding the HMI device during setup mode
Potentially dangerous movements can be controlled manually if setup mode is activated.
To ensure that the emergency stop / stop button and enabling button can be operated
quickly in a dangerous situation, the HMI device must be held on your forearm as shown.
If you are only entering data and are not controlling potentially dangerous movements, you
can hold the HMI device with both hands on the left and right instead of on your forearm.

Siemens SIMATIC HMI series Specifications

General

Series	SIMATIC HMI
Category	Control Panel
Display Type	TFT LCD
Touch Screen	Yes (resistive or capacitive, depending on model)
Processor	Varies by model (e.g., ARM-based processors)
Storage	Varies by model (e.g., Flash memory, microSD card slot)
Communication Interfaces	Ethernet, USB
Protection Class	IP65 (front panel), depending on model
Operating Temperature	0 to 50°C, -20 to 60°C
Power Supply	24 V DC
Memory	128 MB, 256 MB
