Handling the Mobile Panel
4.2 Keyswitches, function keys and illuminated pushbuttons
Mobile Panels 2nd Generation
Operating Instructions, 09/2018, A5E33876626-AC
79
Keyswitches, function keys and illuminated pushbuttons

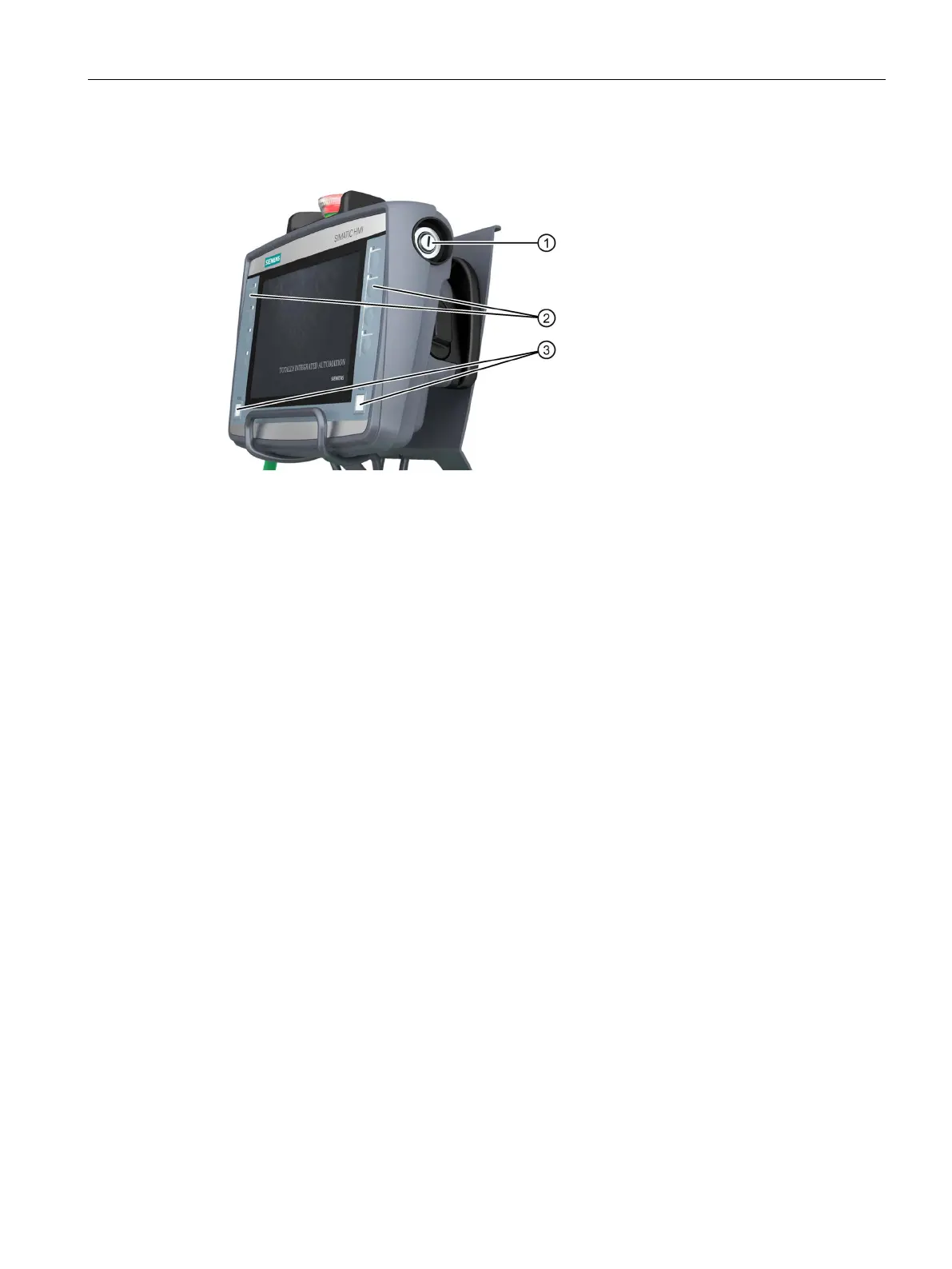

Keyswitch, for KTP700F Mobile and KTP900F Mobile
Illuminated pushbuttons K1 and K2
● Keyswitch
The keyswitch is, for example, used to lock functions that can be triggered by the HMI
device. The corresponding configuration is described in the section
"Evaluating the key-operated switch by means of system functions (Page 188)".
● Function keys
The function keys can be used for fast digital input. The function depends on the
corresponding project. The corresponding configuration is described in the section
"Function keys (Page 204)".
The LED can light up to signal that the corresponding function has been triggered.
● Illuminated pushbutton
and can be used for high-speed digital input. The illuminated pushbuttons are momentary
action switches without latching mechanism. Lights can signal that the corresponding
function has been triggered. The function depends on the corresponding project. The
corresponding configuration is described in the section
"Controlling and evaluating the illuminated pushbutton by means of system functions
(Page 187)".
