11.11 Interfaces of the connection box standard and connection box advanced
Mobile Panels 2nd Generation
248 Operating Instructions, 09/2018, A5E33876626-AC
11.11
Interfaces of the connection box standard and connection
box advanced
11.11.1
Position of the interfaces

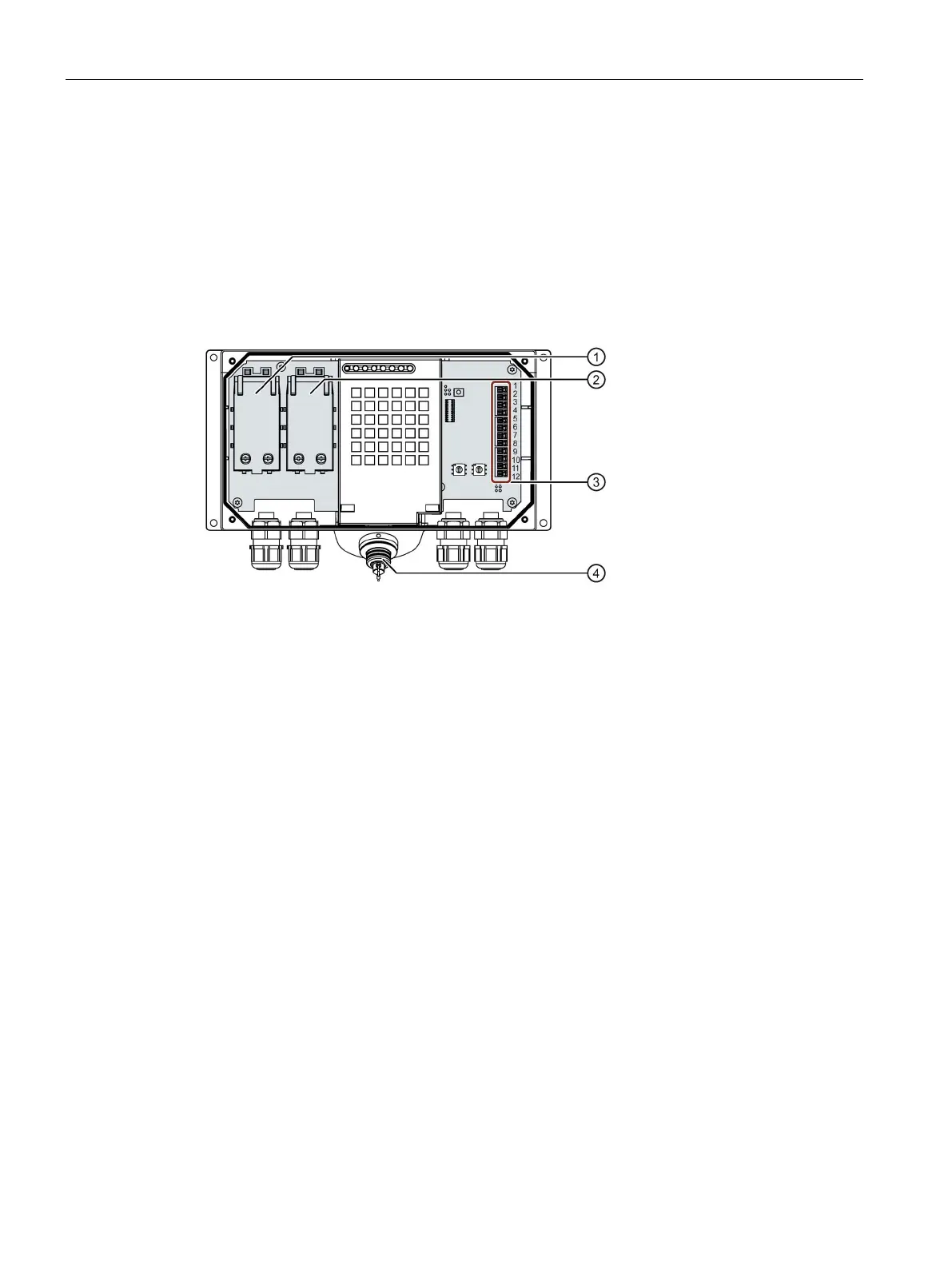

The figure below shows the position of the interfaces in the connection box standard and in
the connection box advanced that are relevant for connecting the data and power supply
cables.
①
Fast Connector X1
②
Fast Connector X2
③
Interface X10
④
Connection socket (X300)

Siemens SIMATIC HMI series Specifications

General

Series	SIMATIC HMI
Category	Control Panel
Display Type	TFT LCD
Touch Screen	Yes (resistive or capacitive, depending on model)
Processor	Varies by model (e.g., ARM-based processors)
Storage	Varies by model (e.g., Flash memory, microSD card slot)
Communication Interfaces	Ethernet, USB
Protection Class	IP65 (front panel), depending on model
Operating Temperature	0 to 50°C, -20 to 60°C
Power Supply	24 V DC
Memory	128 MB, 256 MB
