Parameterizing the Mobile Panel
5.6 Control Panel
Mobile Panels 2nd Generation
90 Operating Instructions, 09/2018, A5E33876626-AC
Procedure
1. Operate a password-protected desktop icon, the taskbar or the "Settings" or "Taskbar"
button in the Start Center.

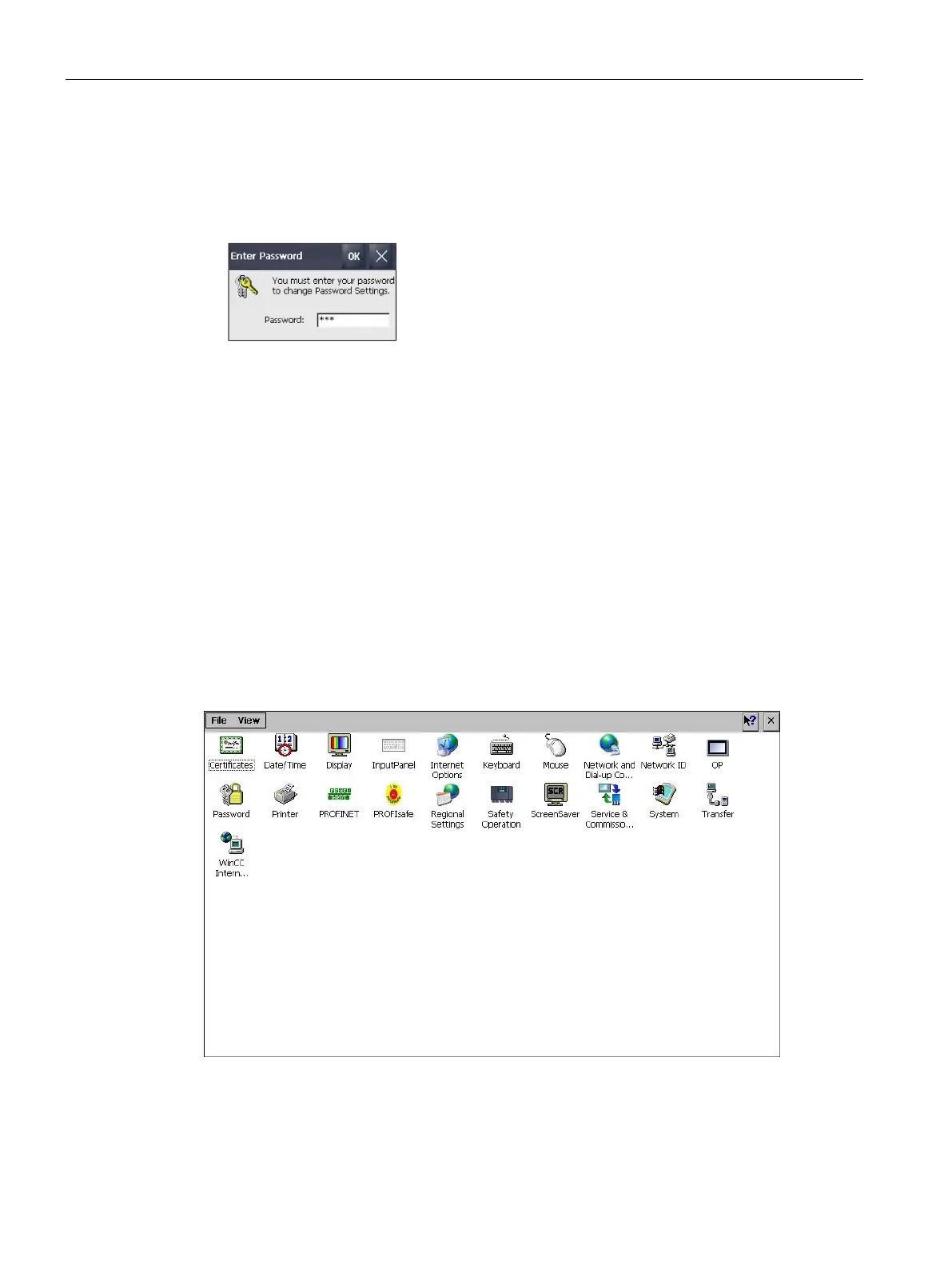

The following dialog appears:
2. Enter the required password.
3. Confirm your entry with "OK".
The dialog will close and the selected operator control open.
5.6
Control Panel
5.6.1
Opening the settings
The Control Panel can be opened as follows:
● With the "Settings" button in the Start Center.
● In the Windows CE start menu with "Settings > Control Panel".
The figure below shows the open Control Panel.
