5.10 Enabling PROFINET
Mobile Panels 2nd Generation
126 Operating Instructions, 09/2018, A5E33876626-AC
10. Confirm your entries with "OK".
The dialog closes.
The list of certificates on the HMI device is updated.
5.10 Enabling PROFINET
The HMI device communicates with the PLC over Ethernet. PROFINET must be enabled
before you can use the following functions:
● Fail-safe operation with emergency stop/stop button and enabling button over PROFIsafe
● Use of PROFINET direct keys
Requirement
The Control Panel is open.
Procedure

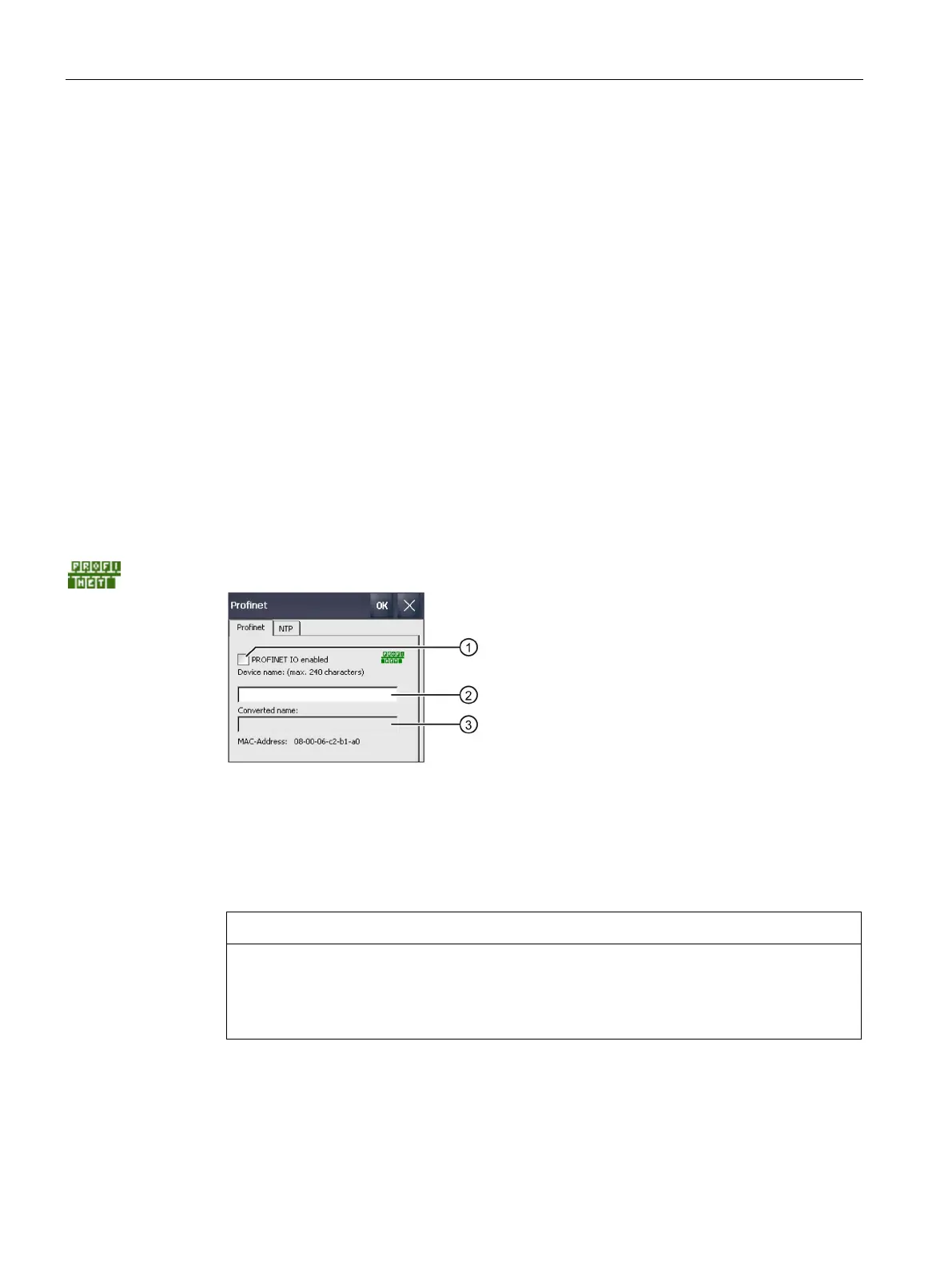

1. Open the "Profinet" dialog using the "PROFINET" icon.
①
Enables or disables the PROFINET IO direct keys
②
Text box for the device name
③
MAC address of the HMI device
2. Select the "PROFINET IO enabled" check box.
3. Enter the PROFINET device name of the HMI device.
NOTICE
Device name must correspond to HW Config
If the device name does not match the device name entered in the HW Config of
STEP 7, the project will start without PROFIsafe connection. Use the device name from
the HW Config of STEP 7.

Siemens SIMATIC HMI series Specifications

General

Series	SIMATIC HMI
Category	Control Panel
Display Type	TFT LCD
Touch Screen	Yes (resistive or capacitive, depending on model)
Processor	Varies by model (e.g., ARM-based processors)
Storage	Varies by model (e.g., Flash memory, microSD card slot)
Communication Interfaces	Ethernet, USB
Protection Class	IP65 (front panel), depending on model
Operating Temperature	0 to 50°C, -20 to 60°C
Power Supply	24 V DC
Memory	128 MB, 256 MB
