Installing system components
3.5 Connecting the Mobile Panel
Mobile Panels 2nd Generation
Operating Instructions, 09/2018, A5E33876626-AC
55
Replacing the connecting cable
Requirement
● The connecting cable is unplugged from the connection box.
● You have taken precautions to protect your device, see section "Connection information
(Page 51)".
● One torque screwdriver with cross-tip insert size 2
1. Place the HMI device on its front.

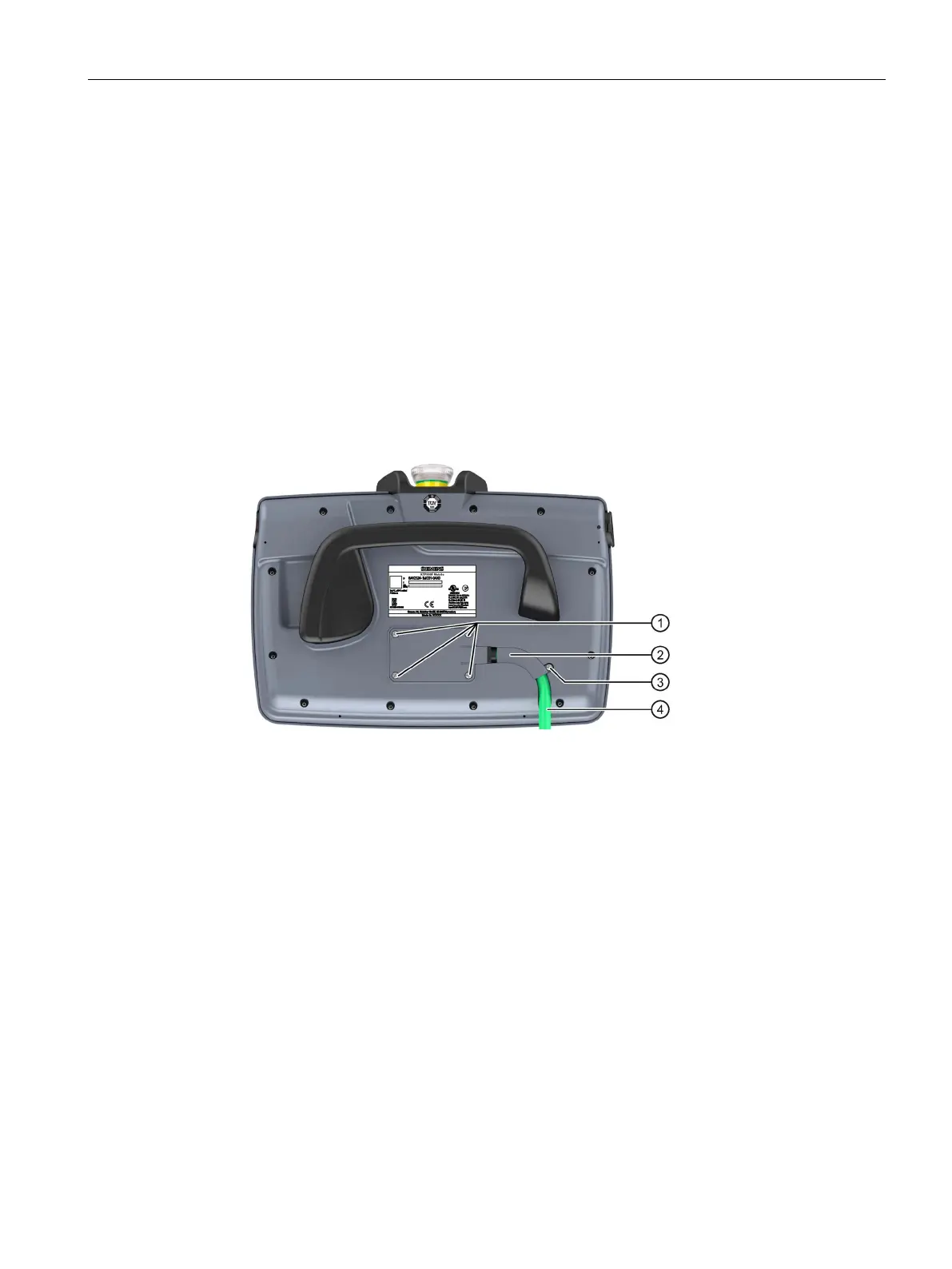

Screws for terminal compartment cover
Retainer, not for KTP400F Mobile
Screw for the retainer, not with KTP400F Mobile
2. All Mobile Panels 2nd Generation with the exception of the KTP400F Mobile: Loosen the
screw
③.
3. Loosen the screws
① of the terminal compartment cover.
4. Lift the terminal compartment cover to expose the connecting cable.
