Configuring the Mobile Panel
6.1 Configuration in WinCC
Mobile Panels 2nd Generation
170 Operating Instructions, 09/2018, A5E33876626-AC

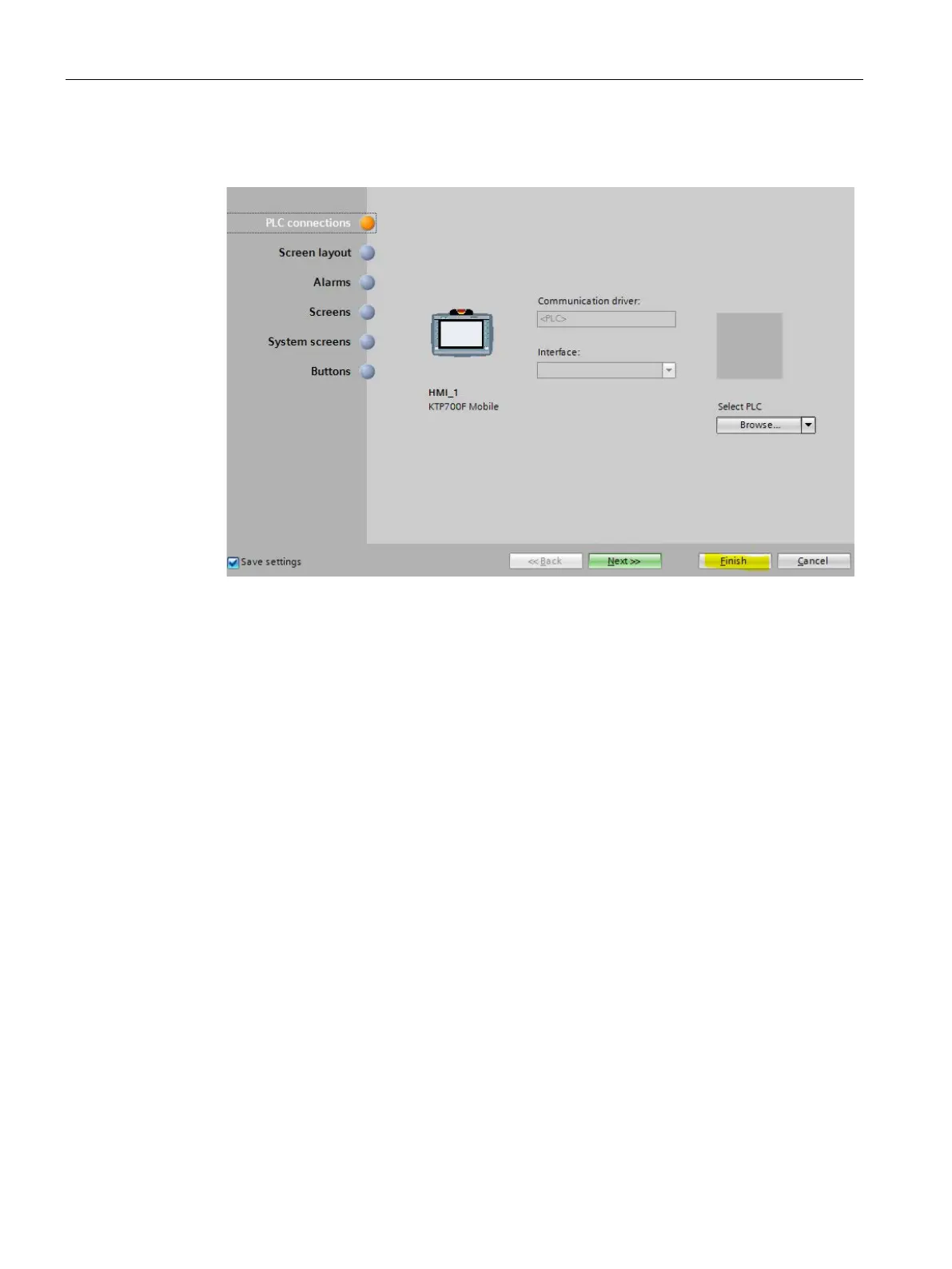

3. Select an HMI device of the type KTP Mobile or KTP F Mobile for an F-system and select
the "Start Device Wizard" checkbox.
4. Select "Finish".
The Mobile Panel is added to the project.
6.1.3
Configuring a fail-safe Mobile Panel
The emergency stop or stop can be evaluated either by a hardwired F-system or by a
PROFIsafe-based F-system.
●
For a hardwired F-system:
The fail-safe Mobile Panel must be configured like a
non-
fail-safe Mobile Panel. The
"PROFIsafe" option must not be activated.
● PROFIsafe-based F-system:
The "PROFIsafe" option must be enabled for the fail-safe Mobile Panel.
The following procedure is for configuring a fail-safe Mobile Panel.

Siemens SIMATIC HMI series Specifications

General

Series	SIMATIC HMI
Category	Control Panel
Display Type	TFT LCD
Touch Screen	Yes (resistive or capacitive, depending on model)
Processor	Varies by model (e.g., ARM-based processors)
Storage	Varies by model (e.g., Flash memory, microSD card slot)
Communication Interfaces	Ethernet, USB
Protection Class	IP65 (front panel), depending on model
Operating Temperature	0 to 50°C, -20 to 60°C
Power Supply	24 V DC
Memory	128 MB, 256 MB
