Installing system components
3.3 Installing the connection box standard and connection box advanced
Mobile Panels 2nd Generation
Operating Instructions, 09/2018, A5E33876626-AC
45
3.2.2
Fastening the connection box compact
Read the instructions for work in and on electrical systems and on ESD in
"General safety instructions (Page 31)".
Requirement
● 4 mounting clips
● 1 torque screwdriver with slot insert size 2
Procedure
1. Check for damage to the mounting seal on the connection box.
Do not install a connection box with a damaged mounting seal.
2. Insert the connection box in the mounting cutout.
Secure the connection box to prevent it from falling out.

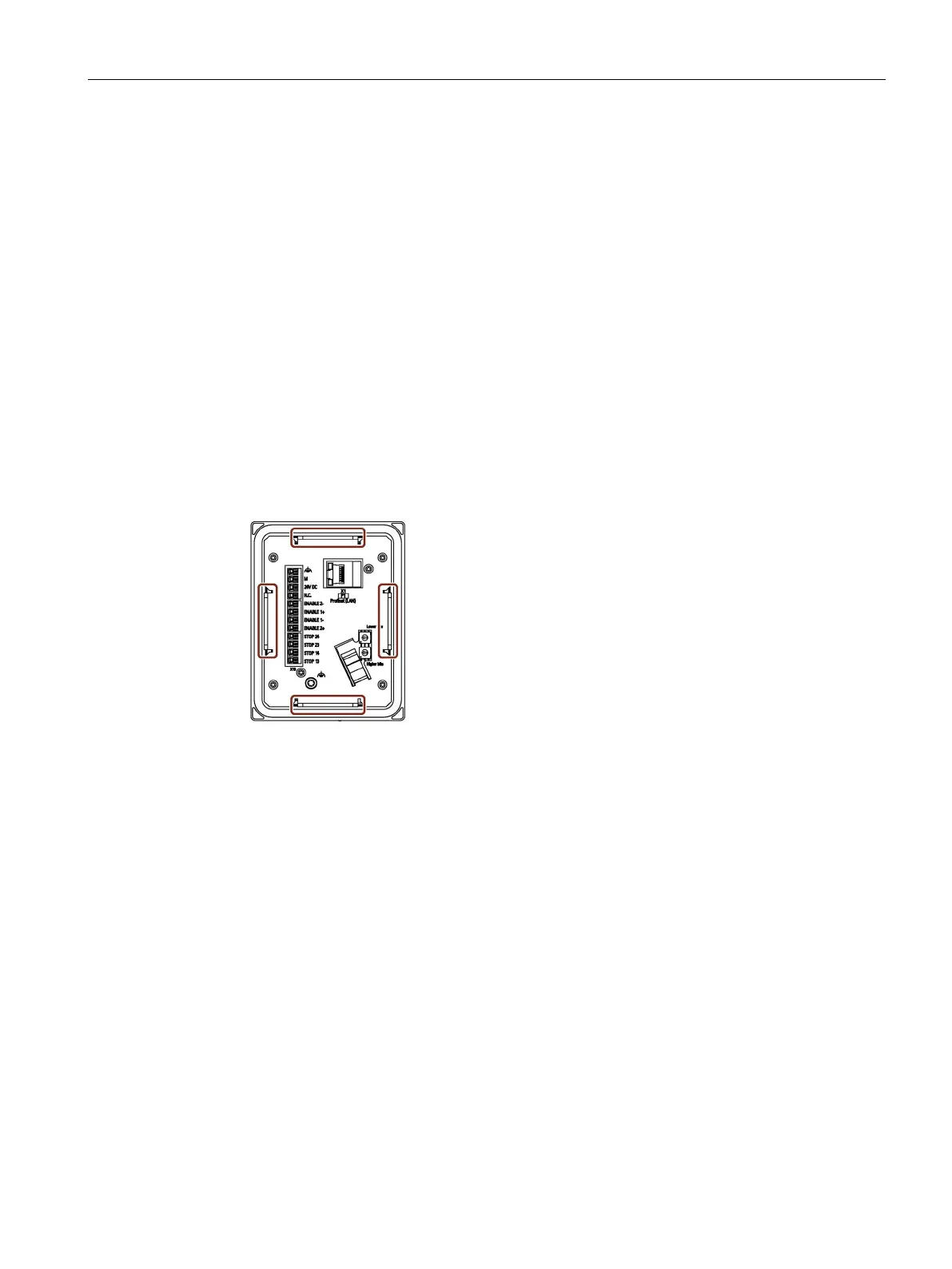

3. Place one mounting clip into each of the four cutouts marked.
4. Fasten the mounting clips.
The permitted torque is 0.2 Nm.
You can find information on the electrical connection of the connection box in the section
"Connecting the connection box (Page 59)".
3.3
Installing the connection box standard and connection box
advanced
3.3.1
Mounting position and clearance
Mounting position
The connection box is designed to be mounted on a vertical surface of a stationary
enclosure.
The connection box standard and connection box advanced can be installed in any mounting
position.

Siemens SIMATIC HMI series Specifications

General

Series	SIMATIC HMI
Category	Control Panel
Display Type	TFT LCD
Touch Screen	Yes (resistive or capacitive, depending on model)
Processor	Varies by model (e.g., ARM-based processors)
Storage	Varies by model (e.g., Flash memory, microSD card slot)
Communication Interfaces	Ethernet, USB
Protection Class	IP65 (front panel), depending on model
Operating Temperature	0 to 50°C, -20 to 60°C
Power Supply	24 V DC
Memory	128 MB, 256 MB
