Parameterizing the Mobile Panel
5.7 Configuring operation
Mobile Panels 2nd Generation
Operating Instructions, 09/2018, A5E33876626-AC
99
5.7.4 Setting the double-click
You start applications in the Control Panel and in the operating system with a double-click. A
double-click corresponds to two brief touches.
In the "Mouse Properties" dialog, make the following settings for operation with the touch
screen:
● Interval between two touch contacts on the touch screen
● Interval between the two clicks of a double-click
Requirement
The Control Panel is open.
Procedure

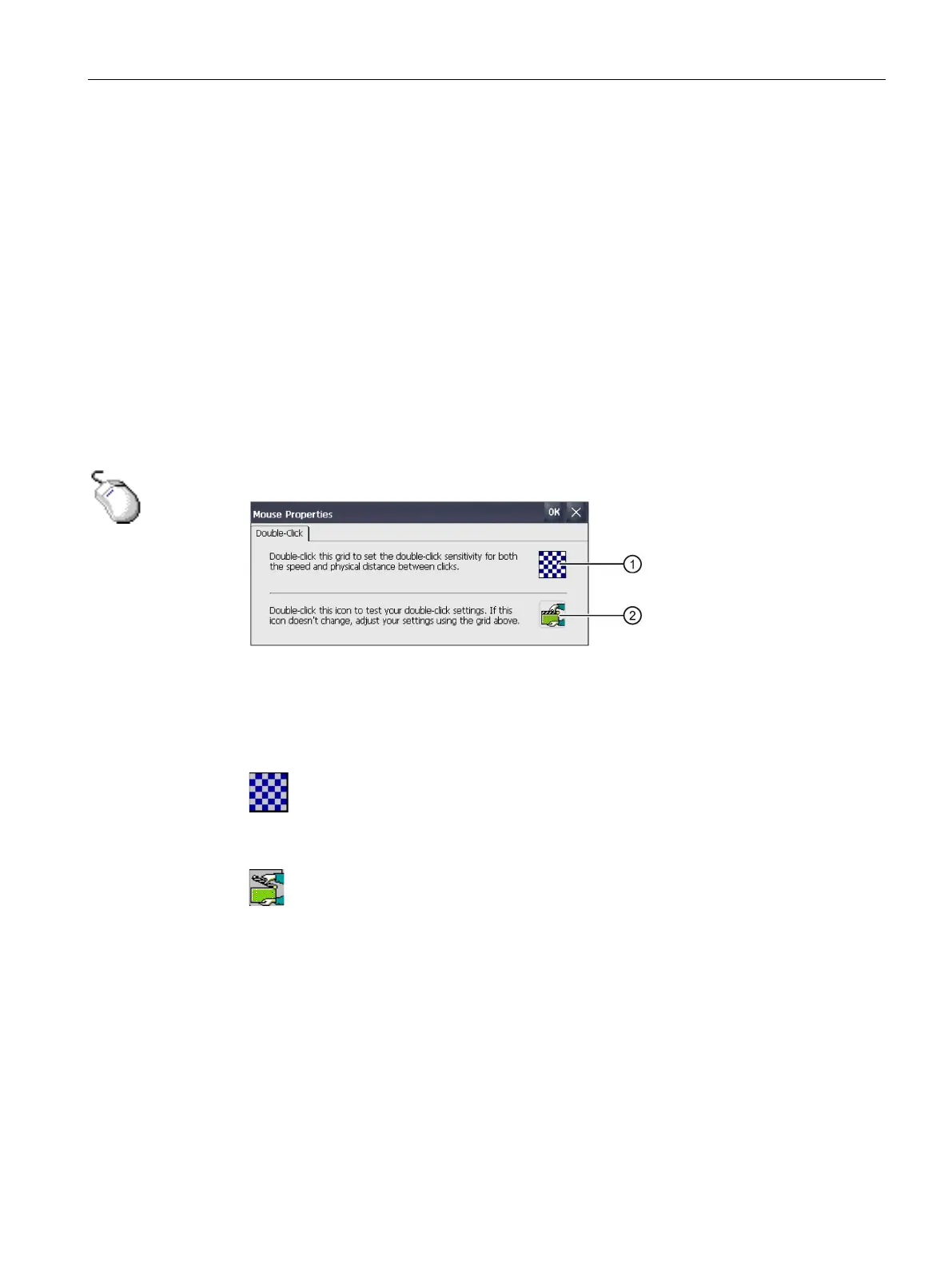

1. Open the "Mouse Properties" dialog using the "Mouse" icon.
①
"Checkered pattern" icon
②
"Test" icon
2. Double-click the "Checkered pattern" icon.
After the double-click, the colors in the pattern are inverted. White boxes become gray.
The timeframe for the double-click is saved.
3. Check the double-click: Press the "Test" icon twice in succession. If the double-click is
recognized, the "Test" icon is displayed as follows:
4. Repeat steps 2 and 3 as necessary until the settings are okay.
5. Confirm your entry with "OK".
The dialog closes.
The double-click adjustment is completed.
