Siemens SIMATIC HMI series User Manual

Parameterizing the Mobile Panel
5.9 Changing Internet settings
Mobile Panels 2nd Generation
Operating Instructions, 09/2018, A5E33876626-AC
125

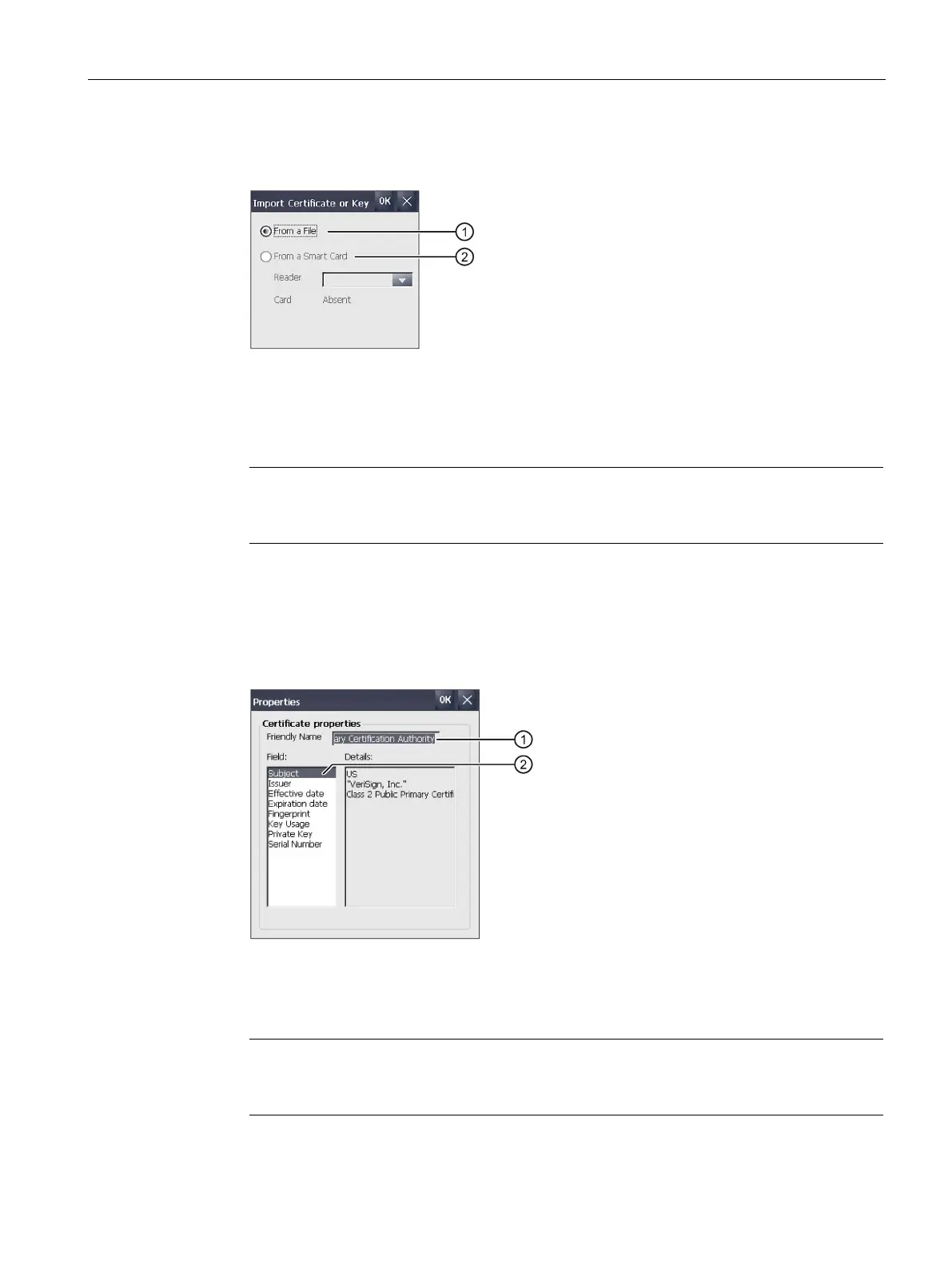

4. Use the "Import.." button to specify the source from which the certificate will be imported.
The following dialog appears:
①
Import from a file
②
Import from a smart card reader
5. Select "From a File" or "From a Smart Card" if a smart card reader is connected to the
HMI device.
Note
The Smart Card reader is not an approved source for importing certificates for the HMI
device.
6. Close the dialog with "OK".
7. In the subsequent file selection dialog, select the desired certificate on the USB flash
drive and confirm with "OK".
The certificate will be imported and displayed in the list on the "Stores" tab.
8. You can use the "View.." button to display the properties of a certificate.
①
Name of the selected certificate
②
Identity information and other properties of the selected certificate
9. You can use the "Remove" button to delete a certificate.
Note
The entry is deleted immediately and without further inquiry. If you want to agai
n use a
deleted certificate, you need to import it again from a storage medium.

Siemens SIMATIC HMI series Specifications

General

Series	SIMATIC HMI
Category	Control Panel
Display Type	TFT LCD
Touch Screen	Yes (resistive or capacitive, depending on model)
Processor	Varies by model (e.g., ARM-based processors)
Storage	Varies by model (e.g., Flash memory, microSD card slot)
Communication Interfaces	Ethernet, USB
Protection Class	IP65 (front panel), depending on model
Operating Temperature	0 to 50°C, -20 to 60°C
Power Supply	24 V DC
Memory	128 MB, 256 MB
